TECHNICAL DATA - CARBURETOR 73

21.1Basic setting

Carburetor type MIKUNI TM 24

Needle position 2nd position from top

Idle air adjusting screw

Open 3.5 turns

Main jet 210

Jet needle 5IPL43

Idling jet 20

Needle jet Q-O (454)

Throttle slide 2.5

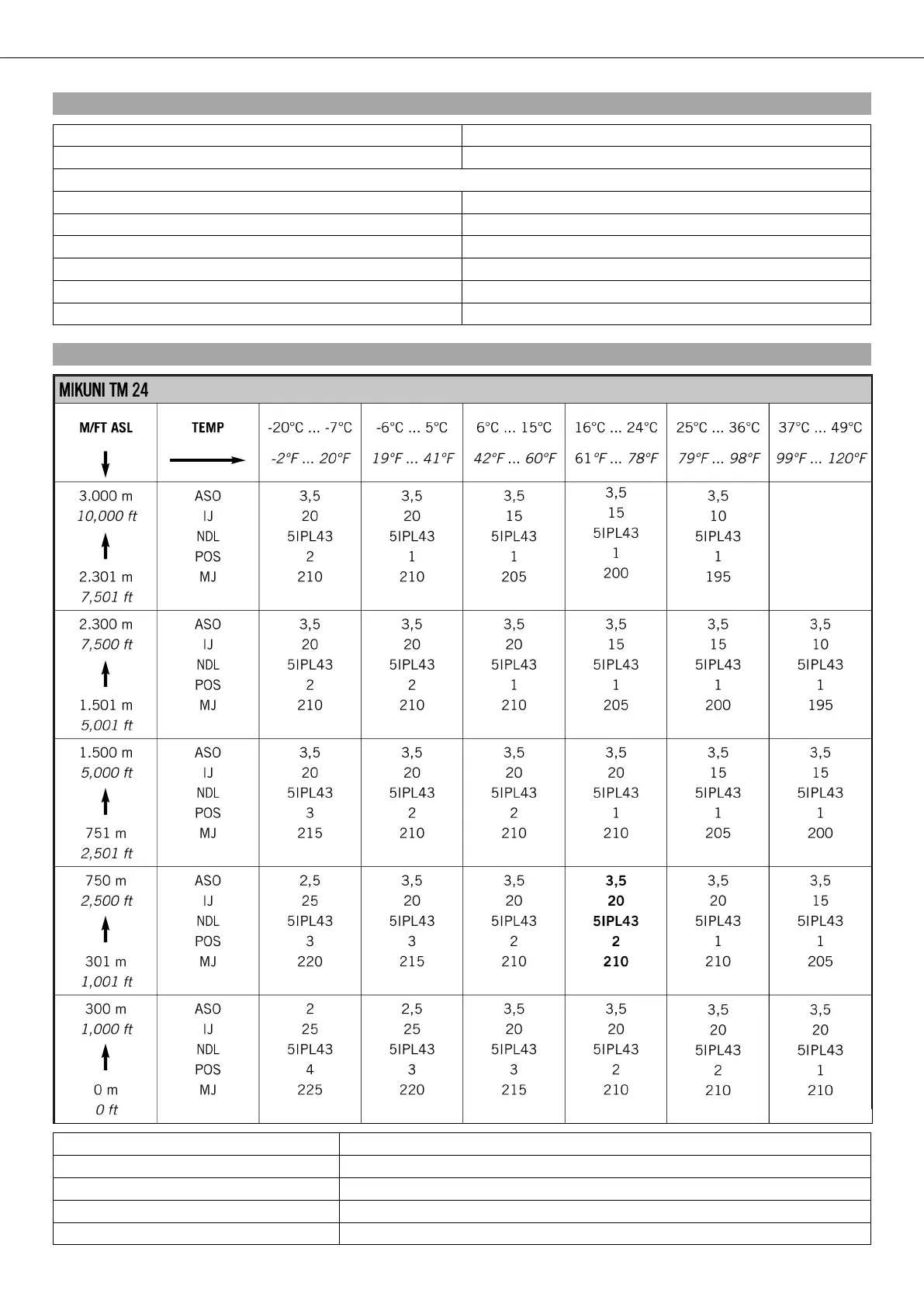

21.2Carburetor configuration

100810-01

M/FT ASL Above sea level

TEMP Temperature

ASO Idle air adjusting screw open (rotations)

IJ Idling jet

NDL Jet needle
