10 MOWER MOUNTING
ENGLISH
MOWER MOUNTING
ATTACHING THE MOWER
To avoid personal injury:
A Shut off the engine and remove the key before
attaching the mower.
BMounting the Mower Deck
1. Park the machine on level ground and place the
mower deck at the right side of the machine.
2. Set the anti-scalp rollers sideways. Turn the front
wheel to the left. Pull the hydraulic lift lever to raise
rear links.
3. Slide the mower deck under the machine, then return
wheels to straight ahead position.
4. Reset the front anti-scalp rollers to straight ahead
position (Refer to ADJUSTING CUTTING HEIGHT
section to set the anti-scalp rollers height.)
5. Place the hydraulic lift lever in the "DOWN" position.
Push down the rear links to align with the mower
bracket.
6. Release the L pins lock to attach the rear links to the
mower deck.

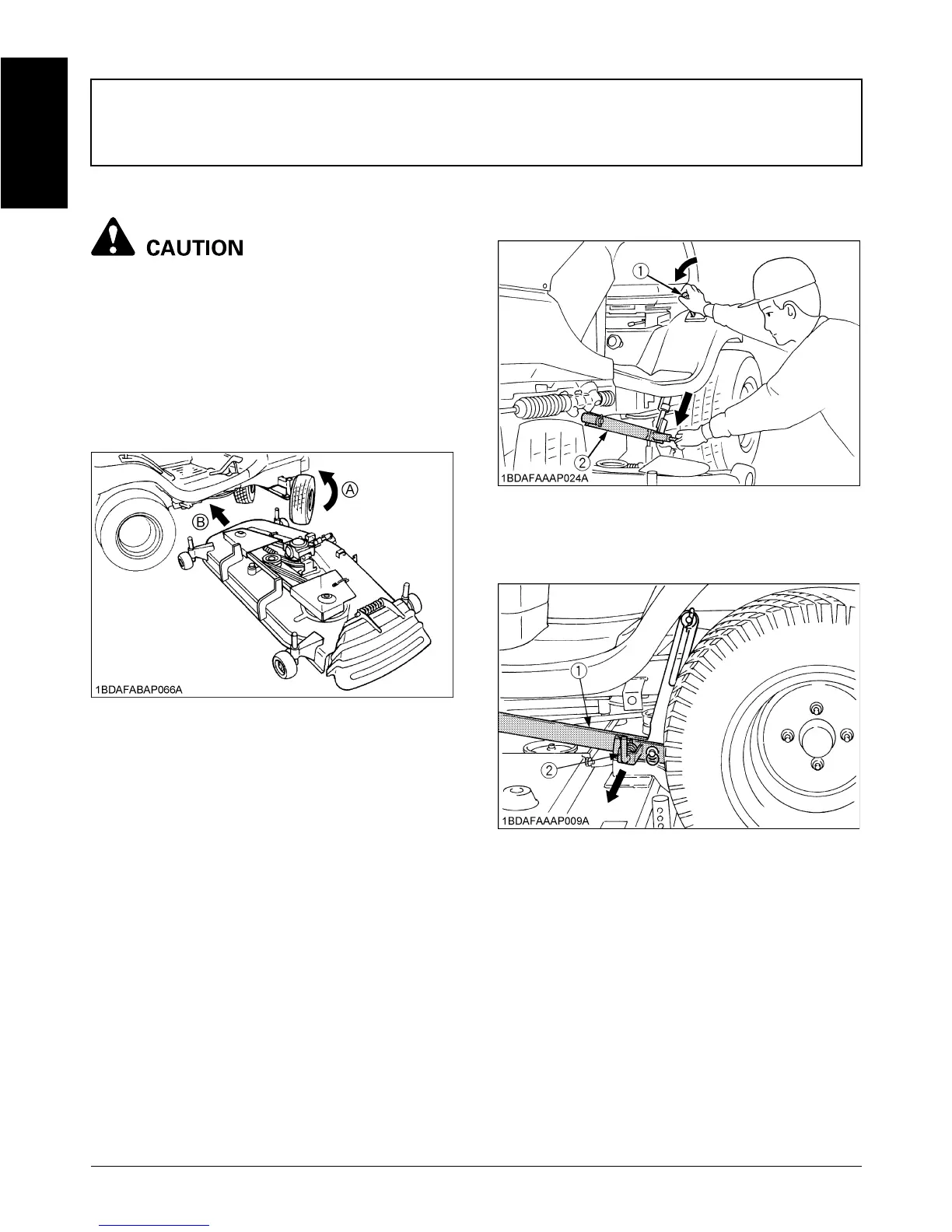

(A) "LEFT"
(B) "SLIDE"
(1) Hydraulic lift lever
(2) Mower's rear link
(1) Mower's rear link
(2) L pin
