13MOWER MOUNTING
ENGLISH

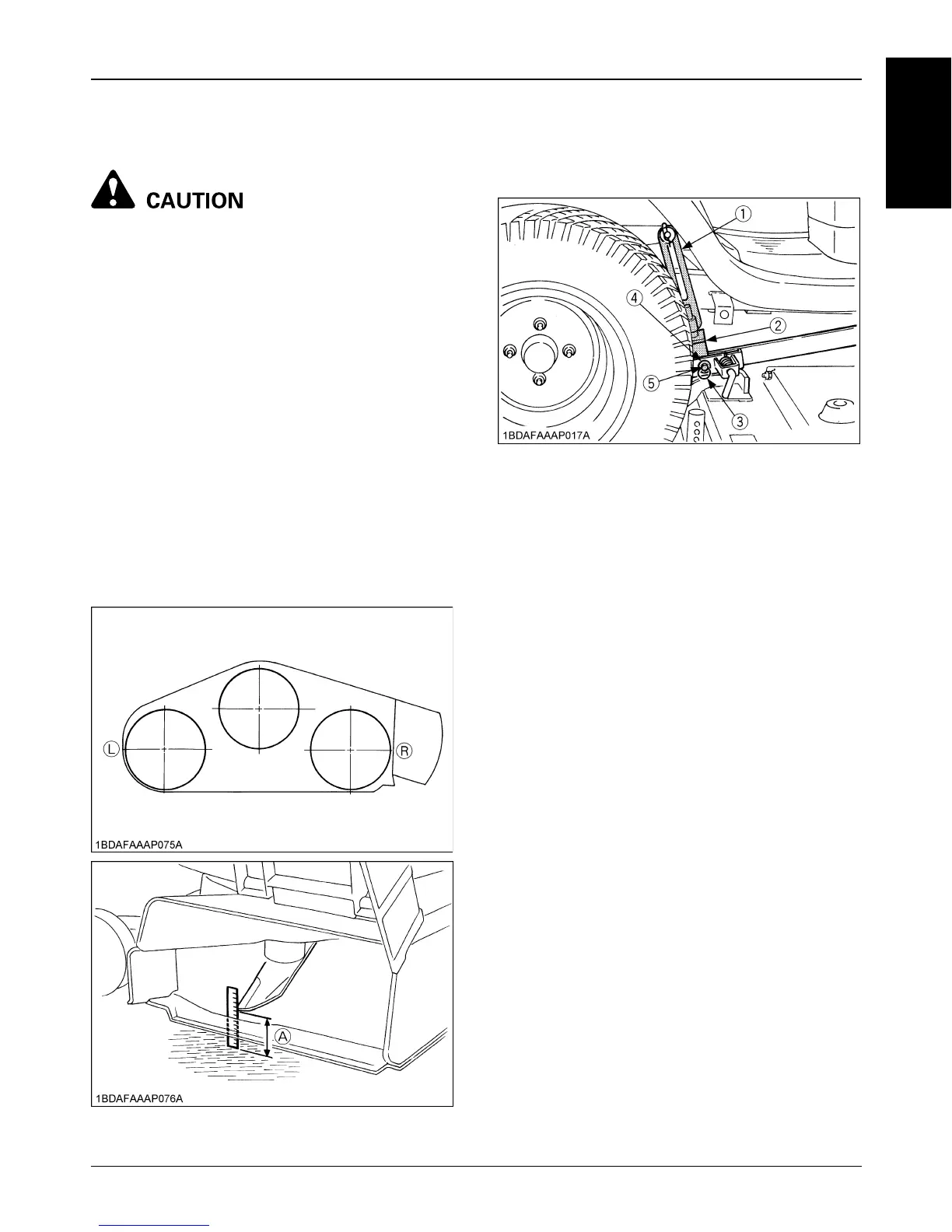

ADJUSTING THE MOWER DECK (SIDE-TO-
SIDE)
To avoid personal injury:
A Shut off the engine and remove the key.
A Set parking brake.
A Allow the blades to stop before making
adjustments.
A Blades may be sharp. When you handle blades,
wear heavy gloves or wrap end of blade with a
rag.
1. Park the machine on a level surface.
2. Tire inflation pressure must be correct.
(See "TIRE" section.)
3. Raise the hydraulic lift lever to the top position. Turn
the cutting height control dial to adjust height to the
desired height.
4. Lower the mower deck by pushing the hydraulic lift
lever forward.
5. Turn the left blade so that it is parallel to rear axle. Hold
drive belt and turn the right blade so that it is parallel
to axle.
6. Measure from each outside blade tip (L) to (R) to the
level surface. The difference between measurements
should be less than 3 mm.
7. Remove the snap ring, plain washer and clevis pin.
Adjust the lift link length so that the difference between
measurements (L) and (R) is less than 3 mm.
8. Reinstall the snap ring, plain washer and clevis pin.
(A) "MEASURE THE HEIGHT"
(1) Lift link (Upper)
(2) Lift link (Lower)
(3) Snap ring
(4) Plain washer
(5) Clevis pin
