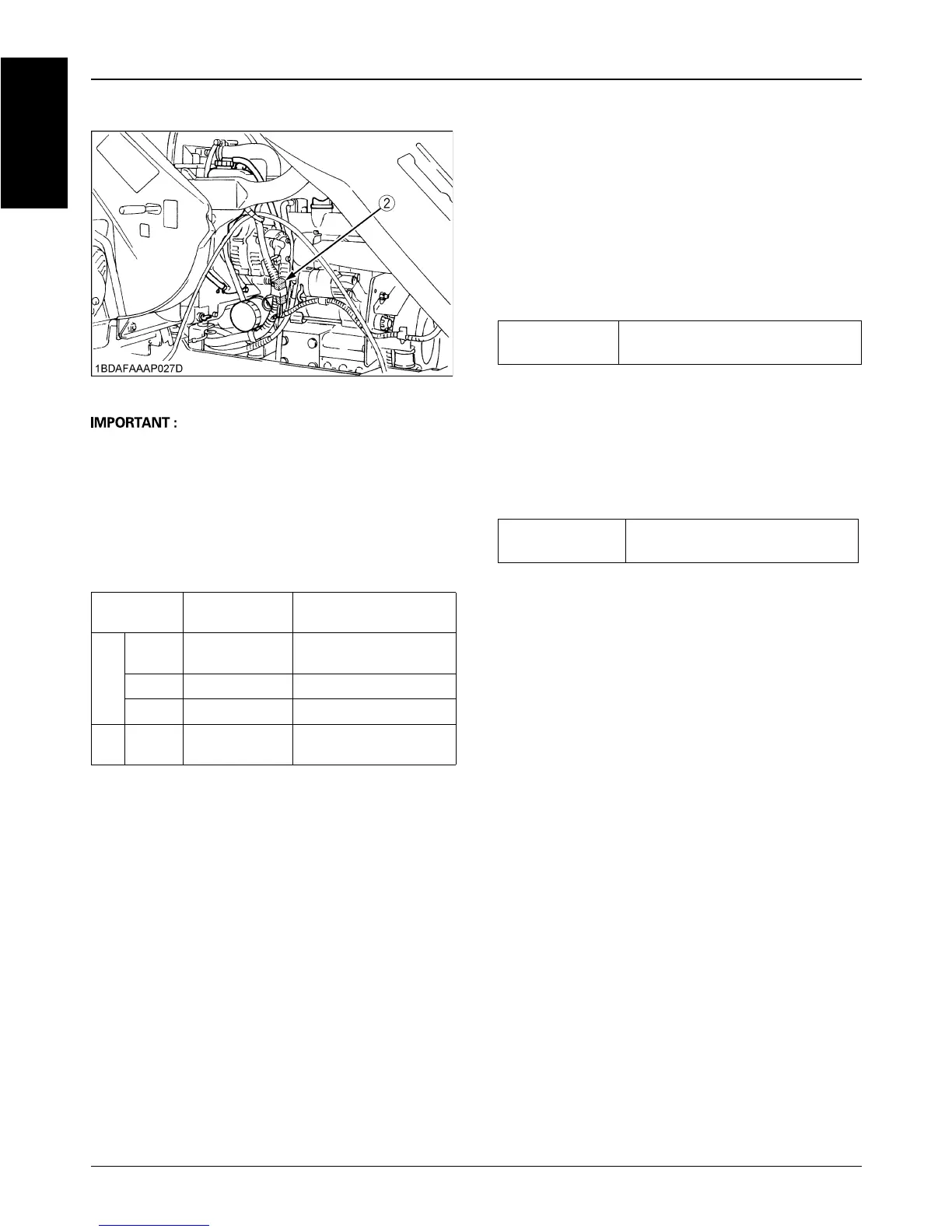

A If the new fuse happens to blow out within a short time,
contact your dealer for inspection and repair. Never
"jump" the fuse with wire or foil, etc.
a : Stamp or stick label "E/G STOP"
b : Stamp or stick label "IG/M"
c : Stamp or stick label "OPC"
C Protected circuit
BReplacing Bulbs
(A) Replacement of the headlight bulb
1. Open hood.
2. Turn bulb socket to remove socket from headlight
housing.
3. Push bulb down and turn 1 quarter turn to remove bulb
from the socket.
4. Install new bulb to the socket.
5. Install the socket in housing.
6. Close hood.
(B) Replacement of the Indicator light bulb
1. Open hood.
2. Turn bad bulb socket to the left.
And remove it.
3. Pull bulb from the socket.
4. Push new bulb into the socket.
5. Install the socket.
6. Close hood.
(2) Slow blow fuse
FUSE NO.
(ID LABEL)
CAPACITY
(A)
Protected circuit
(1)
E/G
STOP
15 Engine stop timer relay
IG/M 10 Fuel pump, Head light, etc.
OPC 3 Engine running circuit
(2) ---
Slow blow fuse
40
Check circuit against
wrong battery connection
Headlight bulb 12.8 Rated Voltage/1.04 AMP/
15 MSCP
Indicator light bulb 14.0 Rated Voltage/0.27 AMP/
2 MSCP
