MOWER MOUNTING12
ENGLISH

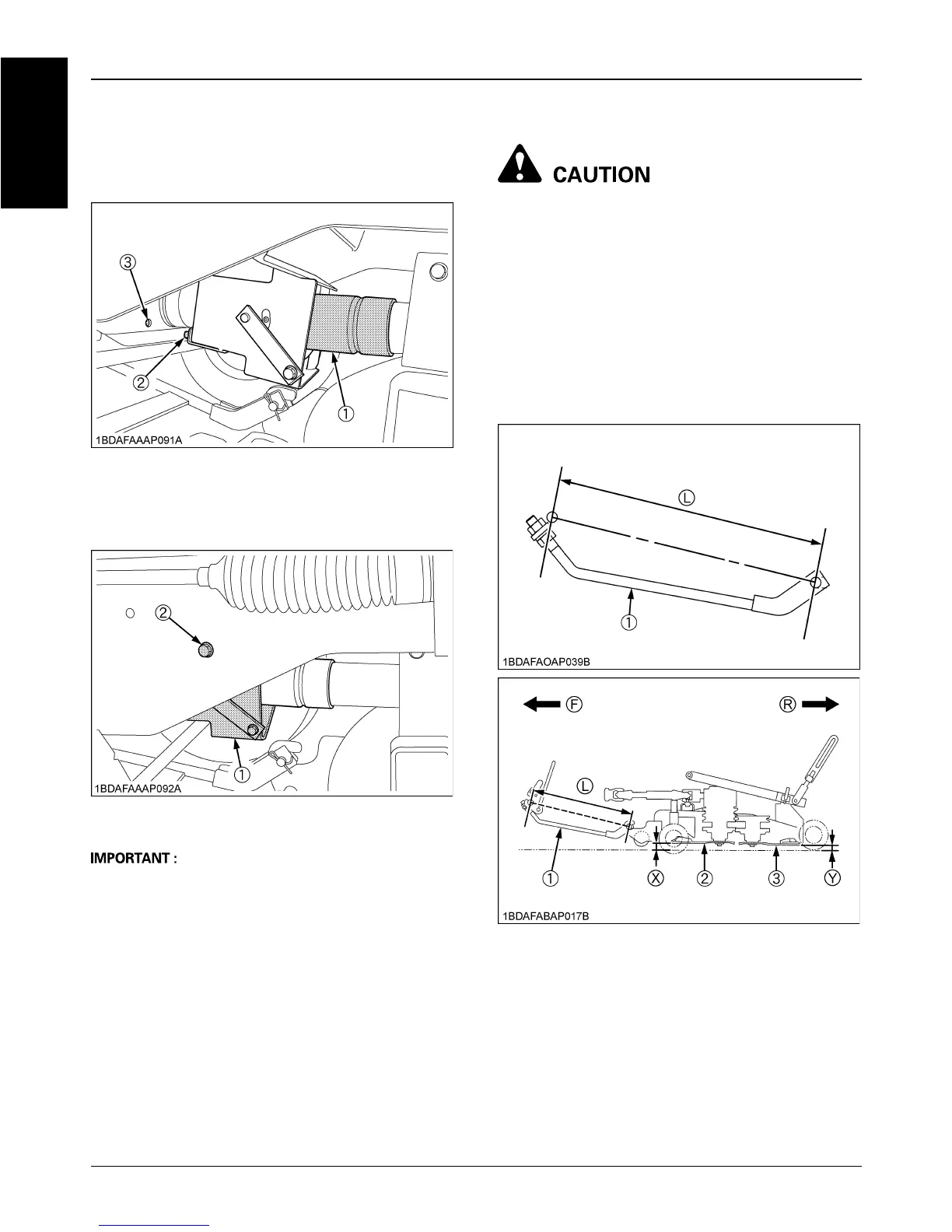

[Model with the universal joint cover]
12.Extend the universal joint cover to the coupler of the
universal joint, and then set the projection of the
universal joint cover to the hole of the frame.
13.Attach the stay to the frame with the bolt.
A Make sure to install the stay to the frame with the bolt.
ADJUSTING THE PARALLEL LINKAGE
To avoid personal injury:
A Shut off the engine and remove the key.
A Set parking brake.
A Allow the blades to stop before making
adjustments.
A Blades may be sharp, when you handle blades,
wear heavy gloves or wrap end of blade with
rag.
1. Park the machine on a level surface.
2. Make sure the mower blades are level in the way
mentioned below. Then tighten the lock nuts securely.
Adjust (L) of front links with lock nut so that A is 0 to 5
mm. A=(Y)-(X)
(1) Universal joint cover
(2) Projection (Universal joint cover)
(3) Hole (Frame)
(1) Stay (Universal joint cover)
(2) Bolt
(1) Front link
(2) Blade (front)
(3) Blade (rear)
(F) Front
(R) Rear
To Next Page
