PERIODIC SERVICE30
ENGLISH
BChecking Brake Pedal
To avoid personal injury:
A When making adjustments, park the machine
on a flat area, block wheels, stop engine and
remove the key.
Correct play ranges from 15 to 25 mm. If it is not correct,
loosen the lock nut (2) and turn the nut (3) in the desired
direction until the proper play is achieved. After
adjustment, retighten lock nut securely.
BChecking Fan Drive Belt Tension
To avoid personal injury:
A Be sure to stop the engine and remove the key
before checking belt tension.
If the fan drive belt becomes loose, the engine may
overheat. To adjust, loosen bolts and turn the alternator to
tighten the belt. After adjustment, securely tighten the
bolts.
Moderate belt tension:
The belt should deflect approx. 10 mm when the center of
the belt is depressed with finger pressure of 98N (10kgf).
A When replacing fan drive belt, be careful not to catch
it on the cap under the water pump. See the illustration
to the left.

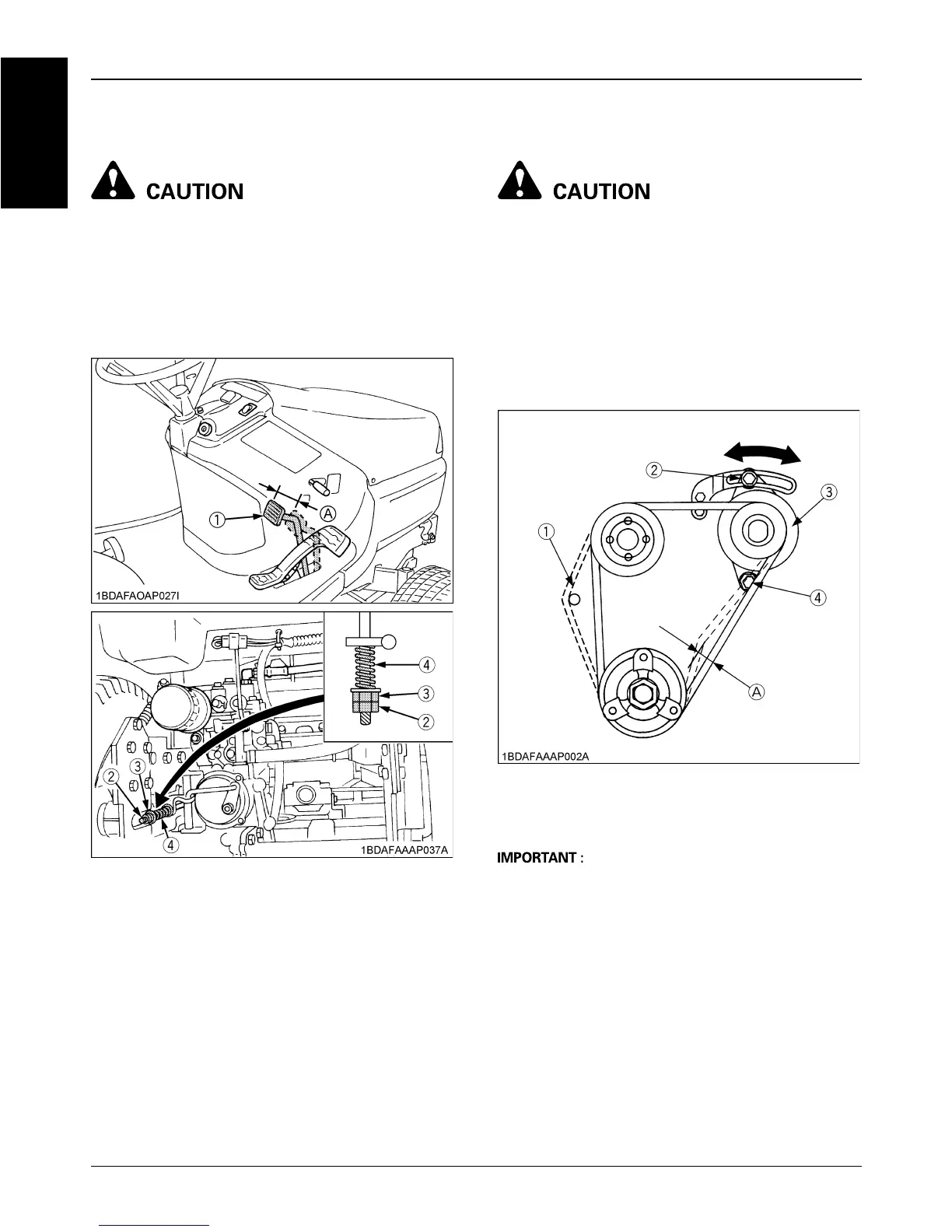

(1) Brake pedal
(2) Lock nut
(3) Nut
(4) Spring
(A) Play 15 to 25 mm
(1) Cap
(2) Tension bolt
(3) Alternator
(4) Adjusting bolt
(A) 10 mm
