86 HYDRAULIC UNIT
HYDRAULIC UNIT
The standard tractor has following hydraulic control
systems as shown below. Therefore, use the most
appropriate system for the implement you are using.
C 3-Point Hitch Control System
1. Position Control
2. Mixed Draft Control
C Remote Hydraulic Control System
A Do not operate until the engine is warmed up. If
operation is attempted when the engine is still cold, the
hydraulic system may be damaged.
A If noises are heard when implement is lifting after the
hydraulic control lever has been activated, the
hydraulic mechanism is not adjusted properly. Unless
corrected, the unit will be damaged. Contact your
KUBOTA Dealer for adjustment.
3-POINT HITCH CONTROL SYSTEM
To avoid personal injury or death:
A Before using the 3-point hitch controls, ensure
that no person or object is in the area of the
implement or 3-point hitch. Do not stand on or
near the implement or between the implement
and tractor when operating the 3-point hitch
controls.

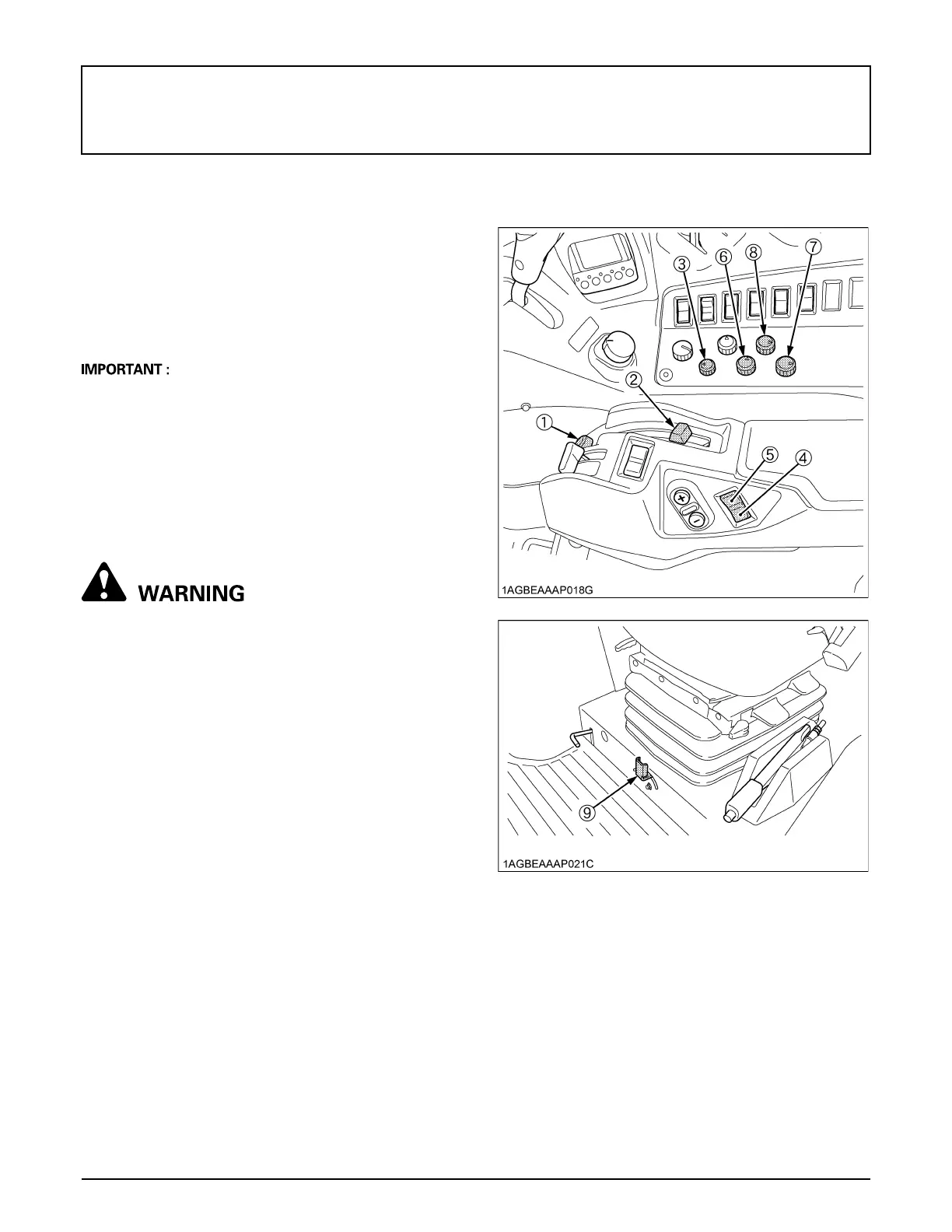

BTerminology
(1) Bottom limit control dial
(2) Hydraulic control lever
(3) Mode selector switch
(4) 3-P. Quick lower switch
(5) 3-P. Quick raise switch
(6) Draft ratio adjustment dial
(7) Lift arm top limit adjustment dial
(8) 3-point hitch lowering speed adjustment dial
(9) 3-point hitch lowering lock lever
