BReplacing Hydraulic Oil Filter
C Cleaning Magnetic Filter
To avoid personal injury or death:
A Be sure to stop the engine before changing the
oil filter cartridge.
A Allow engine to cool down sufficiently, oil can
be hot and can burn.

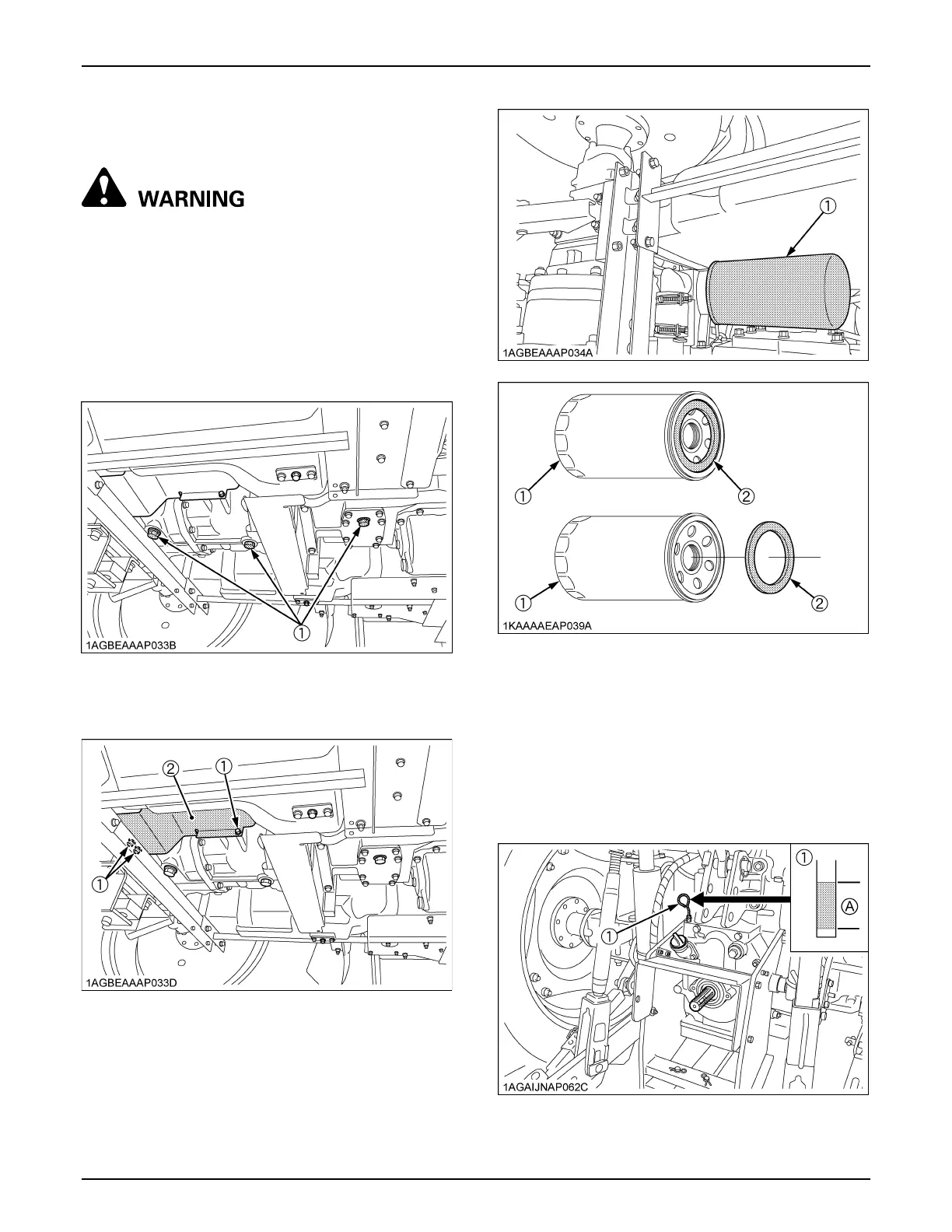

1. Remove the drain plug at the bottom of the
transmission case and drain the oil completely into an
oil pan.
2. After draining reinstall the drain plug.
3. Loosen 3 bolts and remove the cover.
4. Remove the oil filter.
5. Wipe off metal filings from the magnetic filter with a
clean rag.
6. Put a film of clean transmission oil on the rubber seal
of the new filter.
7. Tighten the filter quickly until it contacts the mounting
surface.
Tighten filter by hand an additional 1/2 turn only.
8. After the new filter has been replaced, fill the
transmission oil up to the upper notch on the dipstick.
(1) Drain plug
(1) Bolt
(2) Cover
(1) Hydraulic oil filter
(2) Magnetic filter (Wipe off metal filings)
(1) Dipstick (A) Oil level is acceptable within this range
