PERIODIC SERVICE130
C Checking the brake pedal stroke
1. Disengage the brake pedal lock.
2. Depress the brake pedal several times.
3. Step on the right-hand pedal and measure the level
difference (pedal stroke) between this pedal and the
left-hand pedal.
4. Do the same for the left-hand pedal.
C Checking the equalizer working level
(anti-imbalance device)
1. Gently step on both brake pedals at once.
2. Further step on the right-hand pedal (the left-hand
pedal slightly raises itself) and measure the level
difference between the pedals.
3. Do the same for the left-hand pedal.
BAdjusting Parking Brake Lever
To avoid personal injury or death:
A Stop the engine and chock the wheels before
checking parking brake.
1. Raise the parking brake lever to the parking position
while counting the ratchet sound made by the parking
brake lever.
2. If adjustment is needed, loosen the lock nut and adjust
the parking brake cable length with in acceptable limit.
3. Retighten the lock nut.

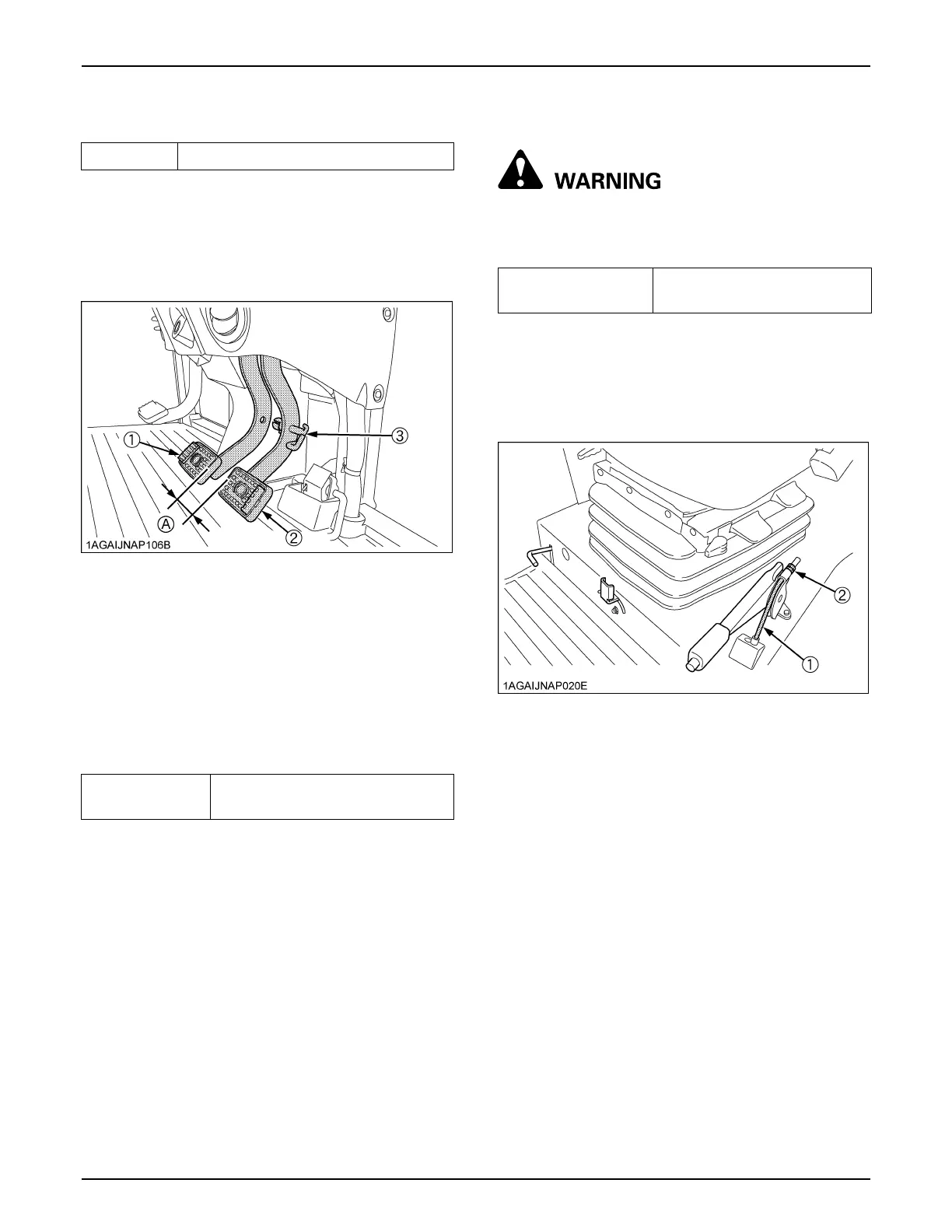

Pedal stroke Less than 100 mm (3.9 in.) at each pedal
(1) Brake pedal (LH)
(2) Brake pedal (RH)
(3) Brake pedal lock
(A) "PEDAL STROKE"
Equalizer working
level
Level difference of over 10 mm (0.4
in.) between both pedals
Proper parking brake
lever free travel
2 notches (Ratchet sound 2)
(1) Parking brake cable
(2) Lock nut
