HYDRAULIC UNIT88
BMixed Draft Control Mode
C Hydraulic control lever
This will control the pull of the 3-point implement. As the
load on the 3-point hitch changes due to various soil
conditions, the draft control system automatically
responds to these changes by either raising or lowering
the implement slightly to maintain a constant pull.
Set the implement pull with the hydraulic control lever.
C Draft ratio adjustment dial
Set the mode selector switch to the "DRAFT" position.
Turn the draft ratio adjustment dial to adjust to specific
application requirement. Make settings according to the
guidelines below.
Draft ratio adjustment dial
A The plowing depth may be affected when the draft
ratio adjustment dial is used. Finally use the hydraulic
control lever to readjust the plowing depth.
BFloat Control
Place the hydraulic control lever in the float position to
make the lower links move freely along with the ground
conditions.
NOTE: (Handling the hydraulic control lever)
A After the engine has stopped, set the key switch to the
"ON" position and lower the hydraulic control lever.
Now the implement goes down.
(The implement does not go down if the position lock
is activated. See "3-Point Hitch's Position Lock" in this
section.)

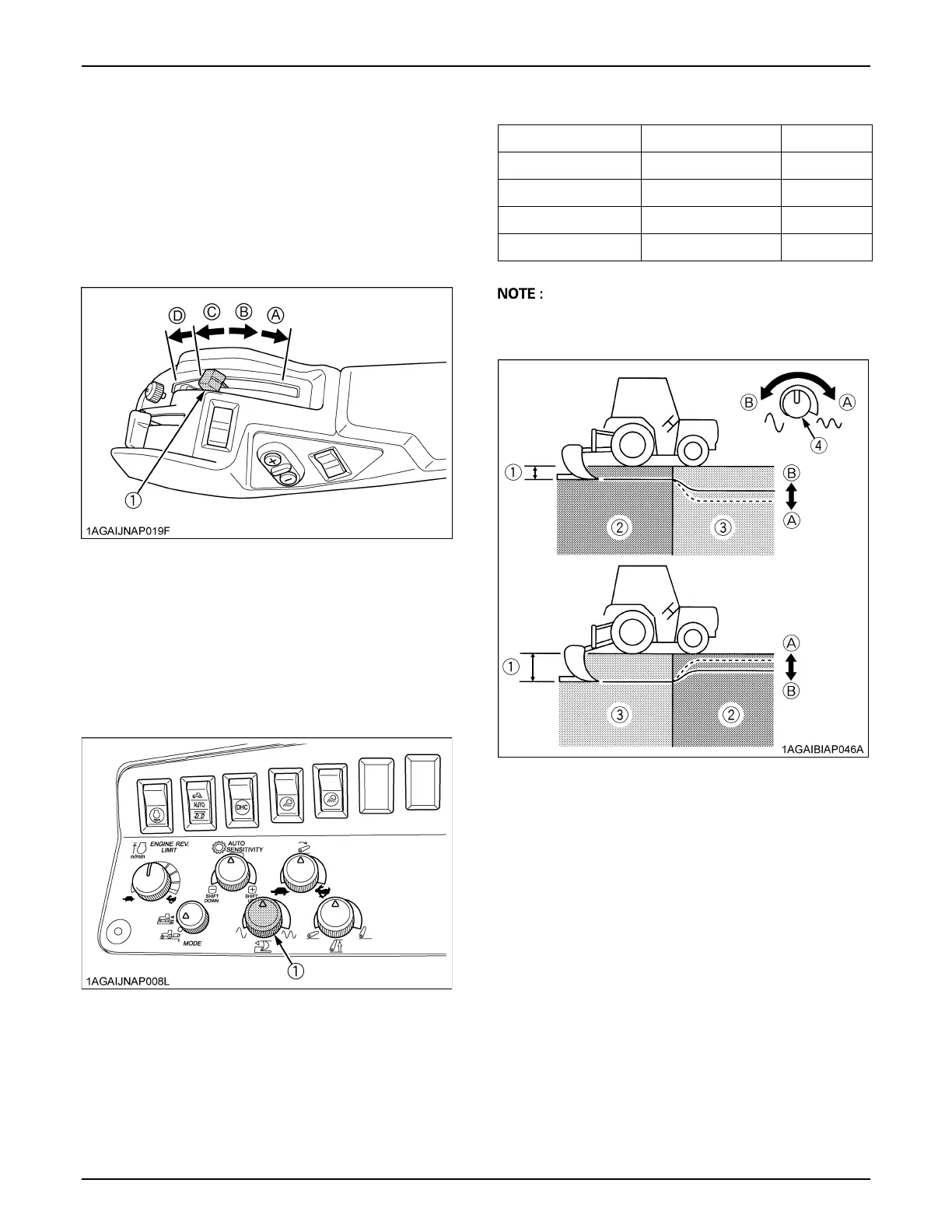

(1) Hydraulic control lever (A) "UP"
(B) "SHALLOW"
(C) "DEEP"
(D) "FLOAT"
(1) Draft ratio adjustment dial
(Counterclockwise) (Clockwise)
Plowing depth Shallow Deep
Type of soil Light Heavy
Field (ruggedness) Little Much
(Sensitivity) (Low) (High)
(1) Plowing depth setting
(2) Heavy soil
(3) Light soil
(4) Draft ratio adjustment dial
(A) "CLOCKWISE"
(B) "COUNTERCLOCKWISE"
