2-M5
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION

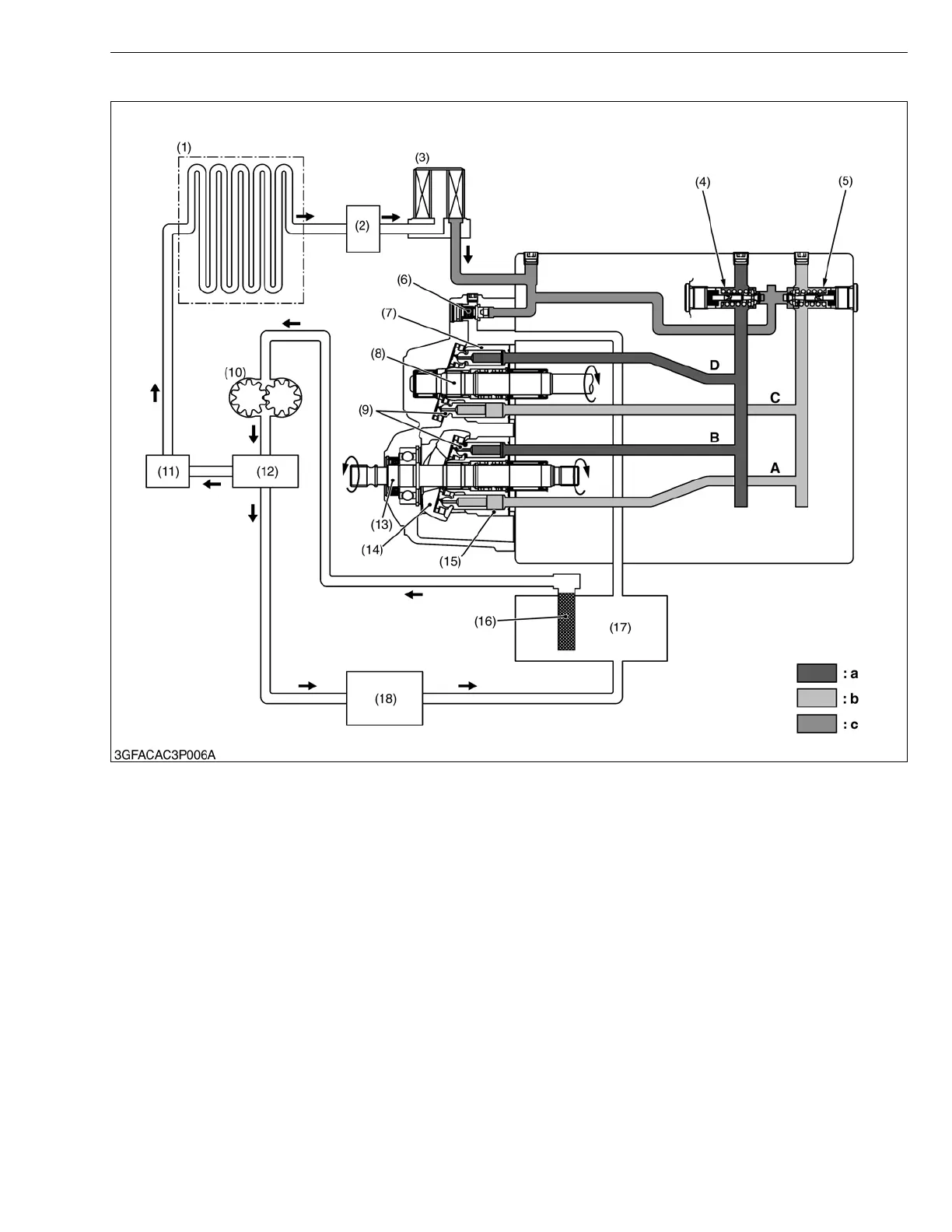

â– Forward
When the speed control pedal is stepped on and in forward, the swashplate (14) is tilted as shown in the figure
above.
As the pump cylinder block (15) rotates with the pump shaft (13), oil is forced out of pump port B at high pressure.
As the pressure oil enters motor port D, the pistons, which align with port D, are pushed against the inclined thrust
plate slide down the inclined surface.
Then the motor shaft (8) rotates with the motor cylinder block (7). This drives the machine forward and the angle
of swashplate (14) determines the motor shaft speed.
(1) Oil Cooler
(2) PTO Charge Relief Valve
(3) Oil Filter Cartridge
(4) Check and High Pressure
Relief Valve (Forward)
(5) Check and High Pressure
Relief Valve (Reverse)
(6) Charge Relief Valve
(7) Cylinder Block (Motor)
(8) Motor Shaft
(9) Piston
(10) Hydraulic Pump
(11) Power Steering Controller
(12) Flow Priority Valve
(13) Pump Shaft
(14) Swashplate
(15) Cylinder Block (Pump)
(16) Oil Strainer
(17) Transmission Case
(18) Implement Control Valve
A : Port A
B : Port B
C : Port C
D : Port D
a : High Pressure
b : Low Pressure
c : Charge Pressure
To Next Page
