G-25
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
G GENERAL
[4] CHECK POINTS OF EVERY 100 HOURS
Changing Engine Oil
1. See page G-13.
W1043451

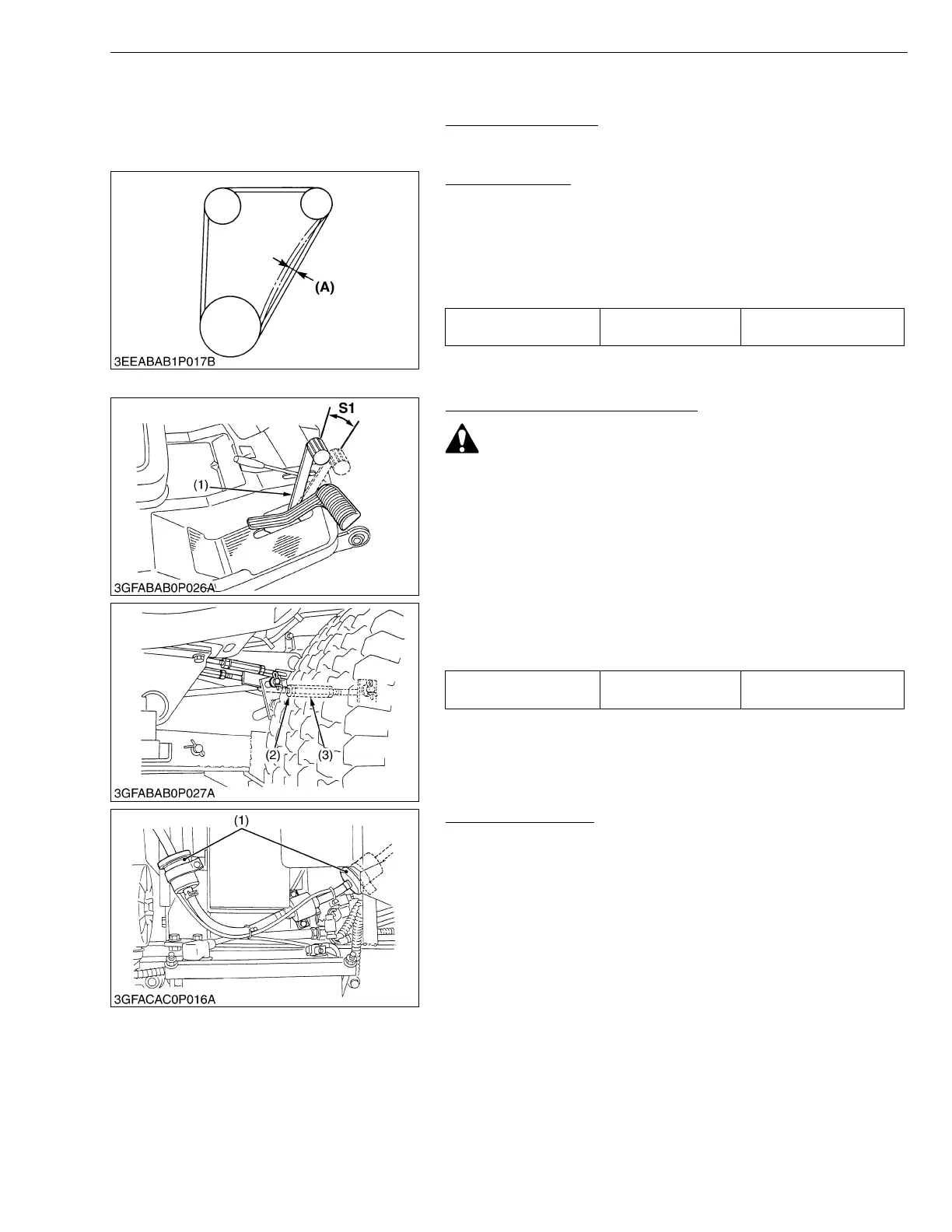

Fan Belt Tension
1. Measure the deflection (A), depressing the belt halfway between
the fan drive pulley and alternator pulley at specified force 98 N
(10 kgf, 22 lbs).
2. If the measurement is not within the factory specifications, loosen
the alternator mounting screws and relocate the alternator to
adjust.
W10356670
Adjusting Brake Pedal Free Travel
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
■
• If turn assist brake device and speed set device are
attached, see the instruction manuals.
1. Release the parking brake.
2. Slightly depress the main brake pedal and measure free travel
“S1” at top of pedal stroke.
3. If adjustment is needed, loosen the lock nut (2) and turn the
turnbuckle (3) to adjust the rod length within acceptable limits.
4. Retighten the lock nut.
W1045829
Checking Fuel Filter
1. Checking the fuel filter (1) for the impurities and water.
2. If the impurities or water have collected in the fuel filter, replace
the fuel filter.
W1043576
Deflection (A) Factory spec.
7.0 to 9.0 mm
0.28 to 0.35 in.
(A) Deflection
Main brake pedal free
travel (S1)
Factory spec.
20 to 40 mm
0.8 to 1.6 in.
(1) Main Brake Pedal
(2) Lock Nut
(3) Turnbuckle
S1 : Free Travel
(1) Fuel Filter
