Mower Tilt Up (Continued)

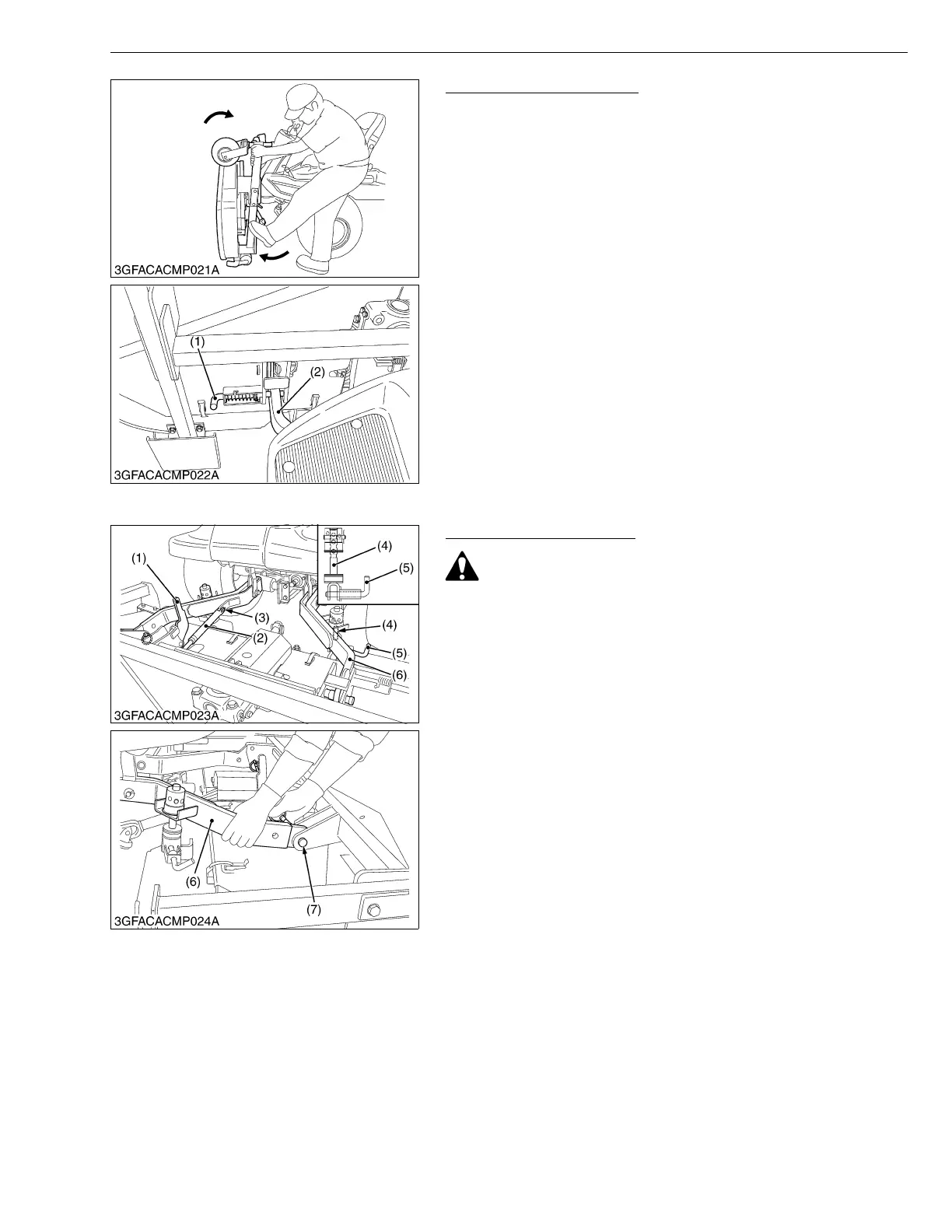

1. Pull up the mower deck as shown in the figure.
2. Lock the tilting pin (1) to the mower lift arm (2).
W1021734
(2) Dismounting Mower
Dismounting Mower Deck
CAUTION
• Before dismounting or mounting the mower deck, read and
understand how to use of the lowering speed adjusting
knob.
• The mower links (left hand, right hand) are spring-loaded.
Have an assistant hold the lift arm in position when
mounting and dismounting mower deck.
1. Place the PTO lever in the “DISENGAGE” position.
2. Place the High-Low gear shift lever in the “NEUTRAL” position.
3. Disconnect the universal joint from the machine.
4. Start the engine and raise the mower deck fully.
5. [RCK72-F36 / RCK72R-F36]
Unlock the tilt lever (1) with the tilt pipe.
Remove the clevis pin (3), and disconnect the gas spring (2) from
the mower lift arm (6).
6. Shut off the engine, pull the lock pins (4) of the lift rods (4) and
lock them in the open position.
7. Start the engine and down the mower deck fully, and shut off the
engine.
8. Remove the clevis pins (7), and disconnect the mower lift arms
(6) from mower deck.
W1016795
(1) Tilting Pin (2) Mower Lift Arm
(1) Tilt Lever
(2) Gas Spring
(3) Clevis Pin
(4) Lift Rod
(5) Lock Pin
(6) Mower Lift Arm
(7) Clevis Pin
