2-M17
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION

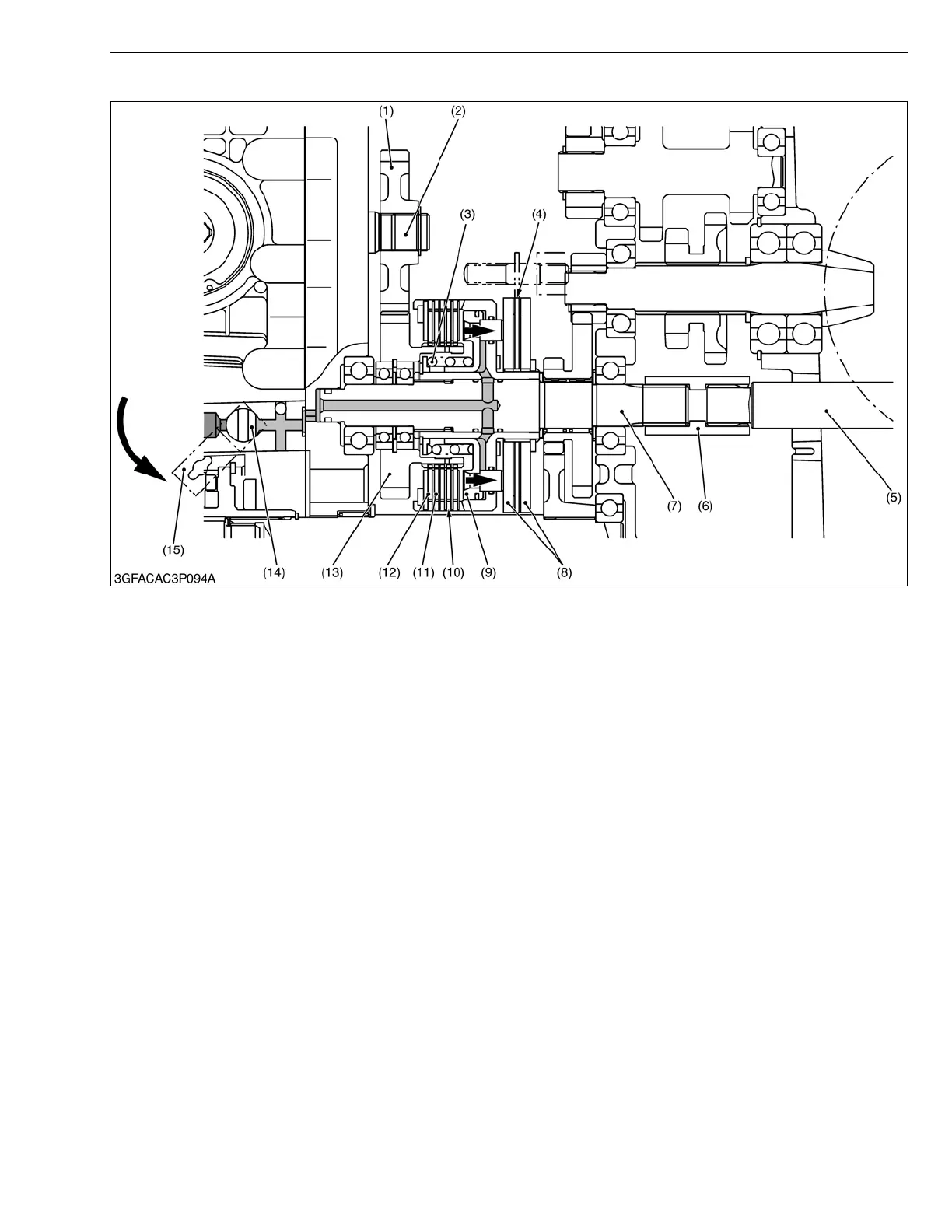

■ PTO “Disengage”
When the PTO lever is set to “DISENGAGE” position, the oil passage is closed by the PTO control valve (14).
The piston (9) is pushed against the PTO brake plates (8) and PTO brake disc (4), which creates clearance between
the steel plates (10) and clutch discs (11), causing no friction. At the same time, the PTO brake disc (4) is held
between the PTO brake plates (8), causing friction. Therefore, the power to the implement is shut off and brake
engages to prevent the PTO shaft (5) from the free-spinning.
(1) 28T Gear
(2) Pump Shaft
(3) Return Spring
(4) PTO Brake Disc
(5) PTO Shaft
(6) Coupling
(7) Clutch Shaft
(8) PTO Brake Plate
(9) Piston
(10) Steel Plate
(11) Clutch Disc
(12) Pressure Plate
(13) 33T Gear
(14) PTO Control Valve
(15) Valve Lever
To Next Page
