5-M1
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
REAR AXLE
1. STRUCTURE

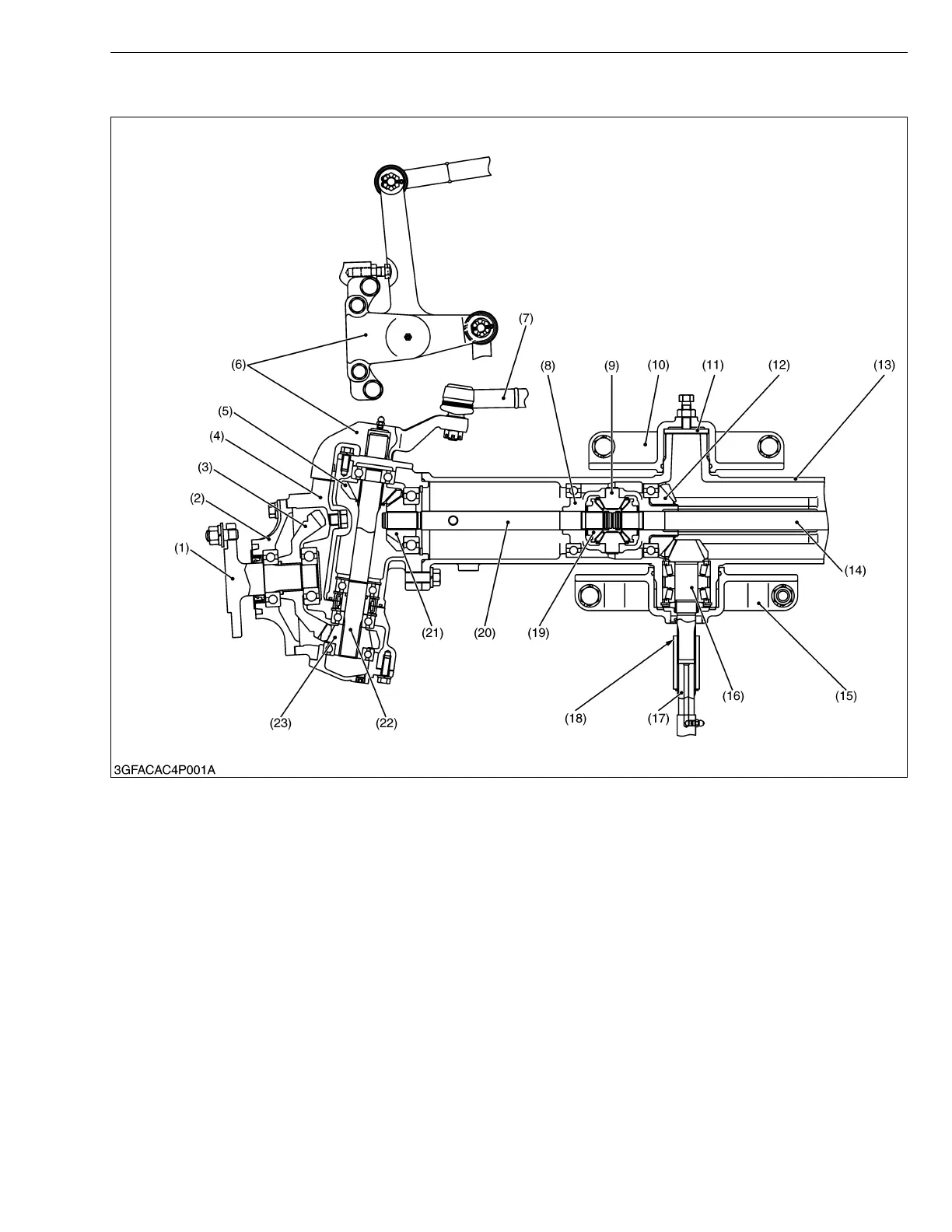

The rear axle of 4WD is constructed as shown above. Power is transmitted from the transmission through the rear
wheel drive shaft (17) to the bevel pinion shaft (16), then to the bevel gear (12) and to the differential gear assembly
(8).
The power through the differential side gear (19) is transmitted to the differential yoke shaft (20), and to the bevel
gear shaft (22) through the bevel gears (21), (5) in the rear axle gear case (4).
The revolution is greatly reduced by the bevel gears (23), (3), then the power is transmitted to the rear wheel hub
(1).
The differential system allows each wheel to rotate at a different speed to make turning easier.
(1) Rear Wheel Hub
(2) Rear Axle Cover
(3) Bevel Gear
(4) Rear Axle Gear Case
(5) Bevel Gear
(6) Knuckle Arm
(7) Tie-Rod
(8) Differential Gear Assembly
(9) Differential Pinion Gear
(10) Rear Axle Bracket (Rear)
(11) Thrust Collar
(12) Bevel Gear
(13) Differential Gear Case
(14) Differential Yoke Shaft (Left)
(15) Rear Axle Bracket (Front)
(16) Bevel Pinion Shaft
(17) Rear Wheel Drive Shaft
(18) Coupling
(19) Differential Side Gear
(20) Differential Yoke Shaft (Right)
(21) Bevel Gear
(22) Bevel Gear Shaft
(23) Bevel Gear
