REAR AXLE

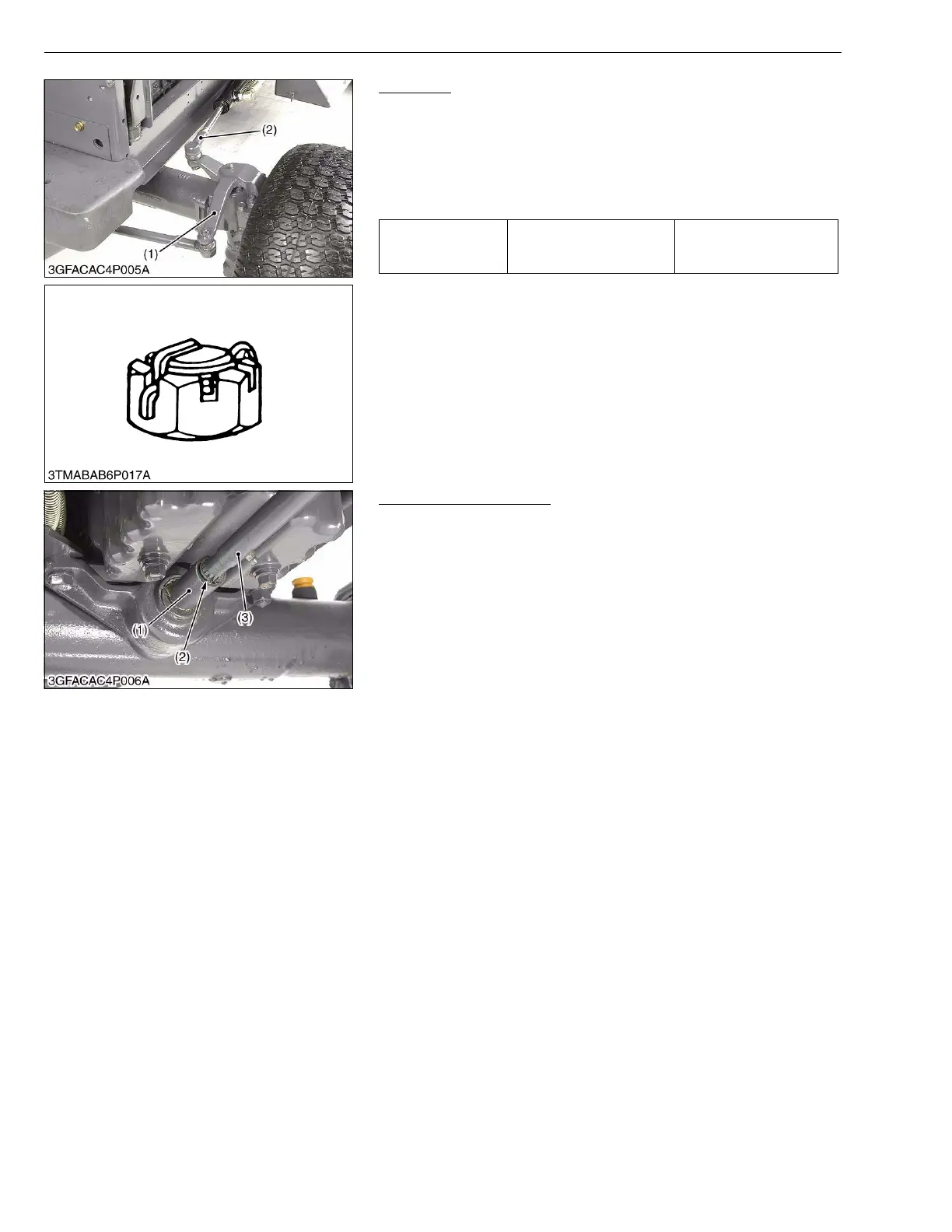

Drag Link
1. Remove the slotted nut and disconnect the drag link (2) from the
knuckle arm (1).
(When reassembling)
IMPORTANT
■
• After tightening the slotted nut to the specified torque,
install the cotter pin as shown in the figure.
W1012134
Rear Wheel Drive Shaft
1. Slide the external snap rings (2) and couplings (1).
2. Remove the rear wheel drive shaft (3).
(When reassembling)
• Apply grease to the all splines.
IMPORTANT
■
• If the external snap rings are defective, replace them.
• Securely fit the external snap rings (2) of the rear wheel drive
shaft.
W1012268
Tightening torque Slotted nut
17.7 to 34.3 N·m
1.8 to 3.5 kgf·m
13.0 to 25.3 ft-lbs
(1) Knuckle Arm (2) Drag Link
(1) Coupling
(2) External Snap Ring
(3) Rear Wheel Drive Shaft
