5-S9
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
REAR AXLE

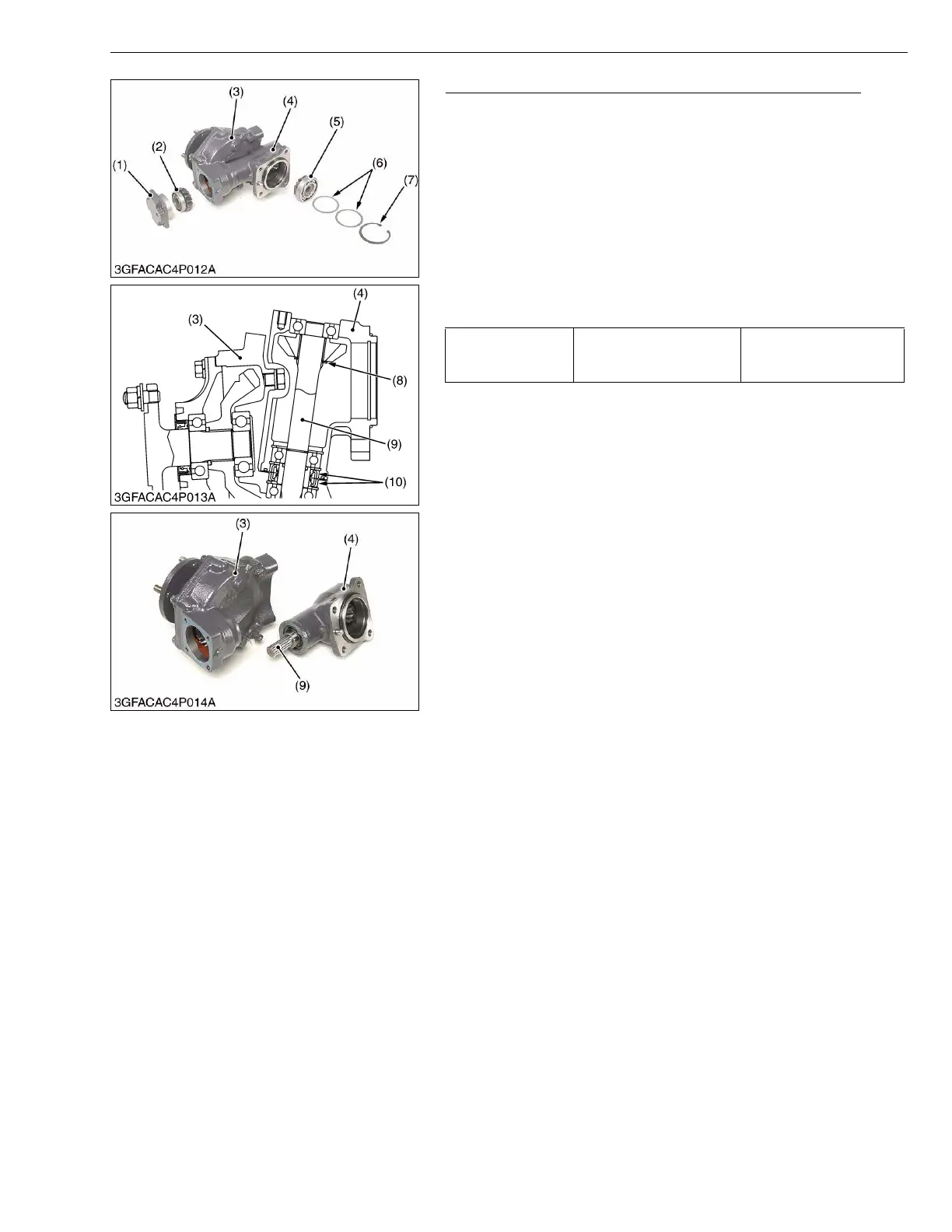

Separation of Bevel Gear Case and Rear Axle Gear Case
1. Remove the internal snap ring (7) and shims (6), and remove the
bevel gear (5) with the bearing.
2. Shift the external snap ring (8).
3. Remove the bevel support cover (1).
4. Tap out the bevel gear shaft (9) upward, and separate the bevel
gear case (4) from the rear axle gear case (3).
(When reassembling)
• Apply grease to the lip of oil seals (10).
• Apply liquid gasket (Three Bond 1208D or its equivalent) to both
side of a new gasket.
• Install the bevel gear (5) with the bearing, noting the number of
shims.
W1019233
Tightening torque
Bevel support cover
mounting screw
18.7 to 32.3 N·m
1.9 to 3.3 kgf·m
13.8 to 23.8 ft-lbs
(1) Bevel Support Cover
(2) Bevel Gear
(3) Rear Axle Gear Case
(4) Bevel Gear Case
(5) Bevel Gear
(6) Shim
(7) Internal Snap Ring
(8) External Snap Ring
(9) Bevel Gear Shaft
(10) Oil Seal
To Next Page
