8-S12
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
ELECTRICAL SYSTEM

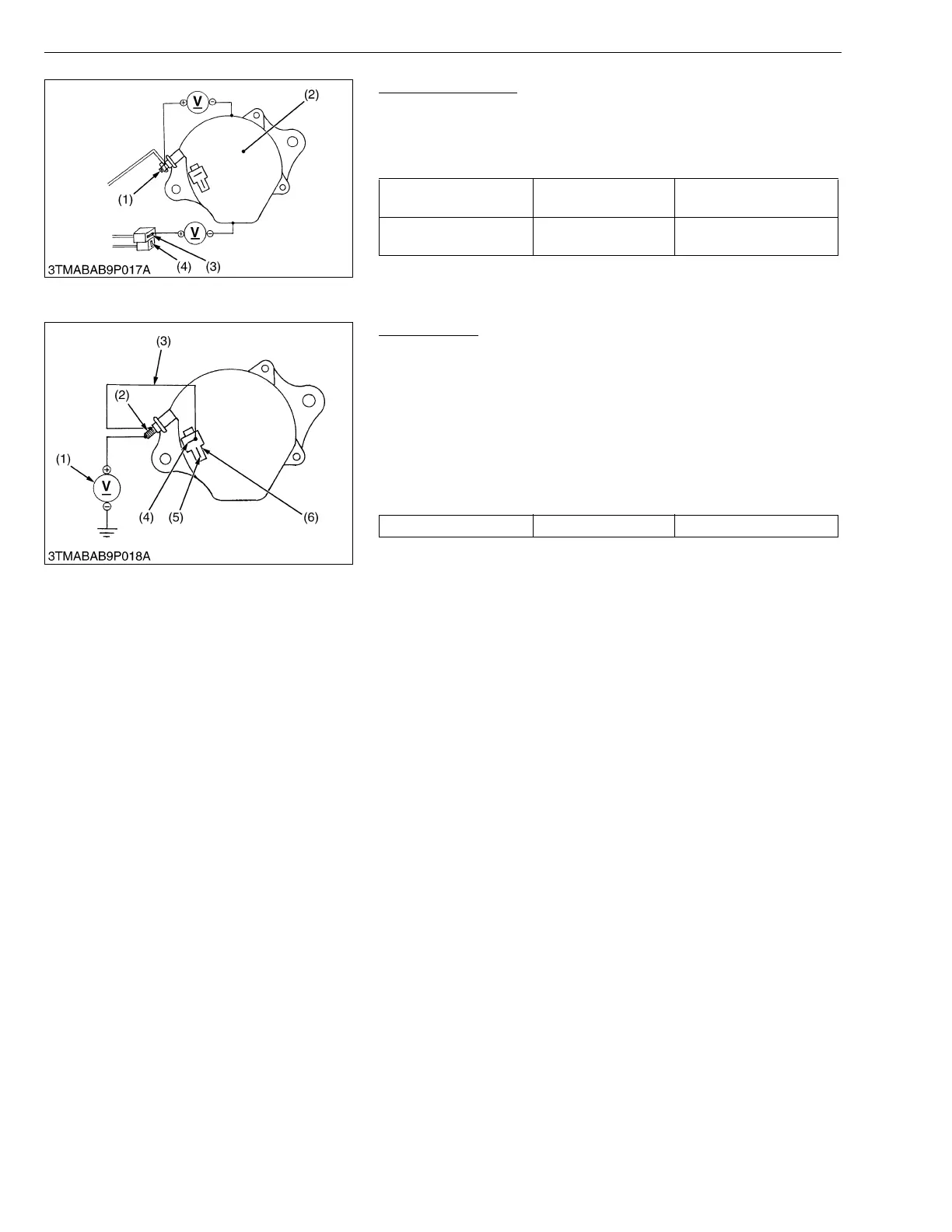

Connector Voltage
1. Turn the main switch OFF. Measure the voltage between the B
terminal (1) and the chassis.
2. Turn the main switch ON. Measure the voltage between the IG
terminal (3) and the chassis.
W1016886
No-Load Test
1. Connect the 2P connector (6) to previous positions of the
alternator after turning the main switch OFF.
2. Connect the jumper lead (3) between IG terminal (4) and B
terminal (2).
3. Start the engine and then set the idling speed.
4. Disconnect the negative cable from the battery.
5. Measure the voltage between the B terminal (2) and the chassis.
6. If the measurement is less than the factory specification,
disassemble the alternator and check the IC regulator.
(Reference)
• Once the engine has started, the alternator temperature rises
quickly up to an ambient temperature of 70 to 90 °C (158 to 194
°F). As the temperature goes higher than 50 °C (122 °F), the
alternator voltage slowly drops ; at higher than 100 °C (212 °F),
it drops by about 1 V.
W1017026
Voltage
(Main switch at OFF)
B Terminal - Chassis Approx. battery voltage
Voltage
(Main switch at ON)
IG Terminal - Chassis Approx. battery voltage
(1) B Terminal
(2) Alternator
(3) IG Terminal
(4) L Terminal
Voltage Factory spec. Plus de 14 V
(1) Voltmeter
(2) B Terminal
(3) Connecting Lead
(4) IG Terminal
(5) L Terminal
(6) 2P Connector
To Next Page
