8-S18
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
ELECTRICAL SYSTEM

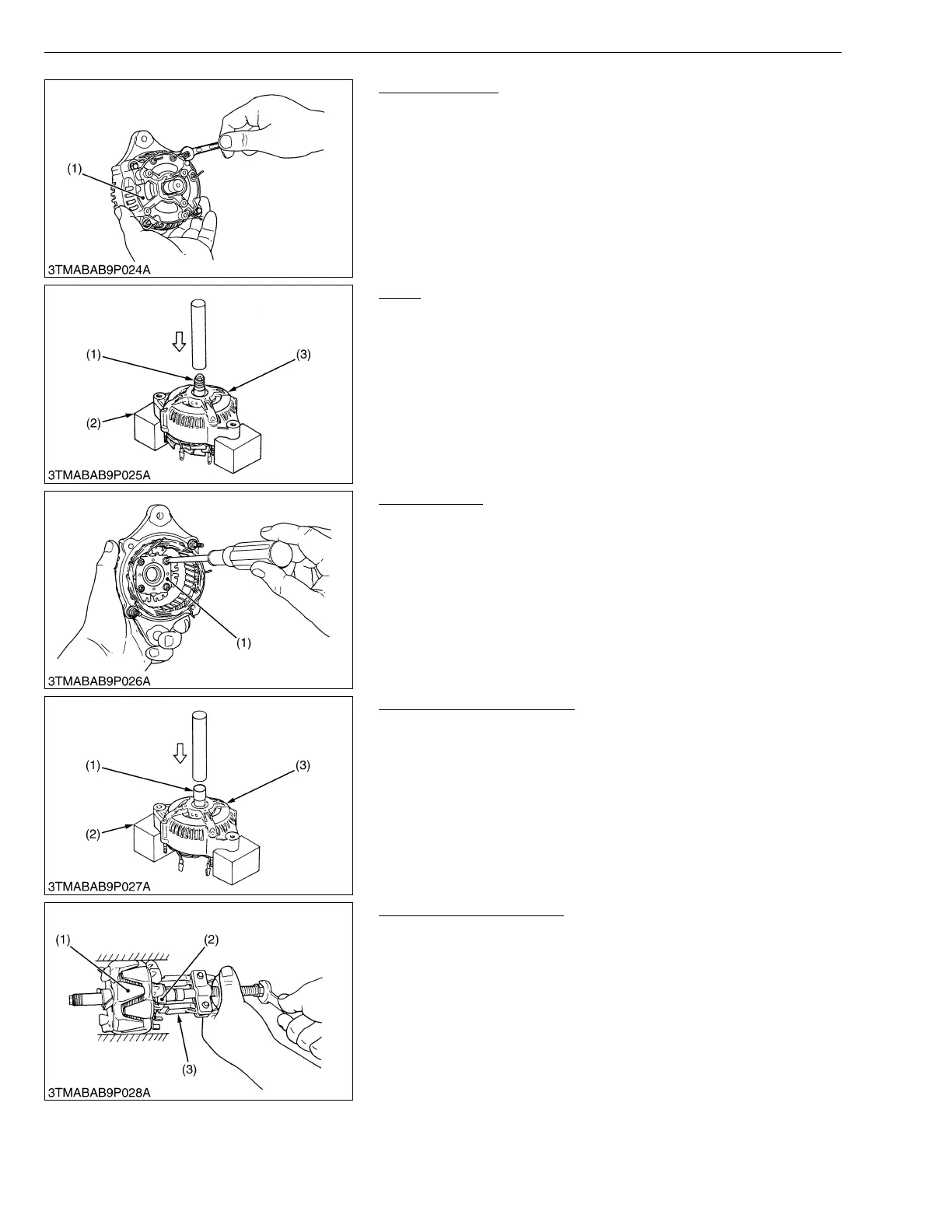

Rear End Frame
1. Unscrew the two nuts and two screws holding the drive end
frame and the rear end frame.
2. Remove the rear end frame (1).
W10192740
Rotor
1. Press out the rotor (1) from drive end frame (3).
IMPORTANT
■
• Take special care not to drop the rotor and damage the slip
ring or fan, etc.
W10194380
Retainer Plate
1. Unscrew the four screws holding the retainer plate, and remove
the retainer plate (1).
W10195420
Bearing on Drive End Side
1. Press out the bearing from drive end frame (3) with a press and
jig (1).
W10196110
Bearing at Slip Ring Side
1. Lightly secure the rotor (1) with a vise to prevent damage, and
remove the bearing (2) with a puller (3).
W10197010
(1) Rear End Frame
(1) Rotor
(2) Block
(3) Drive End Frame
(1) Retainer Plate
(1) Jig
(2) Block
(3) Drive End Frame
(1) Rotor
(2) Bearing
(3) Puller
KiSC issued 04, 2006 A
