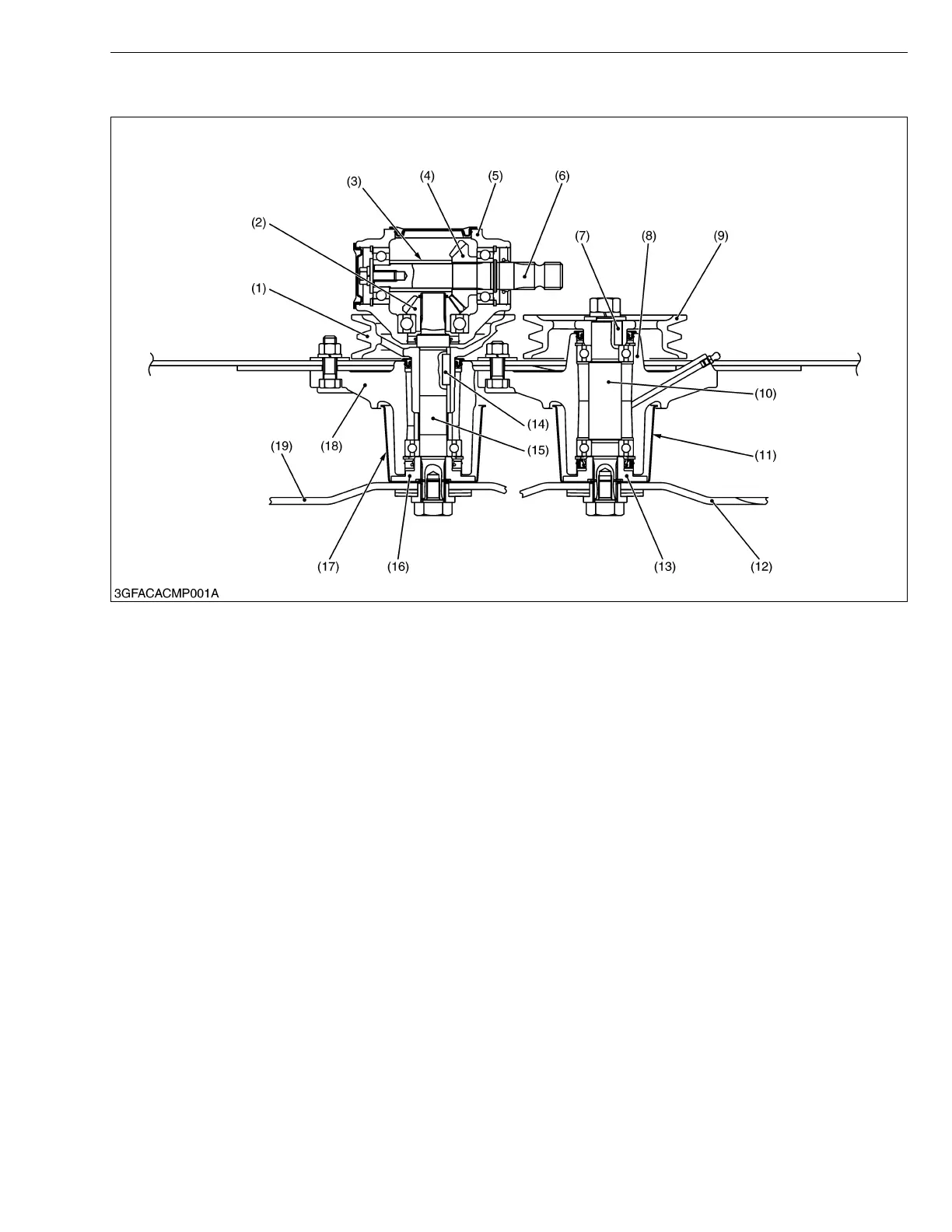

1. POWER TRANSMISSION
The power is transmitted from front PTO to blade as follows.
■ Blade (Center)
Front PTO Shaft → Universal Joint → Pinion Shaft (6) → Bevel Gear (4) → Bevel Gear (2) → Bevel Gear Shaft
(15) → Blade (Center) (19)
■ Blade (Side)
Front PTO Shaft → Universal Joint → Pinion Shaft (6) → Bevel Gear (4) → Bevel Gear (2) → Bevel Gear Shaft
(15) → Center Pulley (1) → Mower Belt → Side Pulley (8) → Blade Shaft (10) → Blade (Side) (12)
(1) Center Pulley
(2) Bevel Gear
(3) Collar
(4) Bevel Gear
(5) Bevel Gear Case
(6) Pinion Shaft
(7) Feather Key
(8) Side Pulley
(9) Side Pulley Holder
(10) Blade Shaft
(11) Dust Cover
(12) Blade (Side)
(13) Blade Boss
(14) Feather Key
(15) Bevel Gear Shaft
(16) Blade Boss
(17) Dust Cover
(18) Center Pulley Holder
(19) Blade (Center)
KiSC issued 04, 2006 A
