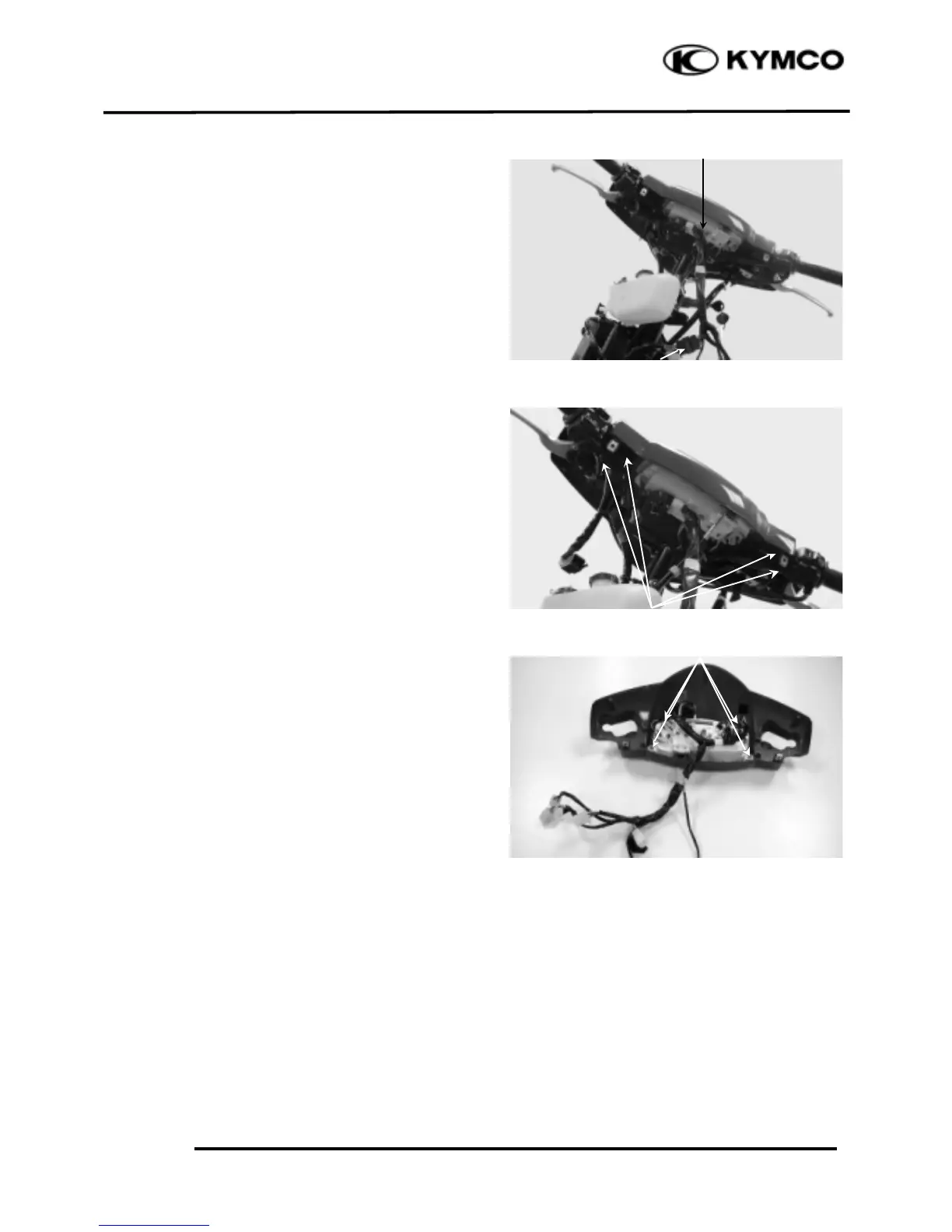

INSTRUMENTS
REMOVAL
Remove the front upper cover. (
!
2-5)
Disconnect the instrument wire couplers and
connectors.
Disconnect the speedometer cable.
Remove the four instrument cover and leg
shield screws.
Remove the instruments.
DISASSEMBLY/ASSEMBLY
Remove the three instrument holder nuts.
Remove the holder.
Remove the four screws to disassemble the
instruments and instrument cover .
Assemble the instruments in the reverse order
of disassembly.
INSTALLATION
The installation sequence is the reverse of
removal.
