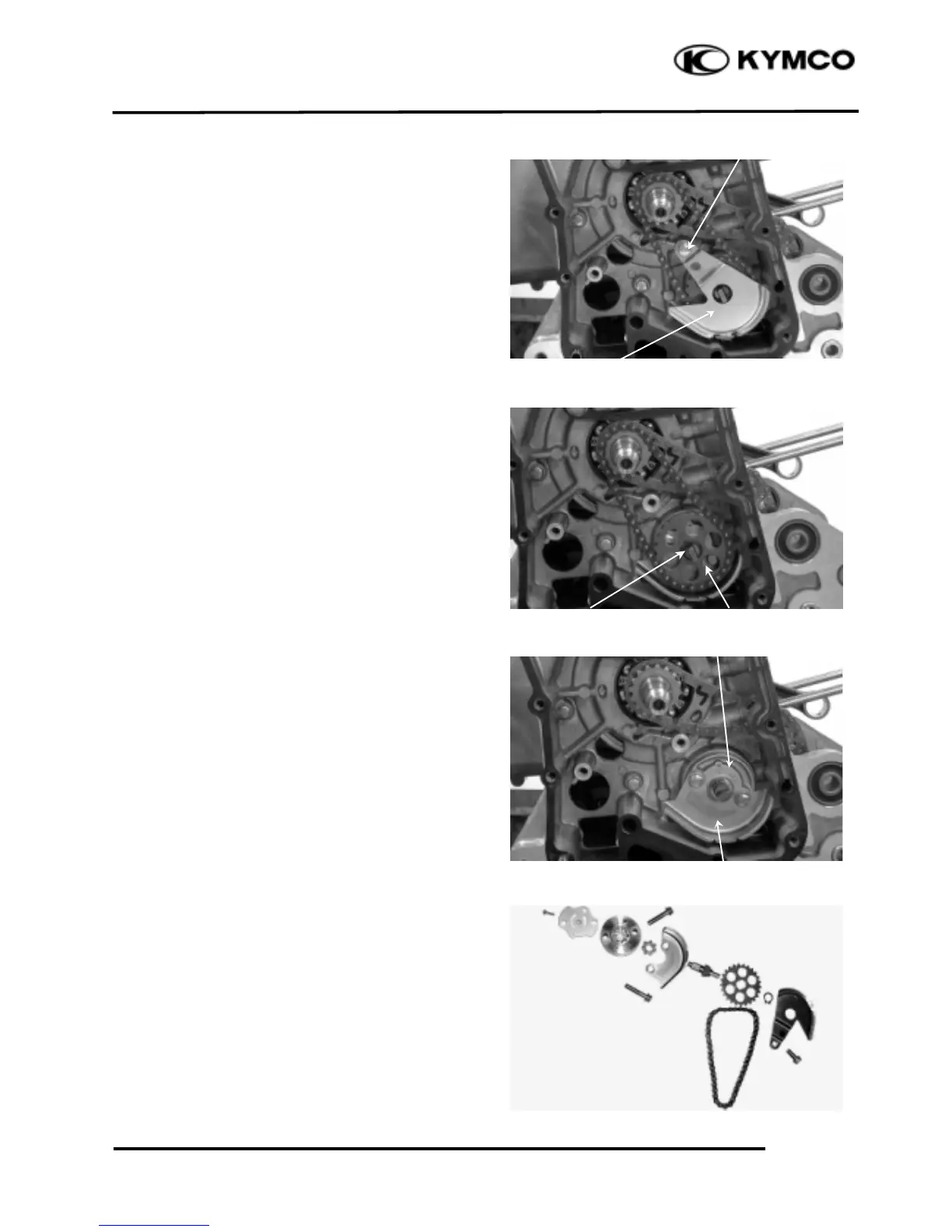

OIL PUMP REMOVAL
First drain the coolant.
Remove the right crankcase cover. (
!
10-3)
Remove the A.C. generator starter driven
gear. (
!
10-4)
Remove the attaching bolt and oil separator
cover.
Pry the circlip off and remove the oil pump
driven gear, then remove the oil pump drive
chain.
Remove the two oil separator bolts to remove
the oil pump.
OIL PUMP DISASSEMBLY
Remove the screw and disassemble the oil
pump as shown.
