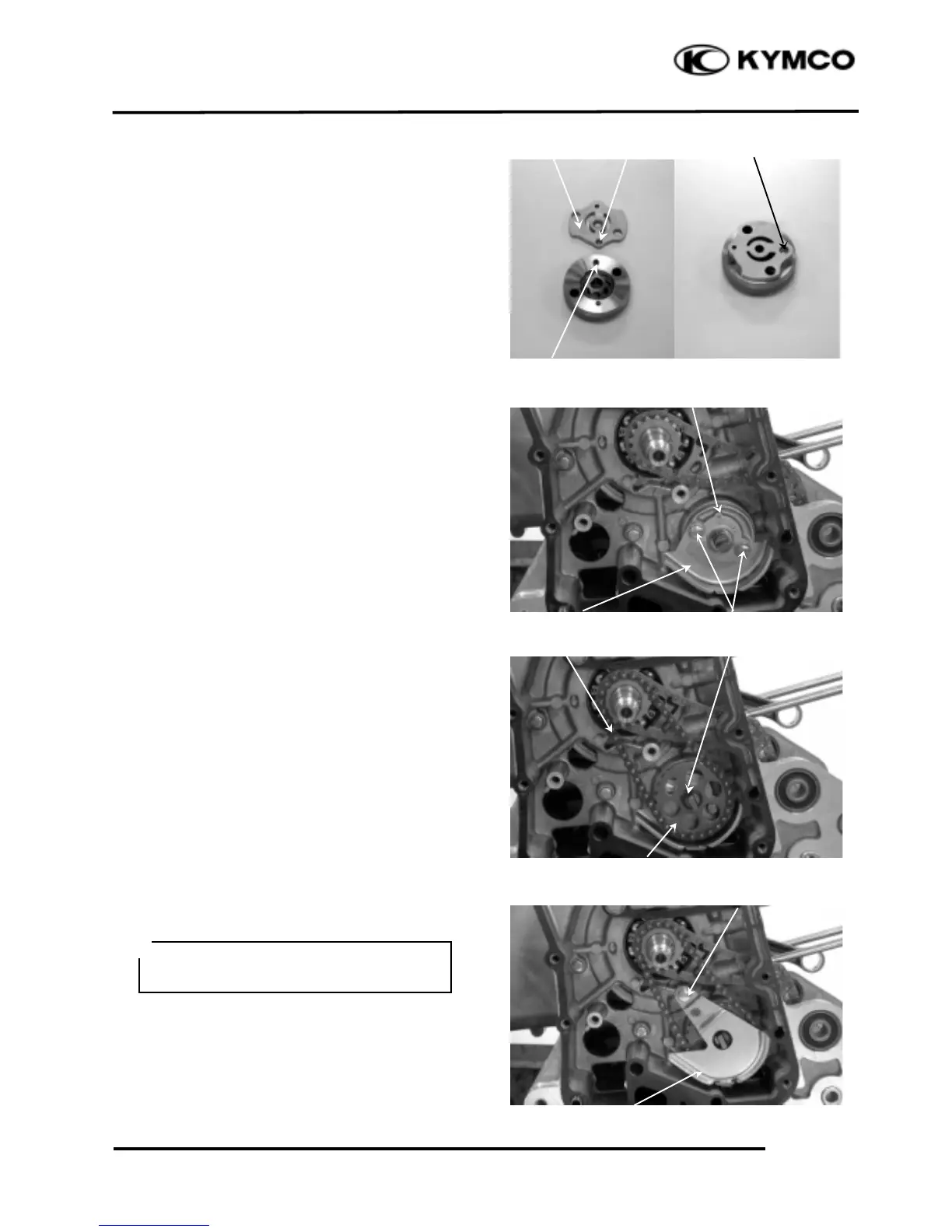

Install the pump cover by aligning the hole in
the cover with the dowel pin.
Tighten the screw to secure the pump cover.
Make sure that the pump shaft rotates freely
without binding.
OIL PUMP INSTALLATION
Install the oil pump and oil separator and
tighten the two bolts.
Make sure that the pump shaft rotates freely.
The arrow of oil pump is upside.
Install the pump drive chain and driven gear,
then set the circlip securely on the pump
shaft.
Install the oil separator cover properly.
Install the A.C. generator starter driven gear.
(
!
10-5)
Circlip
