10. CRANKCASE/CRANKSHAFT
10-7
ZX / SCOUT

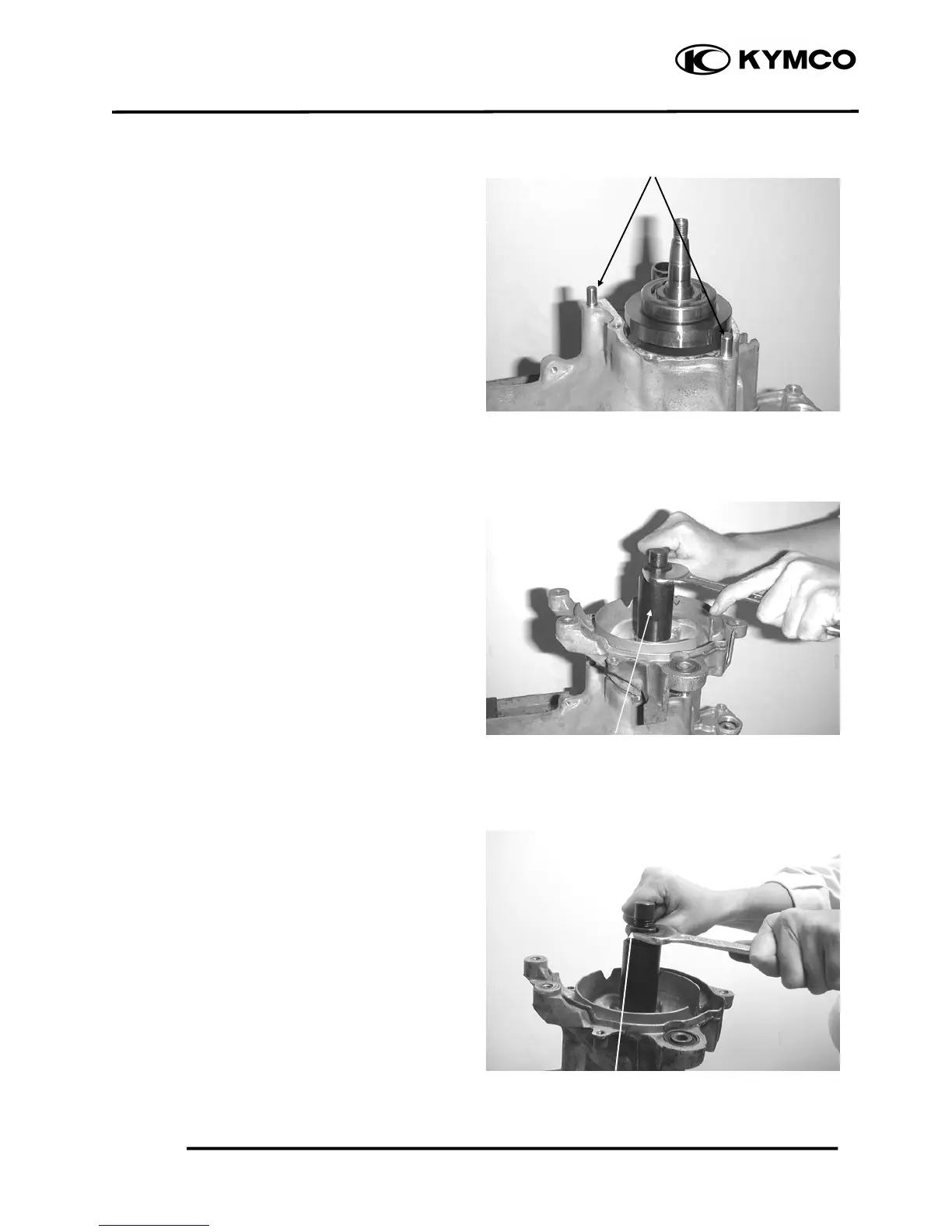

CRANKCASE ASSEMBLY
Install the dowel pins and a new gasket to
the crankcase mating surface.
Assemble the crankcase halves.
The distance between the right crankcase
oil seal and crankcase surface is about
12.5±0.5 mm.
Dowel Pins
Crankcase Assembly Tool
Crankcase Assembly Tool
