11. CARBURETOR
11-3
ZX / SCOUT

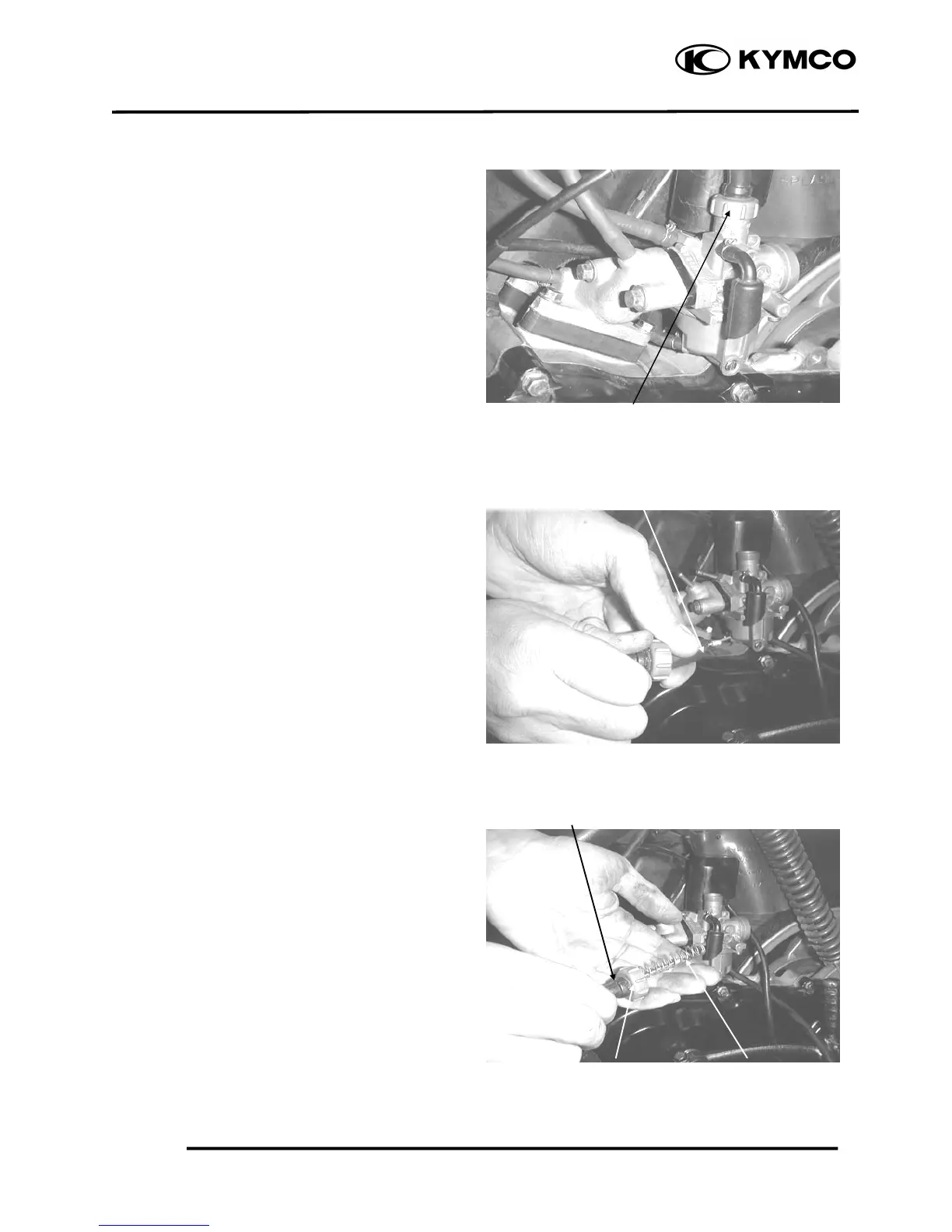

THROTTLE VALVE
DIS-ASSEMBLY
Remove the rear carrier. (
Ö
12-5)
Remove the met-in box. (
Ö
12-4)
Loosen the carburetor cap and remove the
throttle valve.
Disconnect the throttle cable from the
throttle valve.
Remove the throttle valve spring,
carburetor cap and rubber seal.
Carburetor Cap
Throttle Valve
Rubber Seal
Carburetor Cap
Spring
