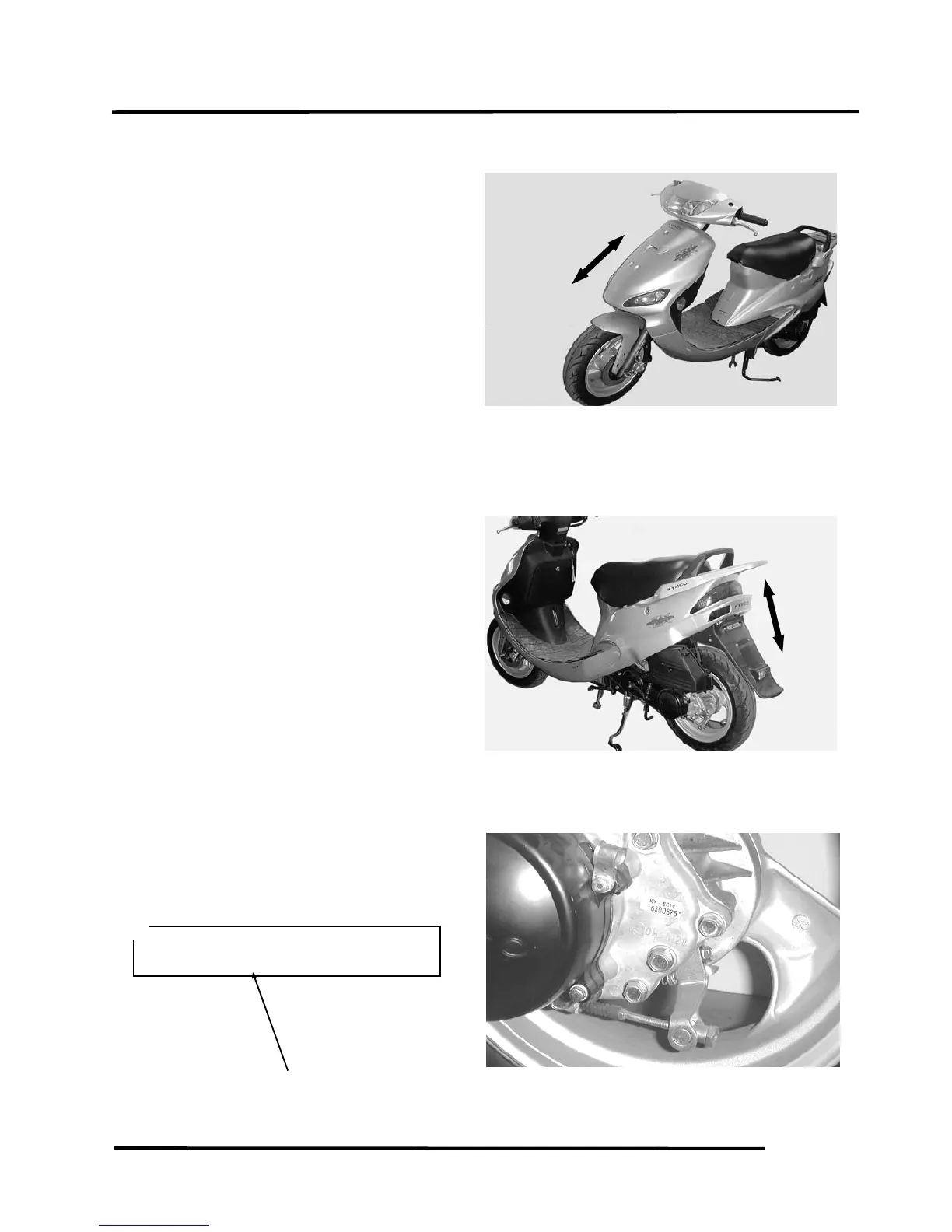

3. INSPECTION/ADJUSTMENT
3-6
DAMPING DEVICE
SHOCK ABSORBERS
Oil Leak/Damage
Fully apply the front brake and check the
action of the front shock absorber by
compressing it several times.
Check the entire shock absorber assembly
for looseness or damage.
Check the action of the rear shock absorber
by compressing it several times.
Check the entire shock absorber assembly
for looseness or damage.
POWER DRIVE SYSTEM
TRANSMISSION CASE
Check the rear wheel transmission case
surrounding area for oil leaks.
Stop the engine and remove the oil check
bolt.
The gear oil level shall be at the oil check
bolt hole. If the oil level is low, add the
specified oil to the proper level.
Specified Gear Oil: SAE10W90#
Install and tighten the oil check bolt.
Torque: 1.01.5kg-m
Start the engine and check for oil leaks.
Axle Nu
