11. CARBURETOR
11-4
ZX / SCOUT

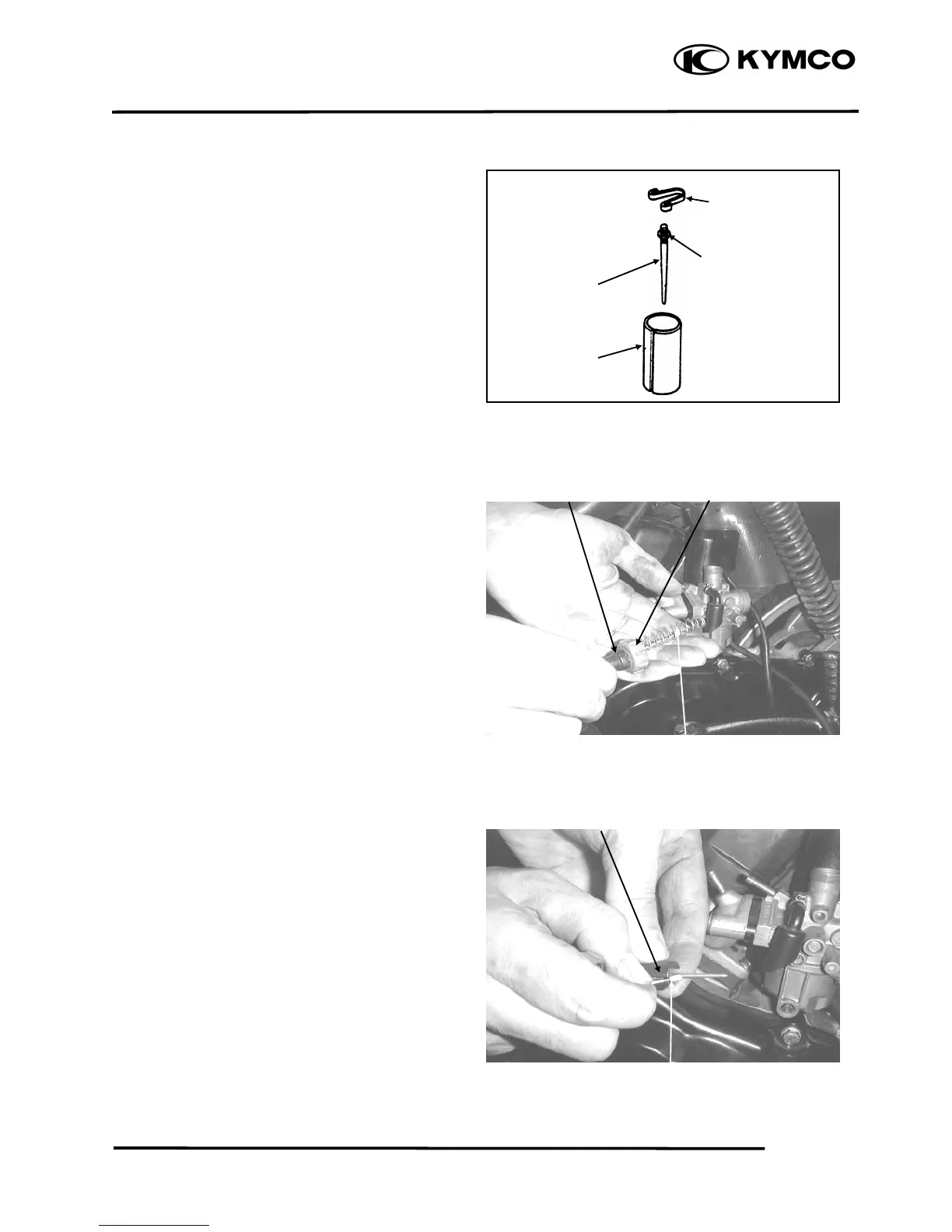

Remove the jet needle by removing the
needle clip.
Check the jet needle and throttle valve for
wear or damage.
THROTTLE VALVE
INSTALLA-TION
Install the jet needle on the throttle valve
and secure with the needle clip.
Install the rubber seal on the throttle cable
and then install the carburetor cap and
throttle valve spring.
Connect the throttle cable to the throttle
valve.
Carburetor Cap
Throttle Valve
Rubber Seal
Throttle Cable
Throttle Valve Spring
Needle Retaine
To Next Page
