13. STEERING HANDLEBAR/FRONT WHEEL/FRONT
BRAKE/FRONT SHOCK ABSORBER/FRONT FORK
13-17
ZX / SCOUT

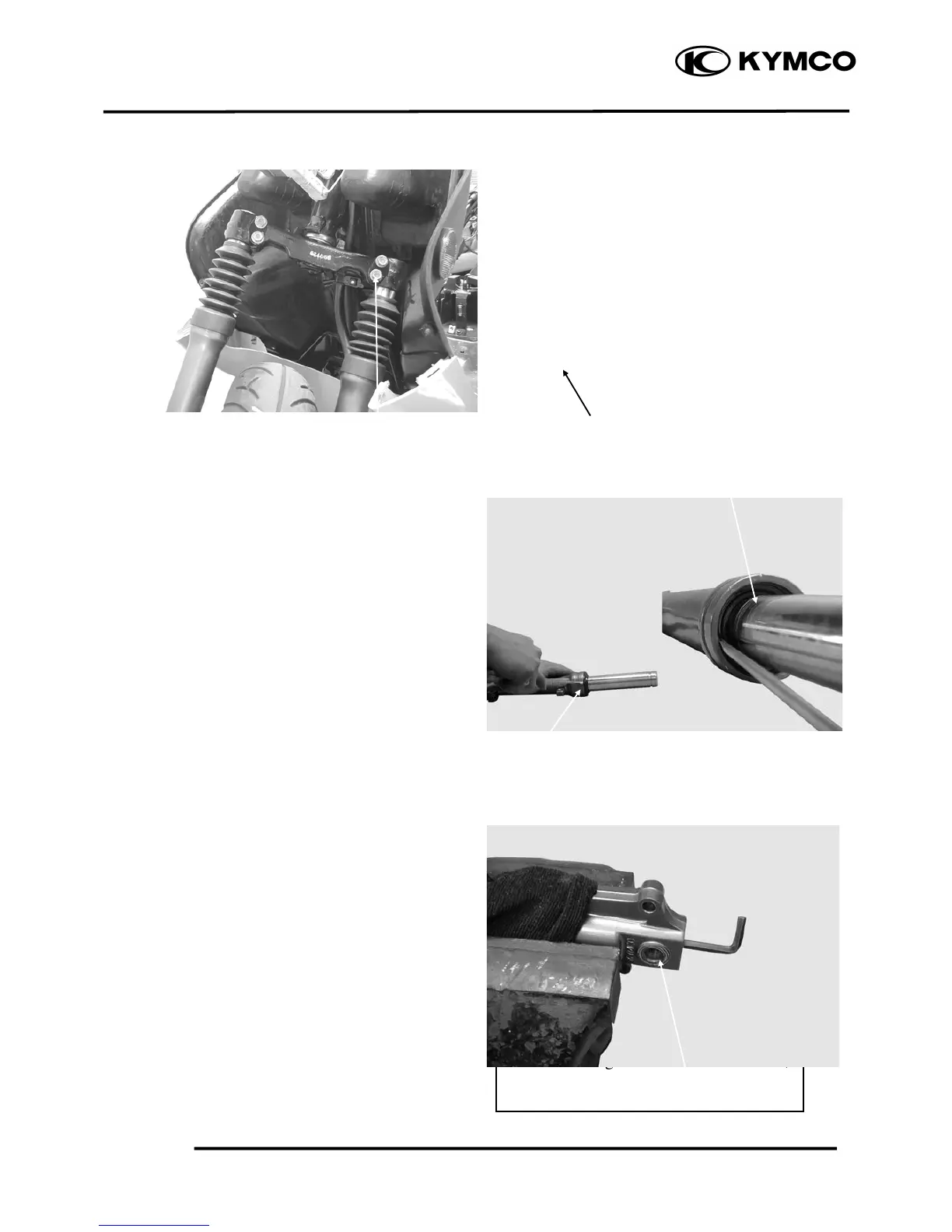

LEFT FRONT SHOCK ABSORBER
DISASSEMBLY
Remove the dust boot.
Remove the circlip.
Use a vise to hold the front shock absorber
and remove the shock absorber tube, hex
bolt and copper washer from the front
shock absorber.
Front Shock Absorbe
r
Mount Bol
t
Circlip
Use a vise to hold the front shock absorber tube
and remove the damper from the shock
absorber tube.
When holding the shock absorber tube,
place a shop towel under it and do not
apply too much force.

Front Shock Absorbe
r
Dust Boo
t
