16. INSTRUMENT/SWITCHES/LIGHTS
16-6
ZX / SCOUT

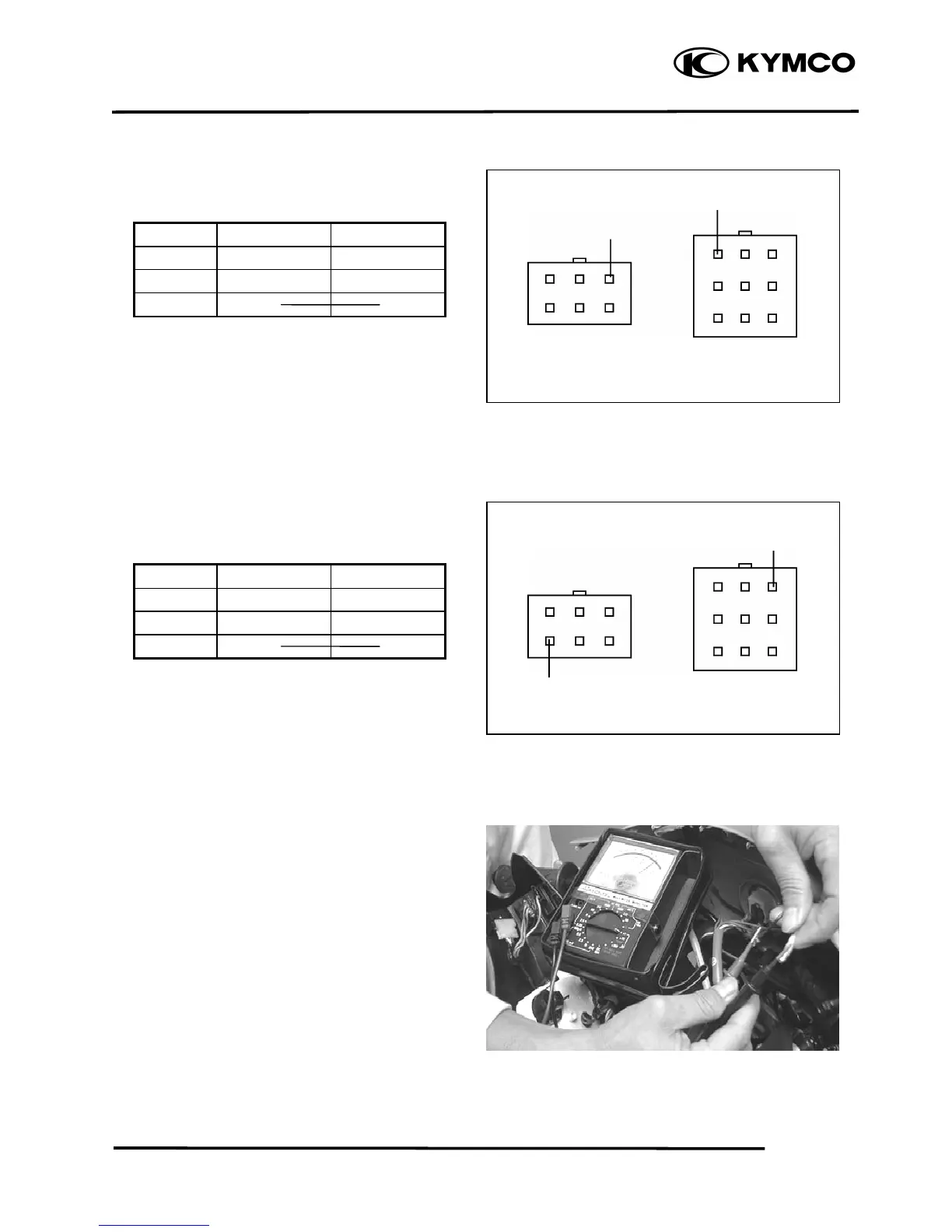

STARTER SWITCH INSPECTION
Check for continuity between wire
terminals.
Push the starter button when measuring.
Color Yellow/Red Green
Symbol ST E
FREE
PUSH ○ ○
HORN SWITCH INSPECTION
Check for continuity between wire
terminals.
Push the horn button when measuring.
Color Light Green Black
Symbol HO BAT2
FREE
PUSH ○ ○
STOP SWITCH INSPECTION
Remove the handlebar front cover. (
Ö
12-3)
Disconnect the front and rear stop switch
wire couplers.
Check for continuity between the wire
terminals when the front/rear brake lever is
applied.
Y/R
G
Starter Switch
Lg
B
Horn Switch
To Next Page
