11. CARBURETOR
11-13
ZX / SCOUT

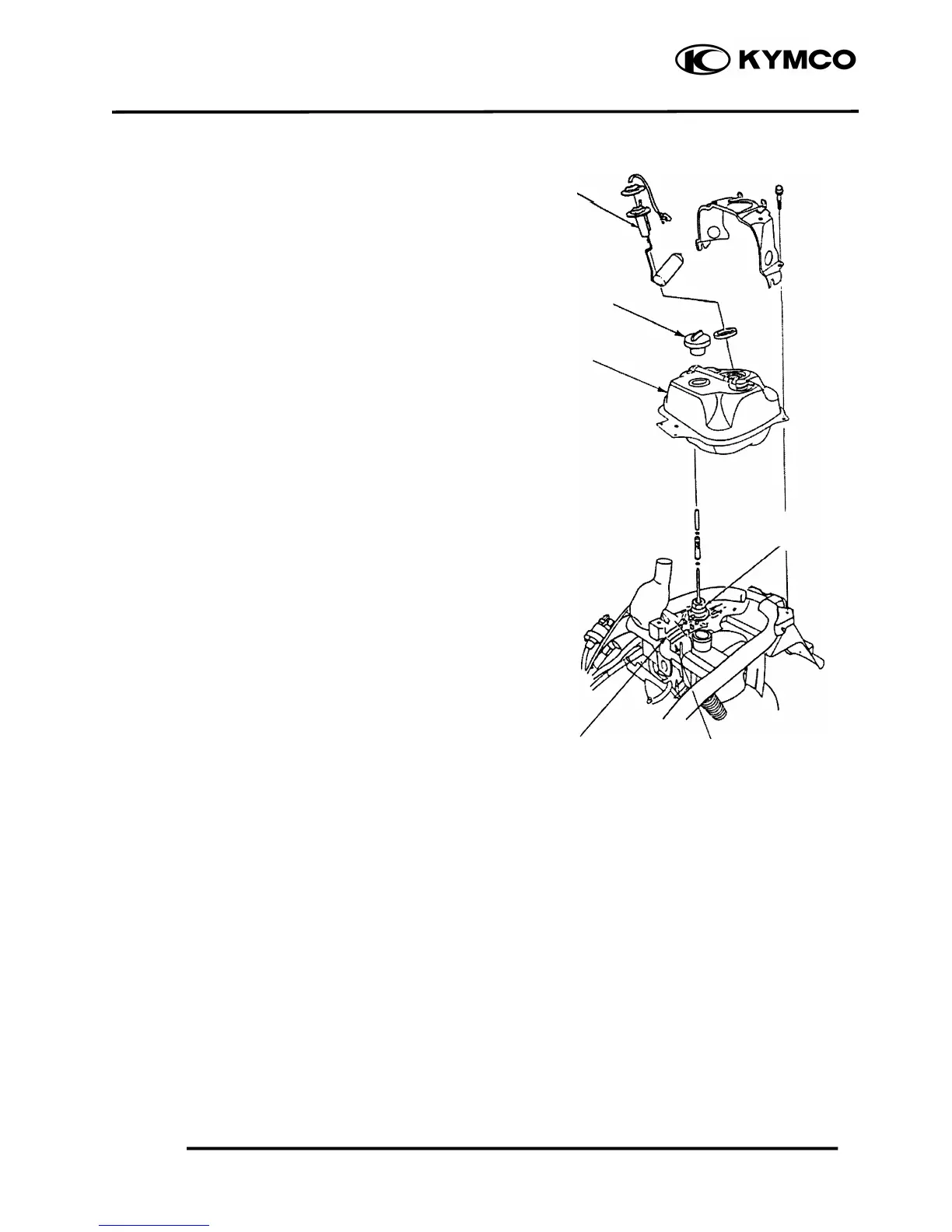

FUEL TANK
Fuel Unit
REMOVAL
Remove the met-in box. (
Ö
12-4)
Remove the frame body cover. (
Ö
12-5)
Remove the rear carrier. (
Ö
12-5)
Disconnect the fuel tube and vacuum tube
at the auto fuel valve.
Fuel Tank Cap
Disconnect the fuel unit wire connector.
Remove the fuel tank mounting bolts and
fuel tank.
Fuel Tan
k
Inspect the fuel unit. (
Ö
16-2)
Replace the fuel unit if necessary. (
Ö
16-2)
Auto Fuel Valve
Fuel Tube Vacuum Tube
