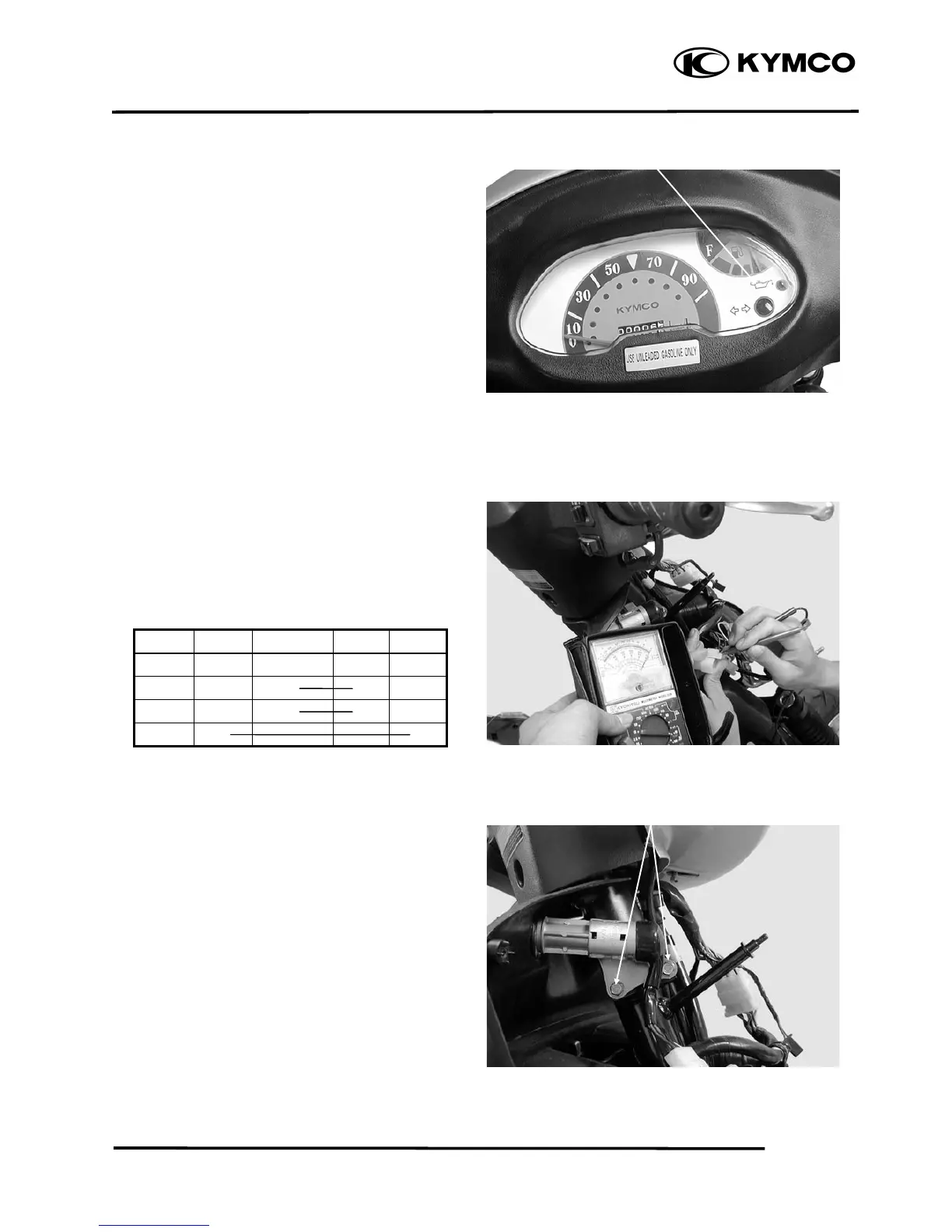

16. INSTRUMENT/SWITCHES/LIGHTS
16-4
ZX / SCOUT
Move the oil meter float up and down to see
if the oil indicator light will go out and
come on.
SWITCHES
IGNITION SWITCH INSPECTION
Remove the front cover. (
Ö
12-3)
Disconnect the ignition switch wire
couplers and check for continuity between
the wire terminals.
Color Red Black/White Green Black
Symbol BAT1 IG E BAT2
LOCK ○ ○
OFF ○ ○
ON ○ ○
IGNITION SWITCH REPLACEMENT
Remove the front cover. (
Ö
12-3)
Disconnect the ignition switch wire
couplers.
Remove the two mounting bolts and
remove the ignition switch.
The installation sequence is the reverse of
removal.
Oil Indicator Ligh
To Next Page
