KYMCO ZX/SCOUT 50 User Manual

14. REAR WHEEL/REAR BRAKE/REAR
SHOCK ABSORBER
14-7
ZX / SCOUT

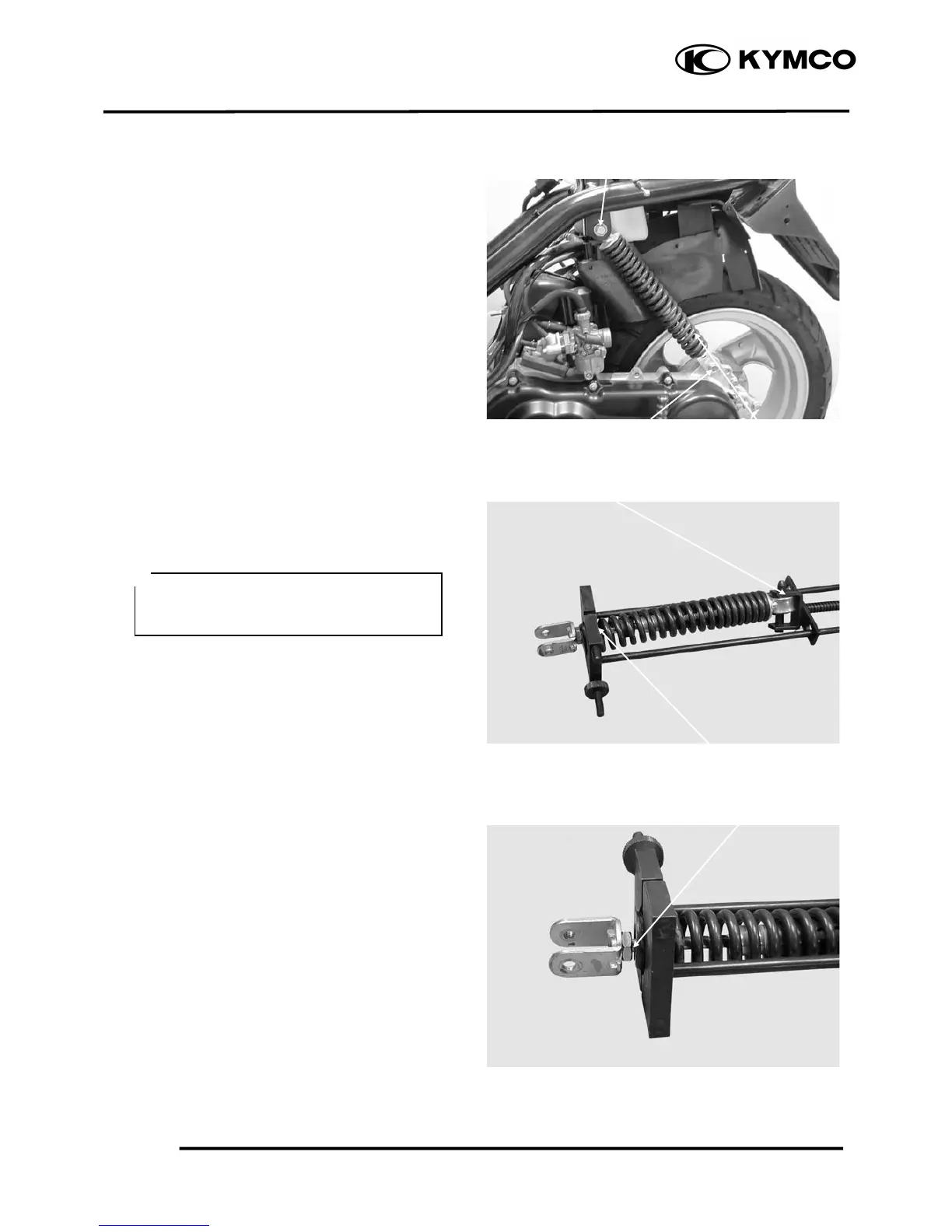

REAR SHOCK ABSORBER
REMOVAL
Remove the rear carrier. (
Ö
12-5)
Remove the met-in box. (
Ö
12-4)
Remove the air cleaner case. (
Ö
5-2)
Remove the rear shock absorber upper and
lower mount bolts to remove the rear shock
absorber.
DISASSEMBLY
Install the rear shock absorber compressor
as the figure shown.
Compress the rear shock absorber spring.
Loosen the lower joint lock nut.
Remove the lower joint.
Remove the lock nut, rubber and damper.
Upper Mount Bol
t
Lower Mount Bol
t
Rear Shock Absorbe
r
Rear Shock Absorber Compresso
r
Lock Nu
t
Install the rear shock absorber lower
joint into the rear shock absorber
compressor.

Rear Shock Absorber Remove
r
