2NM/2NX/2NY/2NZ/2P0/2P6

1-5-70

32. Stand the main unit front side up.

33. Remove four screws each and then

remove the bottom plate 1 and the bot-

tom plate 2.

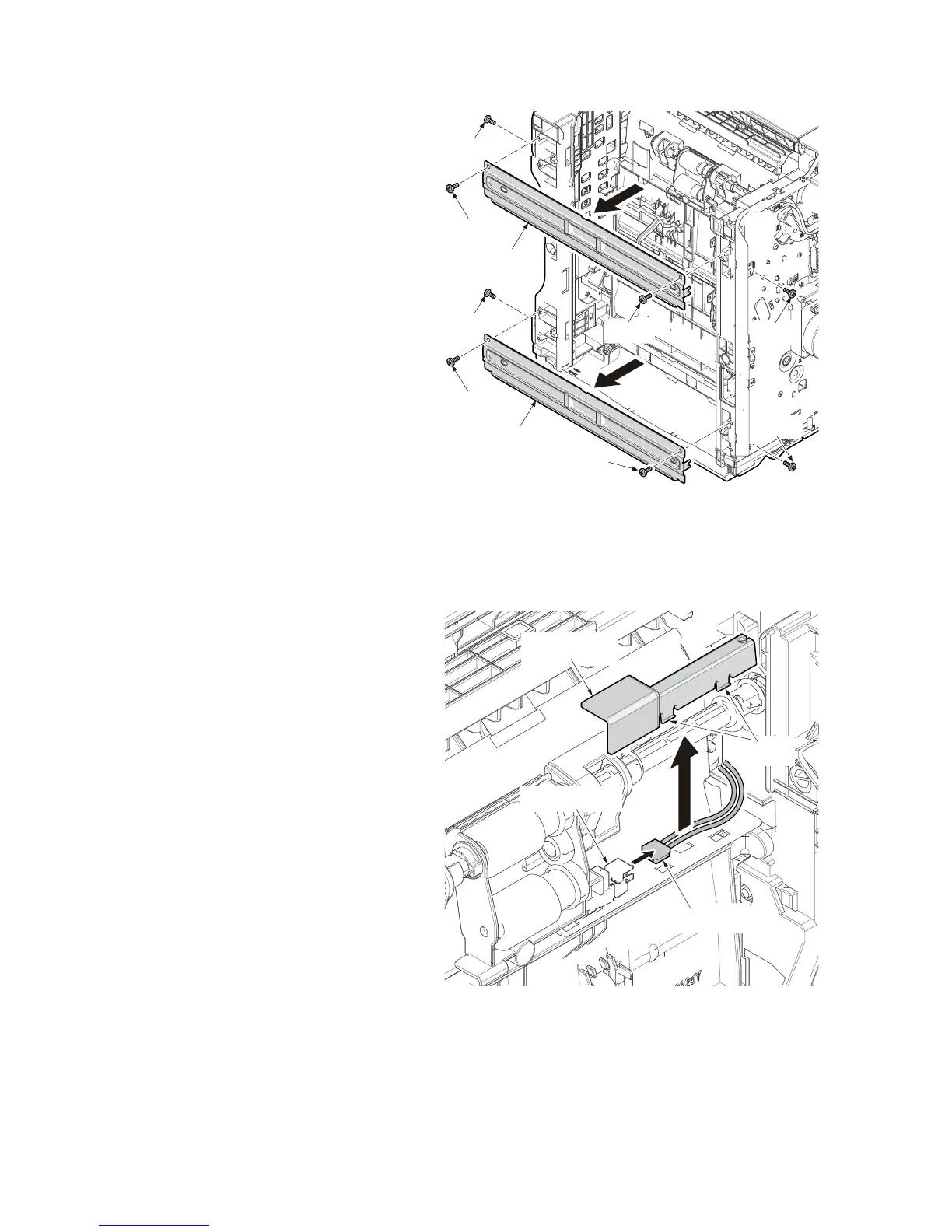

Figure 1-5-119

(50/60 ppm model only)

(1)Release two hooks and then remove the

wire cover.

(2)Pull the connector of lift sensor out.

Figure 1-5-120

Screw

Botom plate 2

Screw

Bottom plate 1

Lift sensor

Hooks

Connector

Wire cover

Service Manual1
