Kyocera FS-1118MFP Service Manual

2GM
1-6-33
3. Remove two screws and then remove two grounding plates.
4. Remove the stopper ring and then detach the scanner shaft.
* Detach the shaft taking care to tilt it as little as possible.

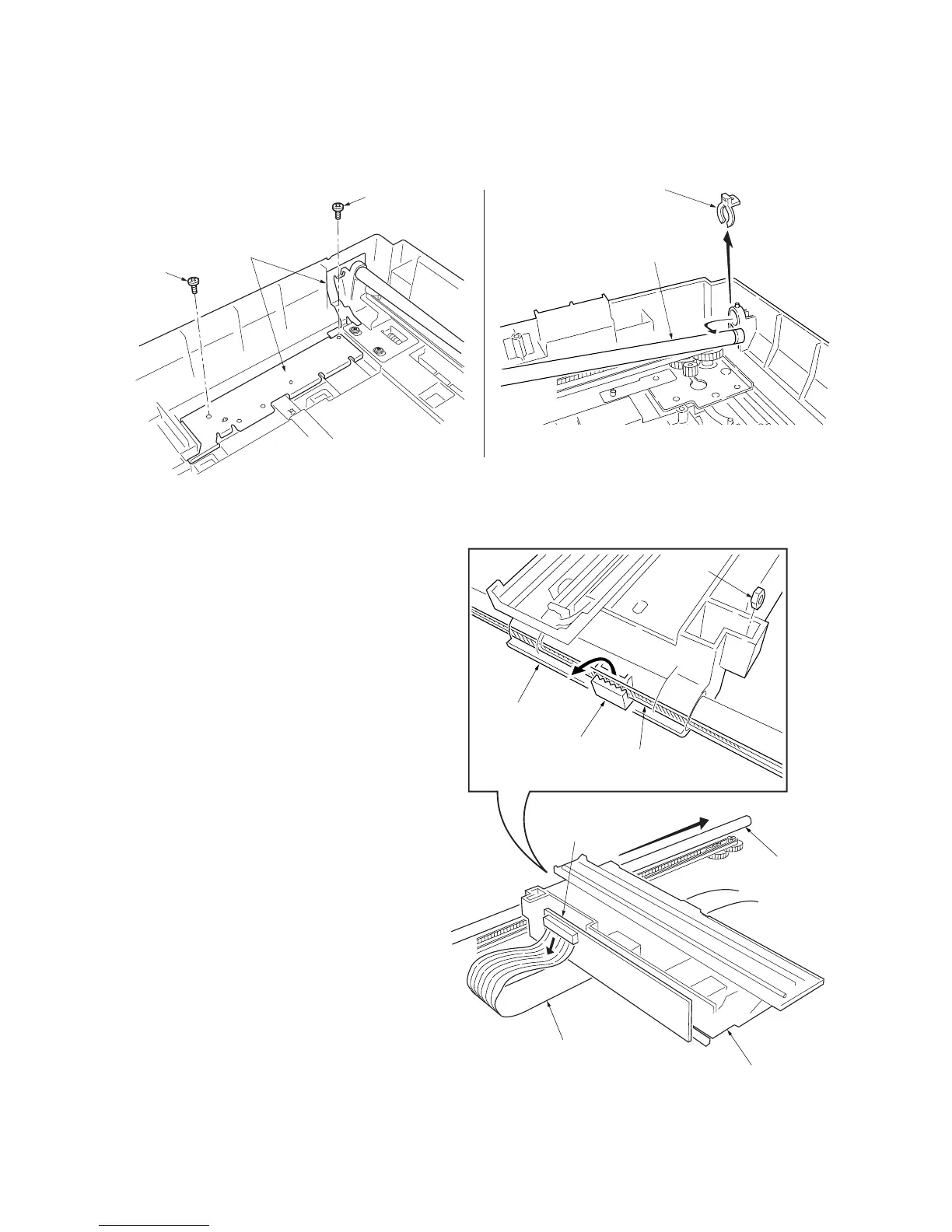

Figure 1-6-38 Detaching the scanner shaft
5. Remove the flexible flat cable from the ISU
PWB’s connector.
6. Remove the scanner belt from the belt hook
of scanner unit.
7. Remove the ISU unit from the scanner shaft.
* Remove the ISU unit taking care not to lose
the M4 nut located in the ISU unit.
Figure 1-6-39 Removing the ISU unit
Flexible flat cable
ISU PWB
M4 nut
ISU unit
Scanner belt
Scanner shaft
Scanner unit
Belt hook
Stopper ring
Grounding plates
Screw
Screw
Scanner shaft

Kyocera FS-1118MFP Specifications

General

Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Fax memory	6 MB
Modem speed	33.6 Kbit/s
Dimensions (WxDxH)	496 x 421 x 385 mm
Power requirements	AC 220 ~ 240 V, 50/60 Hz
Networking features	TCP/IP
All-in-one functions	Scan
Standard media sizes	60-105 g/m2, A4, B5, A5, A6, Letter, Legal, Folio 50-sheet multi-purpose tray, 60-163 g/m2, A4, B5, A5, A6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm), envelopes
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98, 98SE, ME, 2000, XP, NT 4.0
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
Internal memory	96 MB
Processor model	750CXr
Processor family	PowerPC
Built-in processor	Yes
Maximum internal memory	320 MB
Sound power level (standby)	43 dB
Sound pressure level (printing)	65 dB
Bundled software	Paper Port Deluxe 9.2
Grayscale levels	256
Certification	TÜV/GS, CE
Maximum duty cycle	10000 pages per month
Power consumption (standby)	76 W
Power consumption (PowerSave)	40 W
Power consumption (average operating)	409 W
Market positioning	Home & office
