Kyocera FS-1118MFP Service Manual

2GM
1-6-41
Yes
No
Start
Enter maintenance mode.
Enter 034 using
up/down cursor keys.
Press the enter key.
Press the system menu/counter key.
Is the leading edge
registration correct?
Press the enter key.
The new setting is stored
Press the back key to exit
maintenance mode.
End
Select the items to be adjusted
using up/down cursor keys.
*After adjusting the MP tray,
adjust the drawer.
Press the system menu/counter key.
For copy example 1, decrease
the value using the left cursor key.
For copy example 2, increase
the value using the right cursor key.
Setting range
Drawer: 430 to 570
MP tray: –70 to +70
Changing the value by 1 moves the
leading edge by 0.254 mm.
Press the start key
to output a test pattern.
(Printing cannot be stopped until the
preset number of sheets is printed.)
Lead Edge Adj1: Leading edge
registration from the drawer
Lead Edge MPT: Leading edge
registration from the MP tray

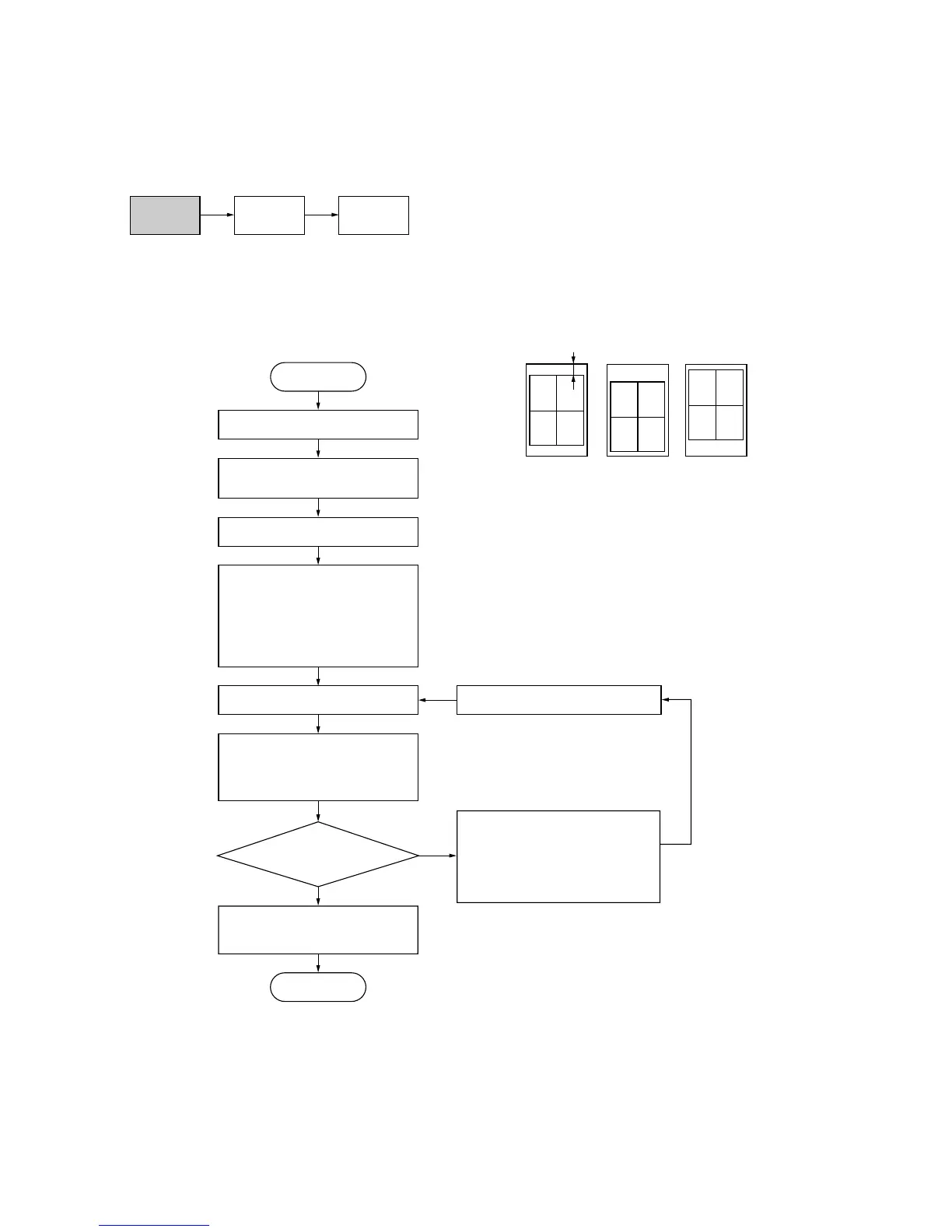

1-6-17 Adjustment the maintenance mode
(1) Adjusting the leading edge registration of image printing
Make the following adjustment if there is a regular error between the leading edges of the copy image and original.
U034
U066
(P. 1-6-46)
U071
(P. 1-6-50)
Caution:
Check the copy image after the adjustment. If the image is still incorrect, perform the above adjustments in maintenance
mode.
Procedure
Correct image Copy
example 1
Copy
example 2
Leading edge registration (10 mm)
Figure 1-6-52

Kyocera FS-1118MFP Specifications

General

Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Fax memory	6 MB
Modem speed	33.6 Kbit/s
Dimensions (WxDxH)	496 x 421 x 385 mm
Power requirements	AC 220 ~ 240 V, 50/60 Hz
Networking features	TCP/IP
All-in-one functions	Scan
Standard media sizes	60-105 g/m2, A4, B5, A5, A6, Letter, Legal, Folio 50-sheet multi-purpose tray, 60-163 g/m2, A4, B5, A5, A6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm), envelopes
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98, 98SE, ME, 2000, XP, NT 4.0
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
Internal memory	96 MB
Processor model	750CXr
Processor family	PowerPC
Built-in processor	Yes
Maximum internal memory	320 MB
Sound power level (standby)	43 dB
Sound pressure level (printing)	65 dB
Bundled software	Paper Port Deluxe 9.2
Grayscale levels	256
Certification	TÜV/GS, CE
Maximum duty cycle	10000 pages per month
Power consumption (standby)	76 W
Power consumption (PowerSave)	40 W
Power consumption (average operating)	409 W
Market positioning	Home & office
