Kyocera FS-1118MFP Service Manual

2GM
2-1-4
2-1-2 Original scanning system
The scanner unit consists of the image scanning unit (ISU) for main-direction scanning, and drive part for traveling the
ISU unit to sub-direction.

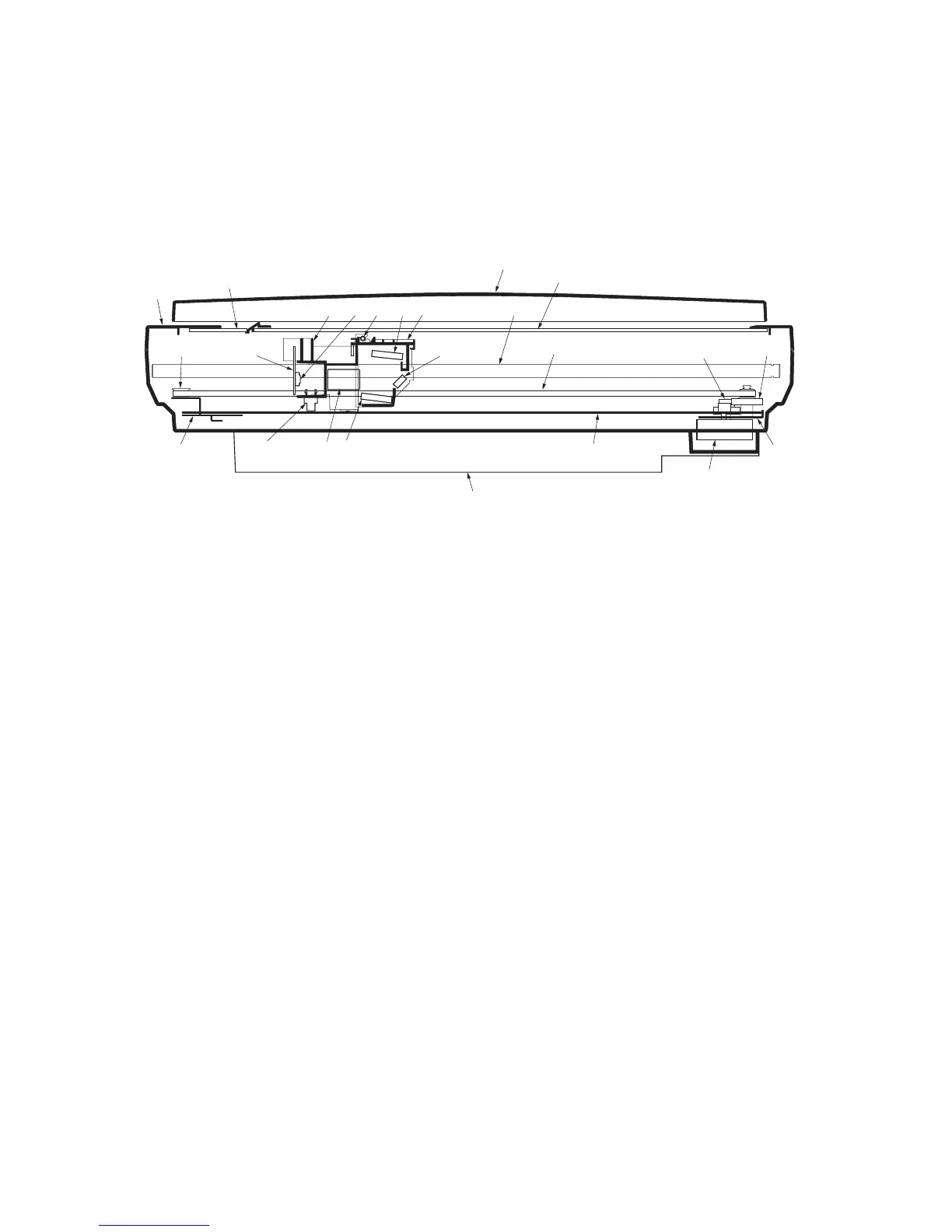

Figure 2-1-4 Scanner unit
1 Original holder
2 Scanner upper frame
3 Scanner lower frame
4 Contact glass
5 DP Contact glass
6 Scanner rail
7 Scanner motor mount
8 Tension pulley mount
9 Scanner belt
0 Scanner motor
! Tension pulley
@ Scanner gear 45/18
# Scanner gear 39/22
$ Scanner shaft
% ISU housing
^ CCD image sensor
& Exposure lamp
* Exposure lamp mount
( CCD PWB
) ISU lens
⁄ Mirror A
¤ Mirror B
‹ Mirror A
› Scanner home position sensor
1
5
8
2
!
3
›
(
¤
⁄
^
&
%
*
4
$
)‹
6
9
#
@
7
0

Kyocera FS-1118MFP Specifications

General

Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Fax memory	6 MB
Modem speed	33.6 Kbit/s
Dimensions (WxDxH)	496 x 421 x 385 mm
Power requirements	AC 220 ~ 240 V, 50/60 Hz
Networking features	TCP/IP
All-in-one functions	Scan
Standard media sizes	60-105 g/m2, A4, B5, A5, A6, Letter, Legal, Folio 50-sheet multi-purpose tray, 60-163 g/m2, A4, B5, A5, A6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm), envelopes
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98, 98SE, ME, 2000, XP, NT 4.0
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
Internal memory	96 MB
Processor model	750CXr
Processor family	PowerPC
Built-in processor	Yes
Maximum internal memory	320 MB
Sound power level (standby)	43 dB
Sound pressure level (printing)	65 dB
Bundled software	Paper Port Deluxe 9.2
Grayscale levels	256
Certification	TÜV/GS, CE
Maximum duty cycle	10000 pages per month
Power consumption (standby)	76 W
Power consumption (PowerSave)	40 W
Power consumption (average operating)	409 W
Market positioning	Home & office
