Kyocera FS-1118MFP Service Manual

3JG
2-2-5
2-2-2 NCU PWB
Noise
fileter
circuit
C038, C039
Noise
fileter
circuit
FCPWB
Surge
absorption
section
V10, V12
V11
Relay
circuit
Q10
DCCONT
LINE1
LINE2
DC/DC converter on/off
circuit Q48, Q49
DC/DC converter circuit
Q47
Off-hook detection circuit
photo coupler PC40
External telephone
off-hook detection
circuit
U11
Accounting
pulse
elimination
circuit
C041, C042
C043
Ground start
circuit
DB20, PC20
(modular
connector)
Line
(modular
connector)
Tel
TELOFHKn
EARTH
TEL SEL
TEL_DET1
TEL_DET2

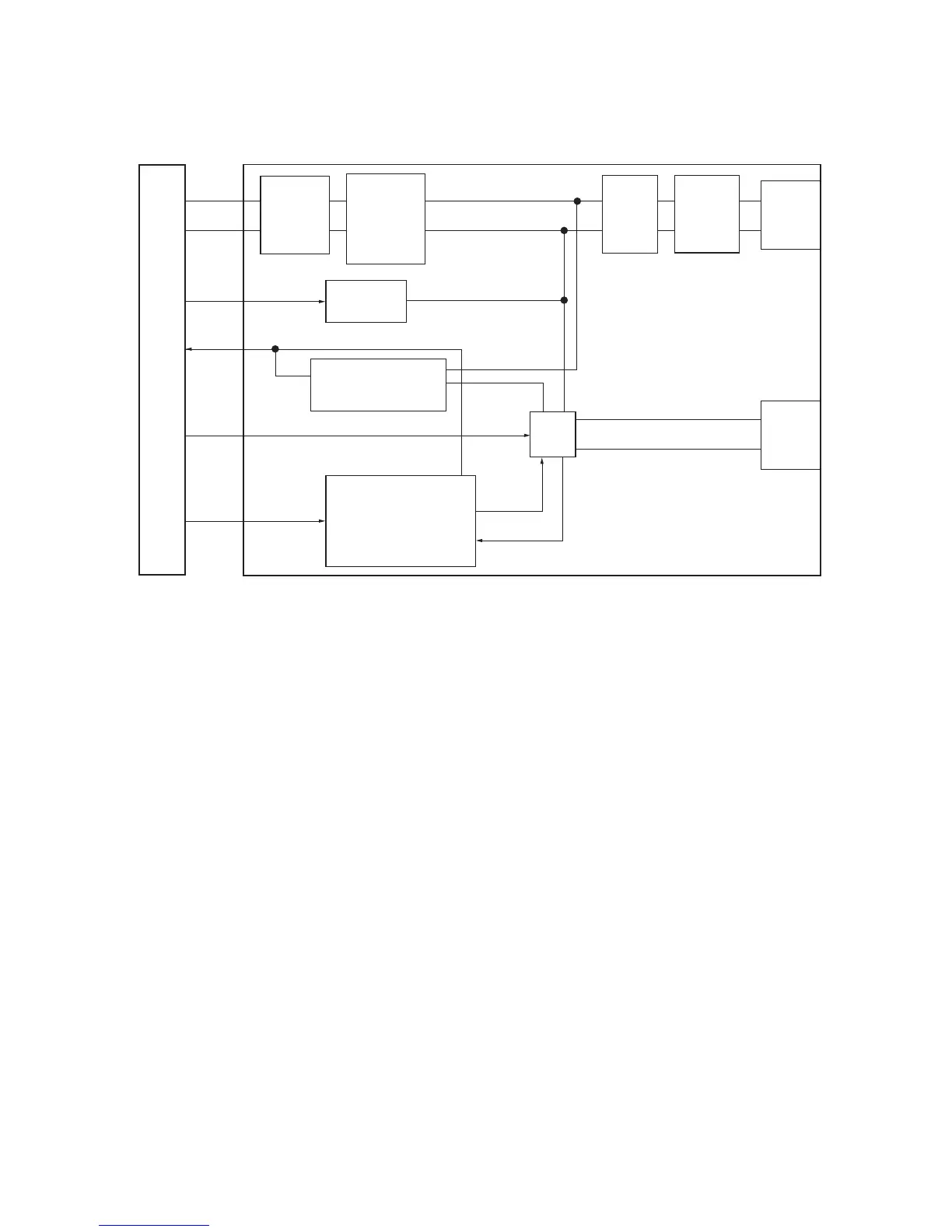

Figure 2-2-3 NCU PWB block diagram
The NCU PWB (NCUPWB) mainly controls the connection to the telephone line. It consists of the circuits shown in the block
diagram.
The external telephone off-hook detection circuit U11 detects the off-hook state of the telephone connected.
In the DC/DC converter ON/OFF circuit (Q48 and Q49) , when the DCCONT signal reaches high level, Q48 becomes ON
and supplys the electric current to the the DC/DC converter circuit Q47.
In the off-hook detection circuit PC40, by carrying out the off-hook of the external telephone, a loop is formed between
TEL_DET1 signal and TEL_DET2 signal, when 3.3 V DC flows to a photo coupler, a TELOFHKn signal is set to low level and
an off-hook is detected.
The accounting pulse elimination circuit (C041, C042 and C043) removes signals representing the communication charge
information (accounting pulses) before they reach the modem when telephone line is used. This is because accounting
pulses obstruct fax communications.
The ground start circuit (DB20 and PC20) requests an outside connection to the private branch exchange (PBX) when
calling via the PBX.

Kyocera FS-1118MFP Specifications

General

Print technology	Laser
Maximum resolution	1800 x 600 DPI
Time to first page (black, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	18 ppm
Fax memory	6 MB
Modem speed	33.6 Kbit/s
Dimensions (WxDxH)	496 x 421 x 385 mm
Power requirements	AC 220 ~ 240 V, 50/60 Hz
Networking features	TCP/IP
All-in-one functions	Scan
Standard media sizes	60-105 g/m2, A4, B5, A5, A6, Letter, Legal, Folio 50-sheet multi-purpose tray, 60-163 g/m2, A4, B5, A5, A6, Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm), envelopes
Color all-in-one functions	scan, n
Compatible operating systems	Windows 98, 98SE, ME, 2000, XP, NT 4.0
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
Internal memory	96 MB
Processor model	750CXr
Processor family	PowerPC
Built-in processor	Yes
Maximum internal memory	320 MB
Sound power level (standby)	43 dB
Sound pressure level (printing)	65 dB
Bundled software	Paper Port Deluxe 9.2
Grayscale levels	256
Certification	TÜV/GS, CE
Maximum duty cycle	10000 pages per month
Power consumption (standby)	76 W
Power consumption (PowerSave)	40 W
Power consumption (average operating)	409 W
Market positioning	Home & office
