112
6
Commissioning
6.3.3
Configuring the Range Limits
Configuring the range limits with the CMS remote software (AL1)

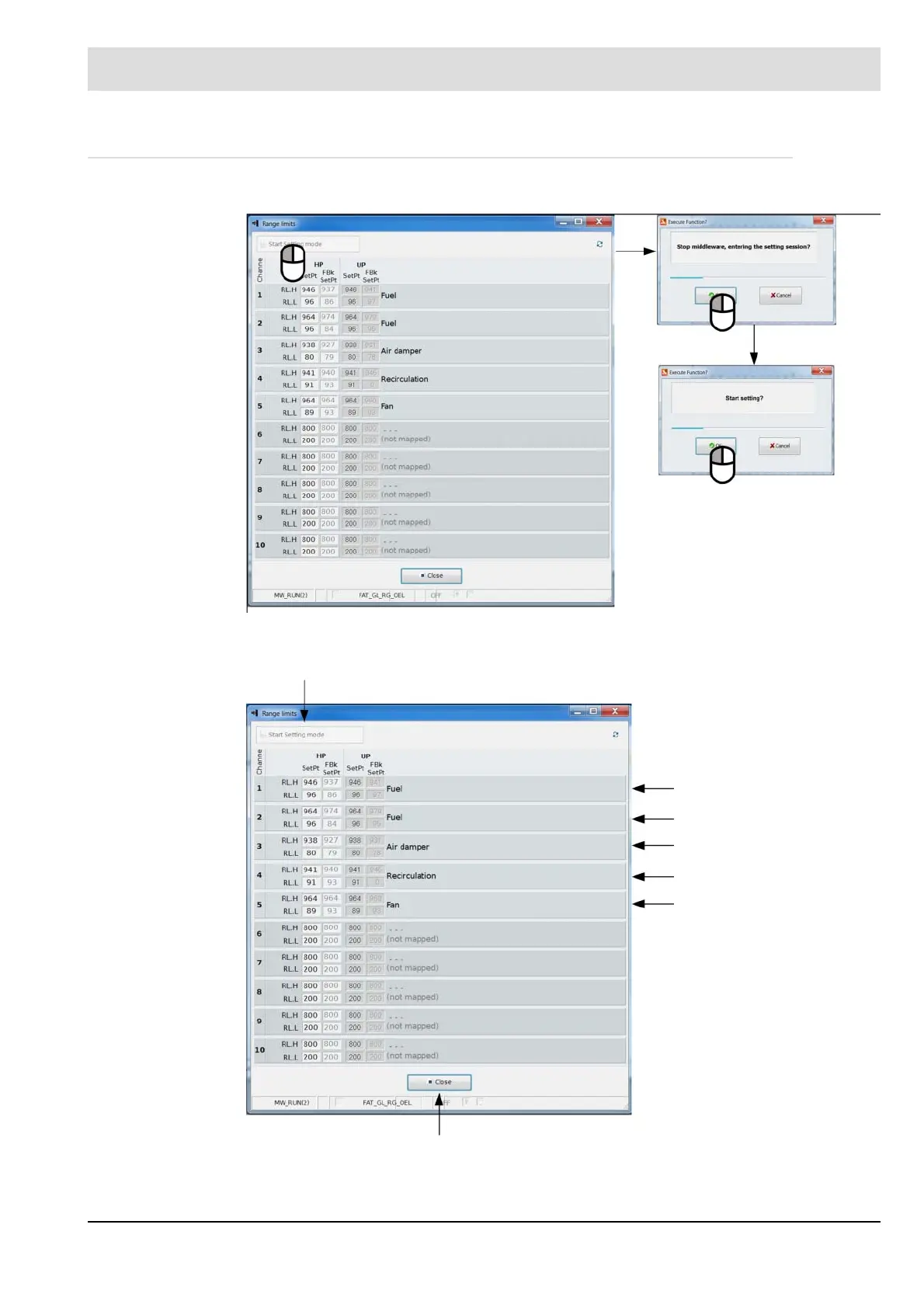

Fig. 6-4 Starting the range limit configuration process
Step 2
Fig. 6-5 Reading in the range limits 2 – CMS remote software
Step 1
Step 3
112
