4 CMS Components
4.6.3 Terminal Assignment

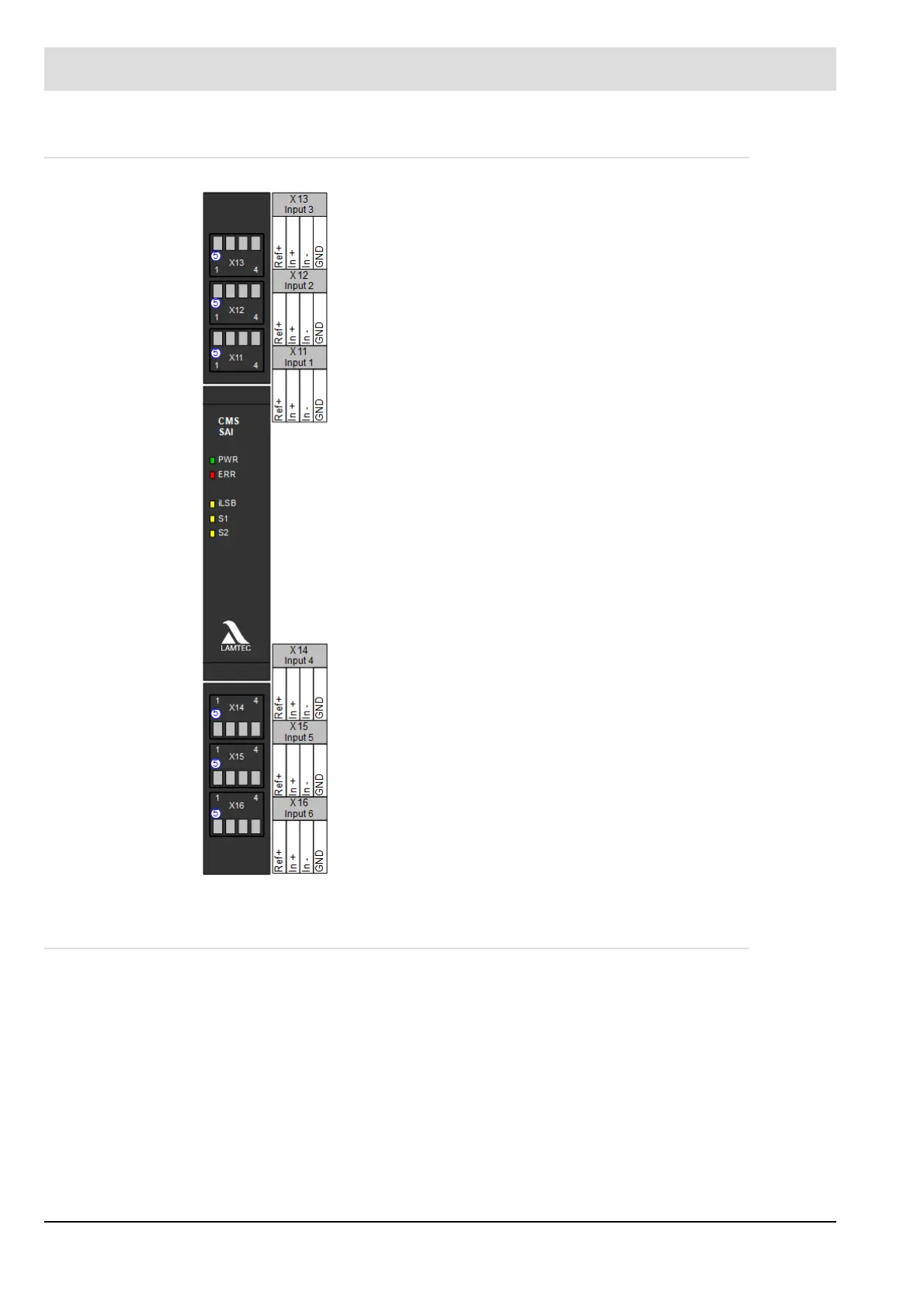

Fig. 4-28 SAI 230 VAC terminal assignment
4.6.4 Functional Description
Terminal configuration
Six inputs can be configured for each SAI by ’SAI terminal configuration’.
The SAI parameter array is initiated based on the sequence number of the SAI module ad-
dress.
• SAI 1: P 1270 1-6
• SAI 2: P 1270 7-12
• SAI 3: P 1270 13-18
For more information refer to the parameter list document no. DLT7202
Setting the parameters require a reboot of the system.
