LEGRAND D45 SYSTEM User Manual

A
A
Advanced configuration by software MHSUITE.
WARNINGS:

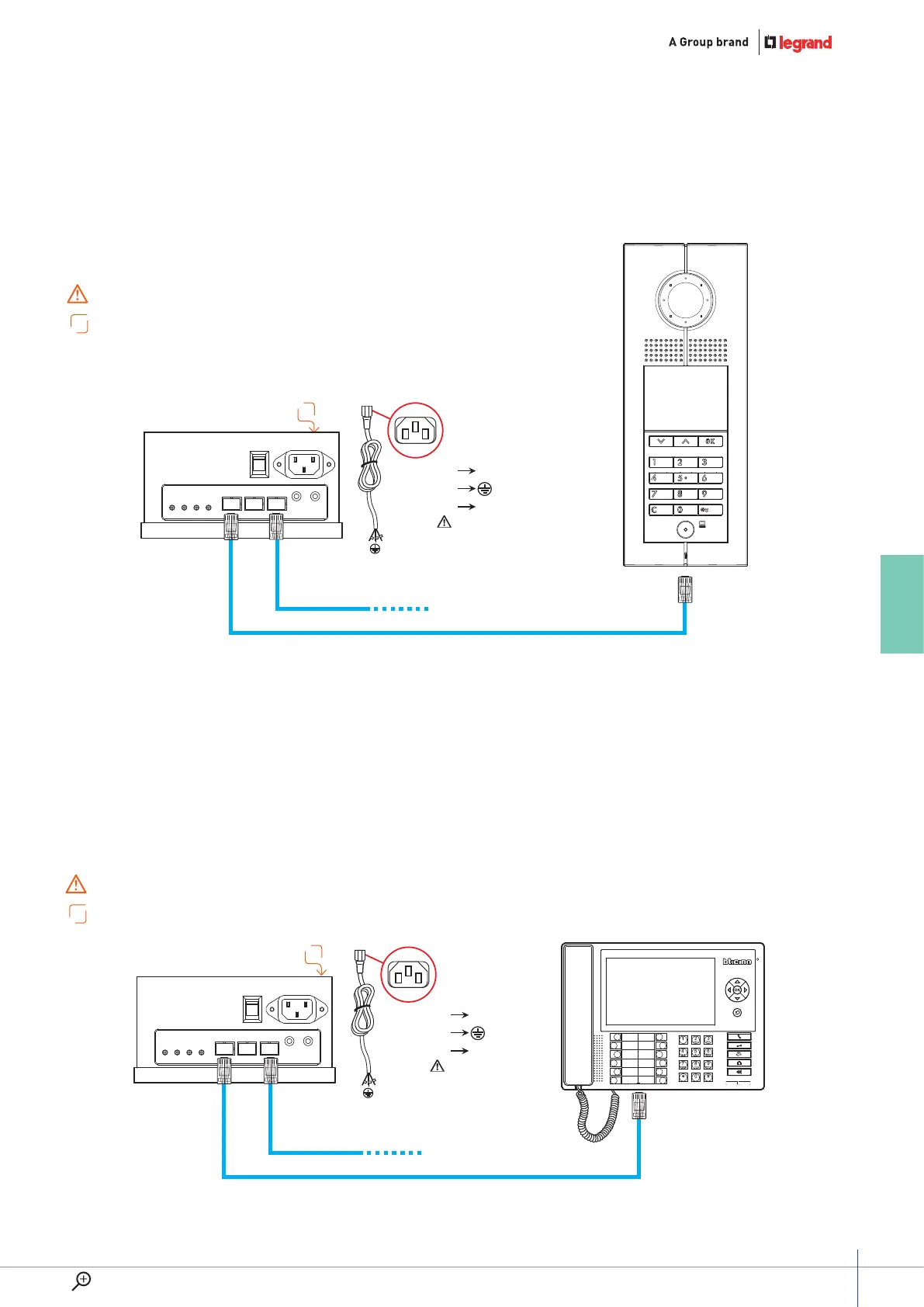

entrance pannel auxiliary power supply connection
B DCA
+
– –
+
N L
L
E
N
- Blue N
-
Yellow and green
- Brown
L
AC input
This wire must be connected
to earth ground
B DCA
+
– –
+
N L
L
E
N
- Blue N
-
Yellow and green
- Brown
L
AC input
This wire must be connected
to earth ground
1 2
Riser OUT
BACK BONE
Riser IN
322011
323010
Diagram 8
power supply connection for switcHboard
A
A
Advanced configuration by software MHSUITE.
WARNINGS:
B DCA
+
– –
+
N L
L
E
N
- Blue N
-
Yellow and green
- Brown
L
AC input
This wire must be connected
to earth ground
BACK BONE
L+ L- GND GNDUNLOCK +12VDAS L+ L- GNDUNLOCK +12VDAS
323001
323010
Diagram 9
103
GUIDE
WWW.LEGRAND.COM

LEGRAND D45 SYSTEM Specifications

General

Brand	LEGRAND
Model	D45 SYSTEM
Category	Intercom System
Language	English
