LEGRAND D45 SYSTEM User Manual

For the installation of one-riser
video systems, the floor shunt,
323002, must be used. It is
particularly suited to multifamily

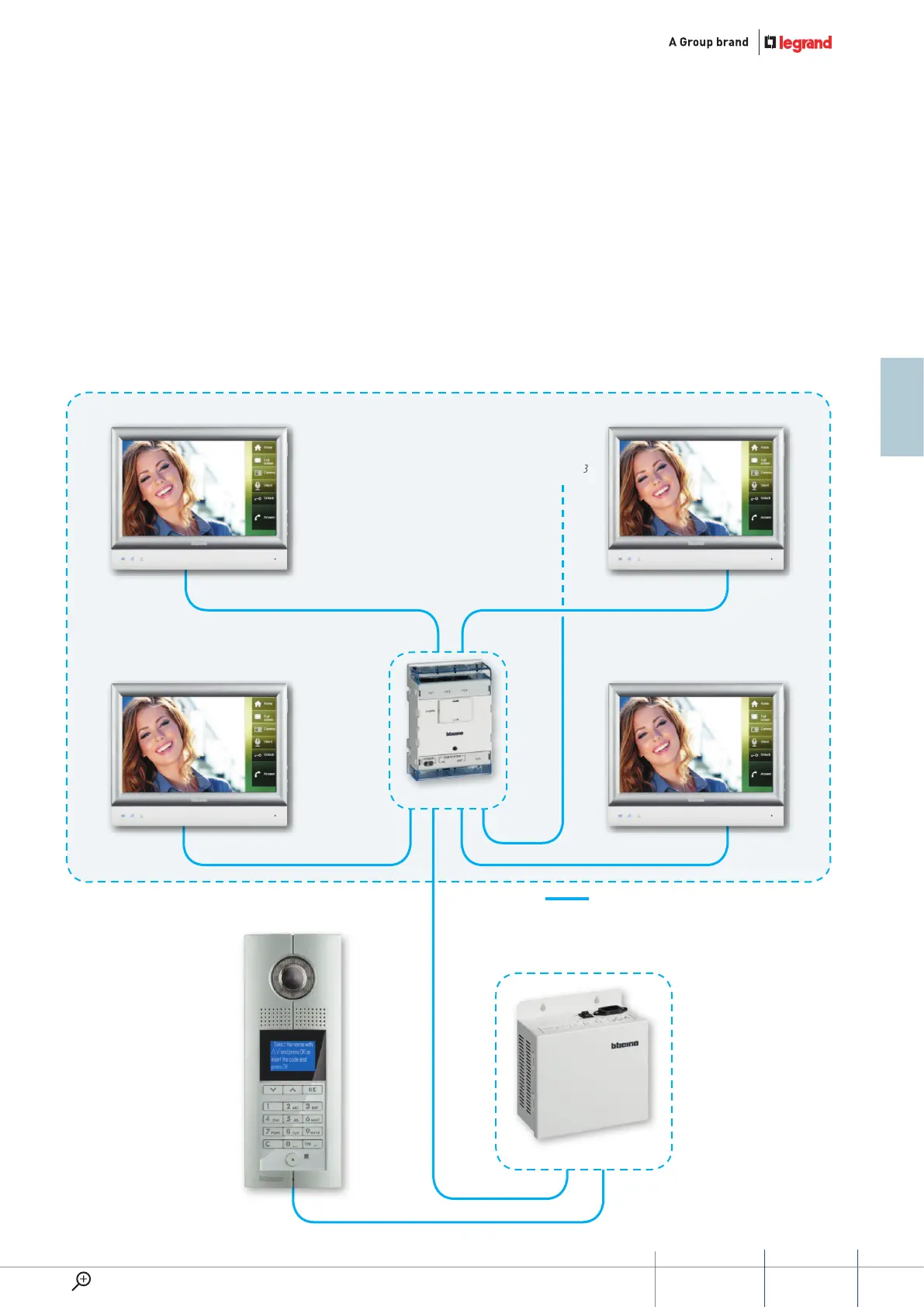

System composition
SINGLE BUILDING WITH ONE RISER
systems with several dwellings on
the same floor, and to multifamily
systems where maximum distance
between entrance panel and
internal units is required.
The floor shunt provides star
connection of up to 4 apartments.
Entrance panel
Connections with RJ45 – Cat 5E/6 cable
Power supply 323005
FLOOR 1
Apartment 1
Apartment 2
Apartment 4
Apartment 3
To floor
shunt 323003
Floor shunt 323002
Riser
13
GUIDED45 SyStEm
www.lEgranD.com
