LEGRAND D45 SYSTEM User Manual

Pack Cat.Nos
System accessories (continued)
IP management switchboard software
1
BT-323012
Integrated IP management software provides the
communication for calls between internal units
and the switchboard
District generator
1
BT-323013
District hub to be connected to 4 riser shunts
(Cat.No BT-323003), one street panel, one
switchboard and one system power supply
Enables a large network to be created
Controls and changes video channels
Provides amplifying compensation for video
signals
DIN rail installation
Door lock accessory
1
BT-323015
Operates electric door locks, particularly the
commonly used 12 V cathode locks
When the opening current of an anode lock is over
1 A, this device is also required to operate anode
locks
It is generally connected to the street panel to
obtain the door lock release control signal
Possible to open door locks by means of external
manual switches
Selection of the type of electric door lock release
via the jumper configuration line
DIN rail installation
House shunt
1
BT-323016
Distributes video, audio and data signals from
the BUS to the floor shunt (Cat.No BT-323002)
connected to it, so that the signals from the BUS
unit can reach the maximum distance of 200
metres, to meet specific domestic requirements
To be installed in the low voltage subscriber unit
in the house
DIN rail installation
Accessory for additional camera
1
BT-323021
Interface that permits to integrate additional
camera to the system
The image from the camera can be visualized by
all the internal units of the system
Additional camera accessory increases security
level of the system giving the possibility to
monitor public area (ex. garden, swimming pool,
parking)
4 additional cameras max. per accessory
Compatible with coaxial camera 12V
Pack Cat.Nos
System accessories (continued)
Lift control interface
1
BT-323017
For integrating the D45 system with the elevator
system
Possibility to manage the elevator directly from
the internal unit
Entrance panel/Switchboard shunt
1
BT-323018
Used to connect the entrance panel and the
switchboard to the system
The device automatically switches over the video
channels
DIN rail installation
System expansion interface
1
BT-323019
Extends the riser system when the number of
internal units installed on the riser exceeds the
limit of 400
The interface can increase this limit to 800
handsets
This device is also used to adjust the video gains
and improve video transmission quality
DIN rail installation
Configuration tool
1
BT-323020
Configuration kit consisting of:
- SF2 configuration software
- Tool interface
- Serial extension cable
- Flat cable
Small street panel video mixer
1
BT-323023
Interface for the installation of several small
street panels for each internal unit or for each
apartment
Permits to install 4 small street panels
By using more than one accessory in series, it’s
possible to install more than 4 street panels
D45 to BTicino 2-wire interface
1
BT-346858
Switch-over interface to install the BTicino
2-wire door entry system inside the apartment
DIN rail installation

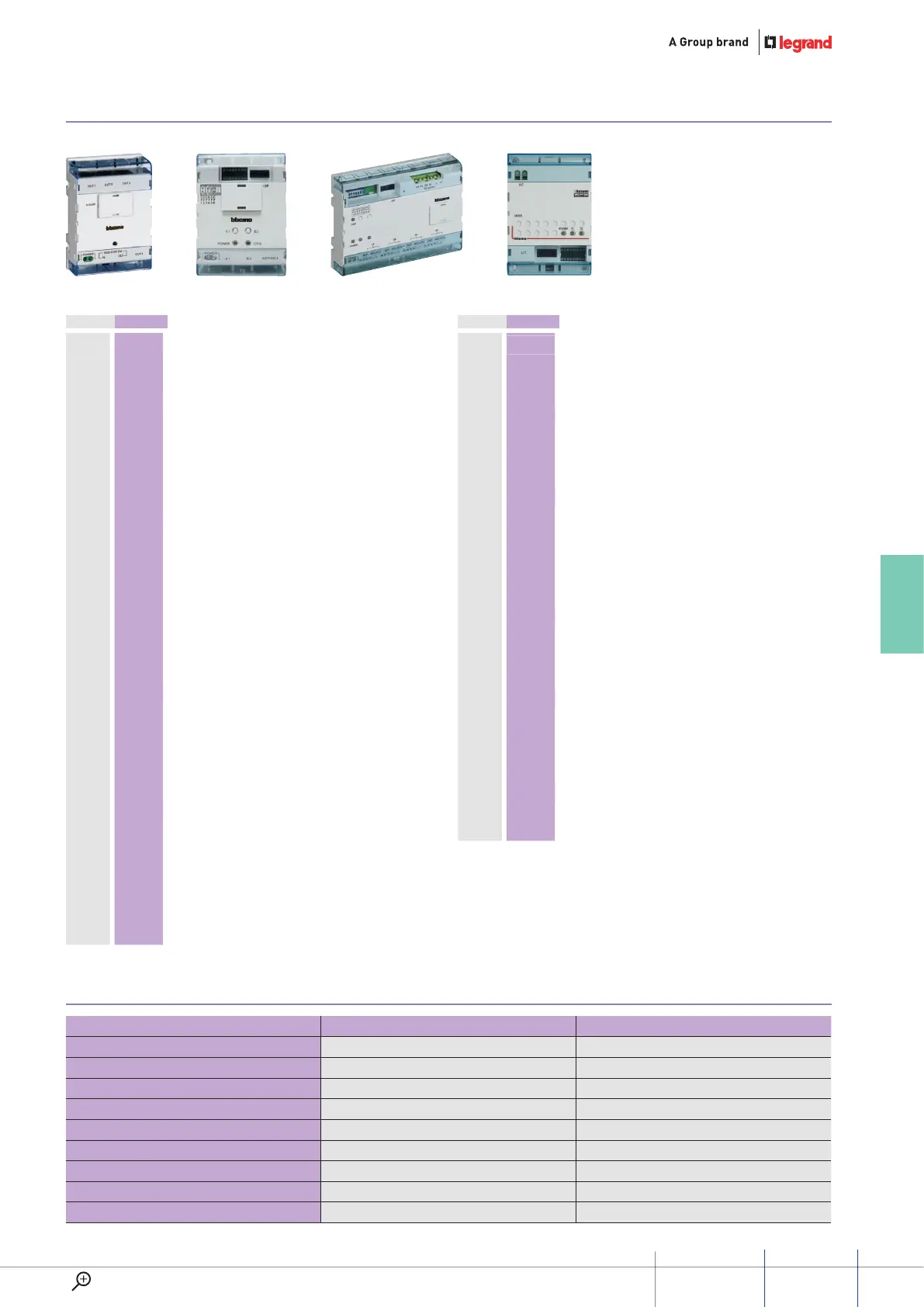

D45 System
system accessories (continued)
BT-323016 BT-323018
BT-346858
BT-323023
MODEL NAME CODE NUMBER DIMENSIONS (MM)
Distric generator 323013 175 x 105 x 66
Door lock accessory 323015 72 x 105 x 33
House shunt 323016 72 x 105 x 33
Lift control interface module 323017 141 x 105 x 33
EP/Switchboard shunt 323018 72 x 105 x 33
System expansion interface 323019 106 x 105 x 33
Configuration tool kit 323020 48 x 48
SEP video mixer 323023 141 x 105 x 33
D45/2-wire interface 346858 72 x 105 x 33
Dimensional data
113
GUIDED45 SyStEm
WWW.LEGRAND.COM
