LEGRAND D45 SYSTEM User Manual

GENERAL RULES FOR INSTALLATION

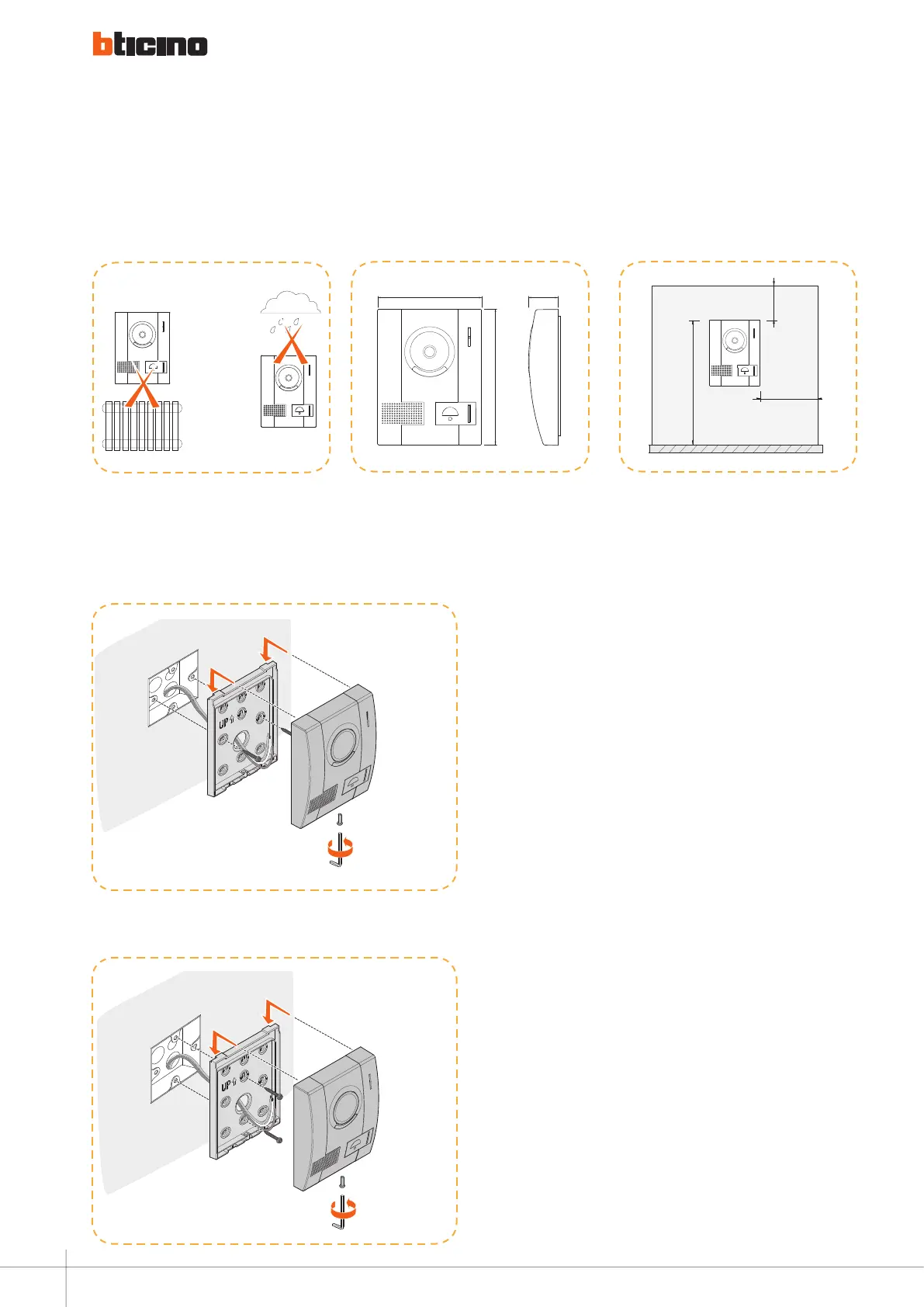

Small entrance panel installation
322020 insTallaTion meThod
Installation method 1
Installation method 2
do noT insTall in hoT or damp places
Installation instruction:
1. Fix the base to the flush mounted box using the
horizontal holes;
2. connect the cable to EP clamps and fit the cover to the
body using the two grooves on the top;
3. secure the cover in position;
4. tighten up the bottom screw.
Installation instructions:
1. Fix the base to the flush mounted box using the
vertical holes;
2. connect the cable to EP clamps and fit the cover to the
body using the two grooves on the top;
3. secure the cover in position;
4. tighten up the bottom screw.
Don’t install in hot or damp places Size overview Installation height and position
141 mm
30 mm108 mm
> 1.00 m
≥1.60 m
> 1.00 m
38
