Entrance panel installation
322010, 322011, 322030, 322032, insTallaTion meThod
Don’t install in hot or damp places

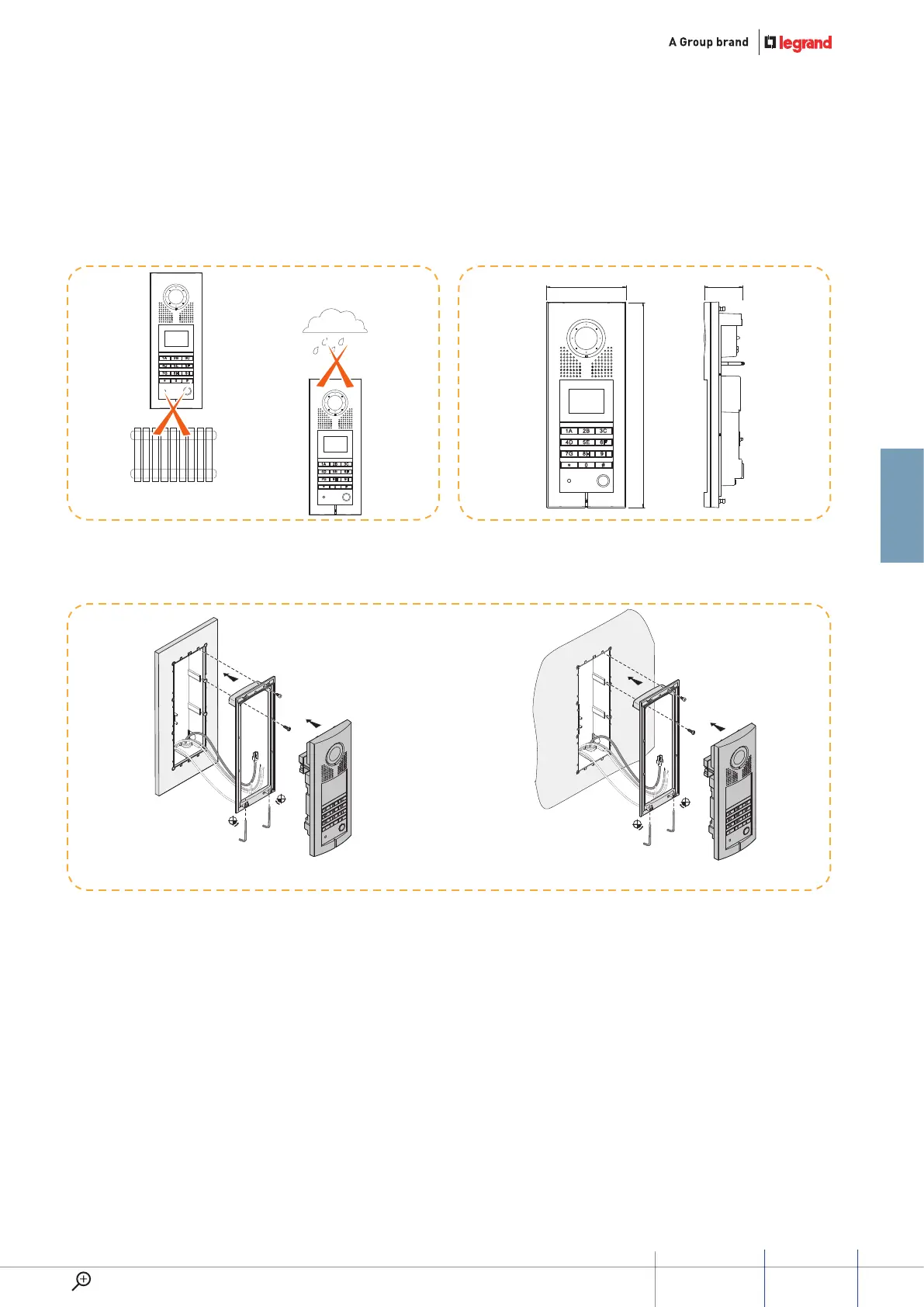

Size overview
Note: the flush mounted box must be ordered separately.
Install the EP on the door
Install the EP on the wall
1/4
1/4
Flush mounted box
Rack
Screw
Flush mounted box
Rack
Screw
1/4
1/4
325 mm
125 mm
60.5 mm
37
GUIDED45 SyStEm
WWW.LEGRAND.COM
