5-4 Maintenance
5.3 Covers and Doors
5.3.1 Lower Arm Cover
5.3.1.1 Remove the Lower Arm Cover

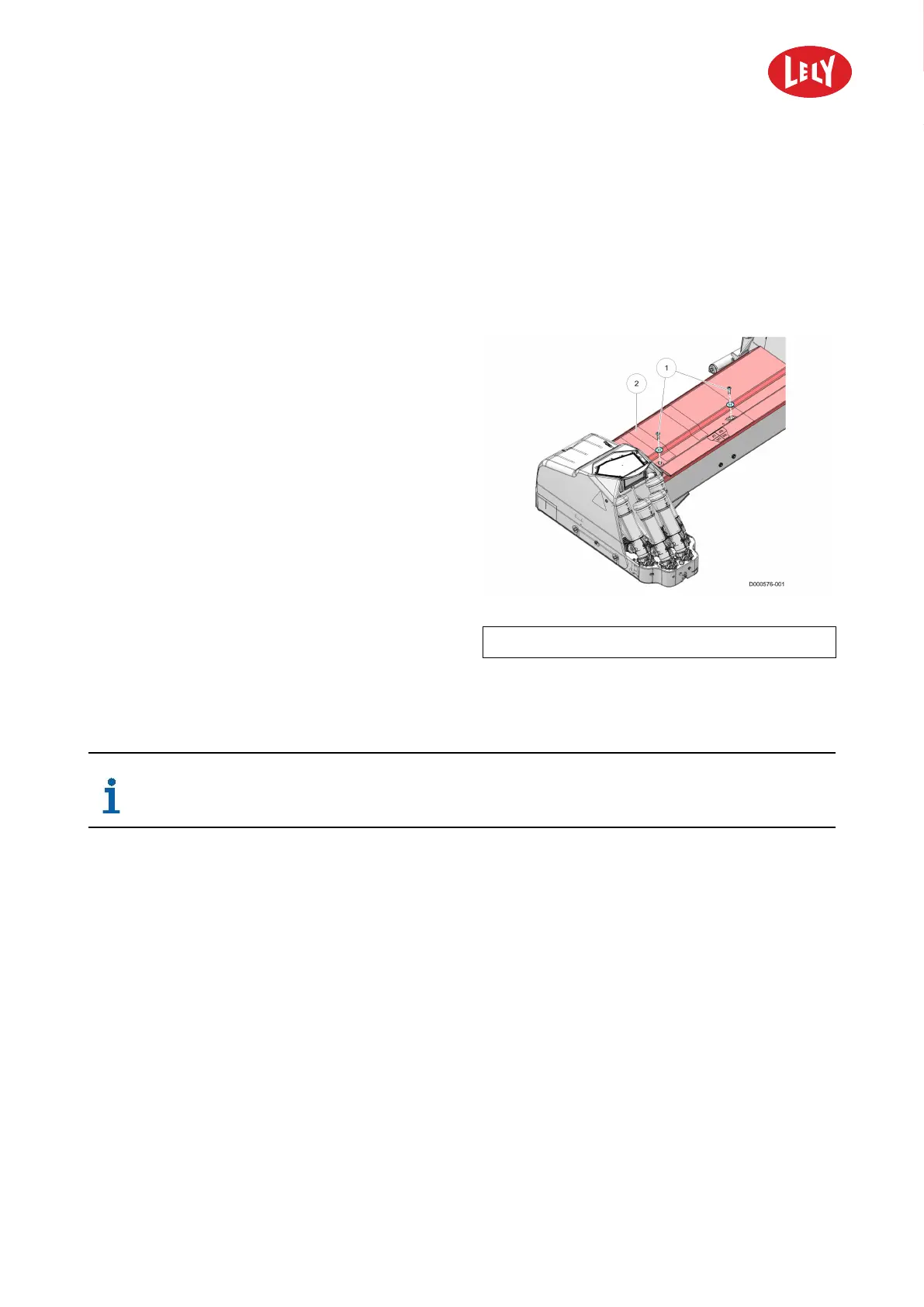

Figure 20. Lower arm cover
KEY: 1. Screws and watertight washers - 2. Cover
1. Remove the screws and watertight washers (1).
2. Remove the cover (2).
5.3.1.2 Install the Lower Arm Cover
Make sure the tubes and cables are in the correct position.
1. Install the cover (2) (see figure 20 on page 5-4).
2. Install the watertight washers and screws (1).
5.3.2 Mothership Cover
5.3.2.1 Remove the Mothership Cover
1. Remove the Lower Arm Cover (see page 5-4).
