DC−bus operation
DC−bus variants
Supply with one power supply module
7
l
112
EDS700ACBA EN 5.1
7.3 DC−bus variants

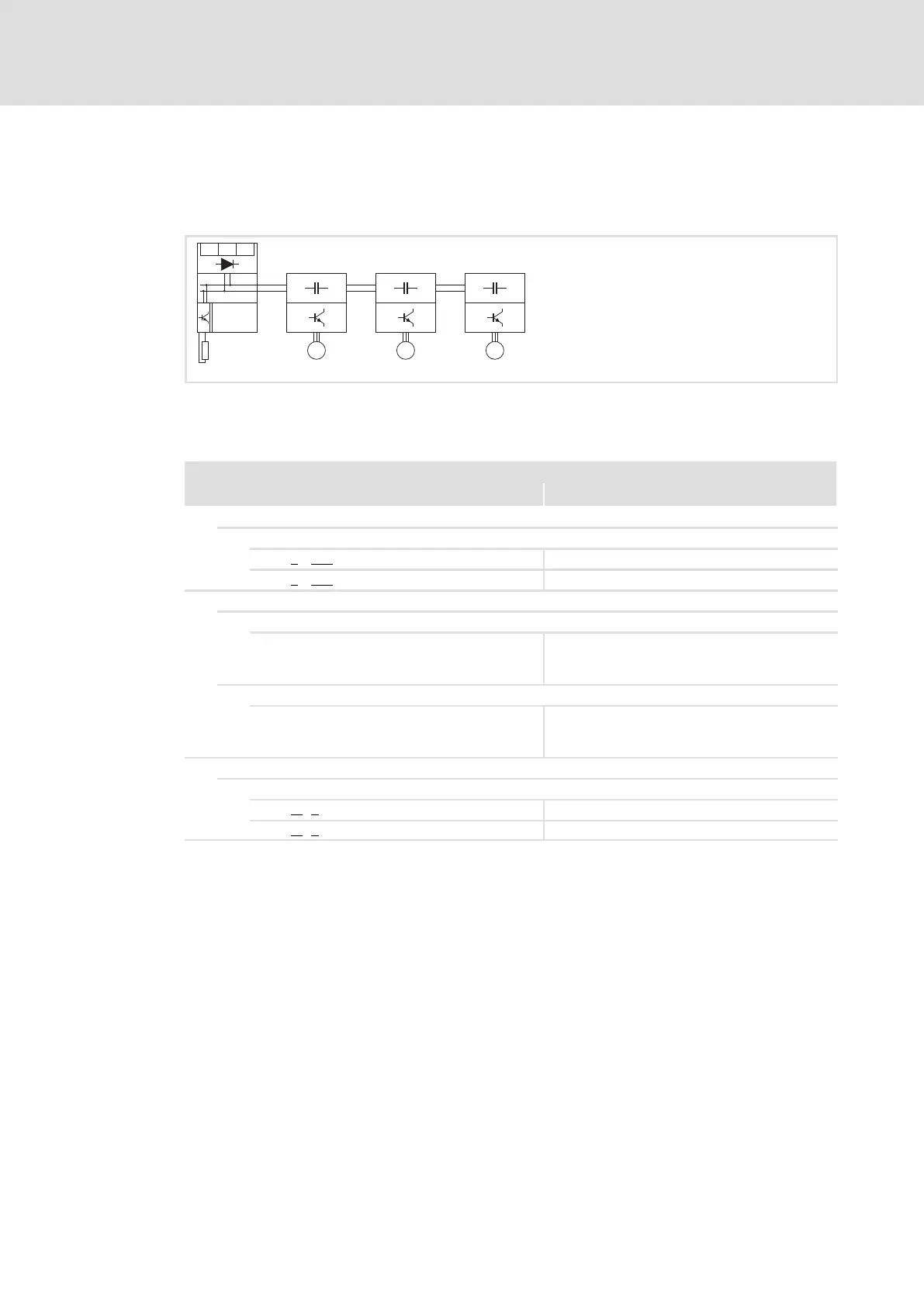

7.3.1 Supply with one power supply module
L2L1
L3
MMM
i700ARPRx
A DC supply module with direct AC mains connection supplies energy into the DC bus of
several controllers. The DC supply module is equipped with an integrated brake chopper to
which you can connect a brake resistor.
Components to be used
i700 device series Other device series
DC supply
Power supply modules
E70ACPSx0304x (30 A) −
E70ACPSx0604x (60 A) −
Filter
RFI filters
− E94AZRP0084
E94AZRP0294
E94AZRP0824
Mains filters
− E94AZMP0084
E94AZMP0294
E94AZMP0824
Interconnected device
Controllers
E70ACM...1... (single axis) −
E70ACM...2... (double axis) −
