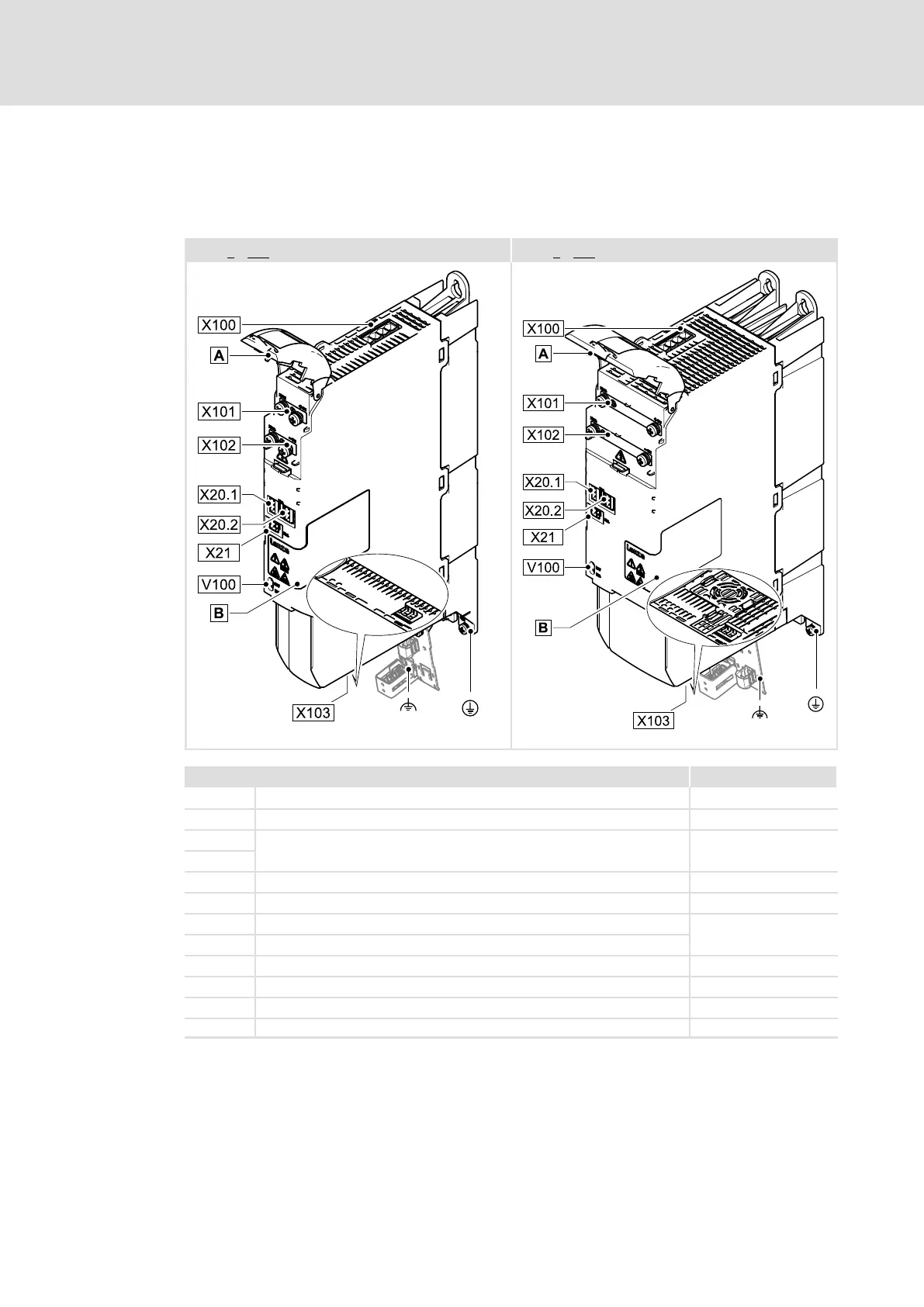

4.4 Terminal description
4.4.1 Supply modules
E70ACPSE0304x E70ACPSE0604x
i700P001 i700P006
Connections and elements Info
0 Hinged cover of DC−bus connections ^ 49
1 Nameplate and warning symbols ^ 24
X20.1
Digital inputs, digital outputs ^ 47
X20.2
X21 External 24−V supply ^ 46
X100 Mains connection ^ 48
X101 DC−bus UG+
^ 49
X102 DC−bus UG−
X103 Connection of brake resistor ^ 50
V100 LED status display ^ 127
+ PE conductor ^ 103
" Shield connection (functional earth) ^ 103
