Mechanical installation
Dimensions
Assembly in standard built−in technique
5
l
69
EDS700ACBA EN 5.1

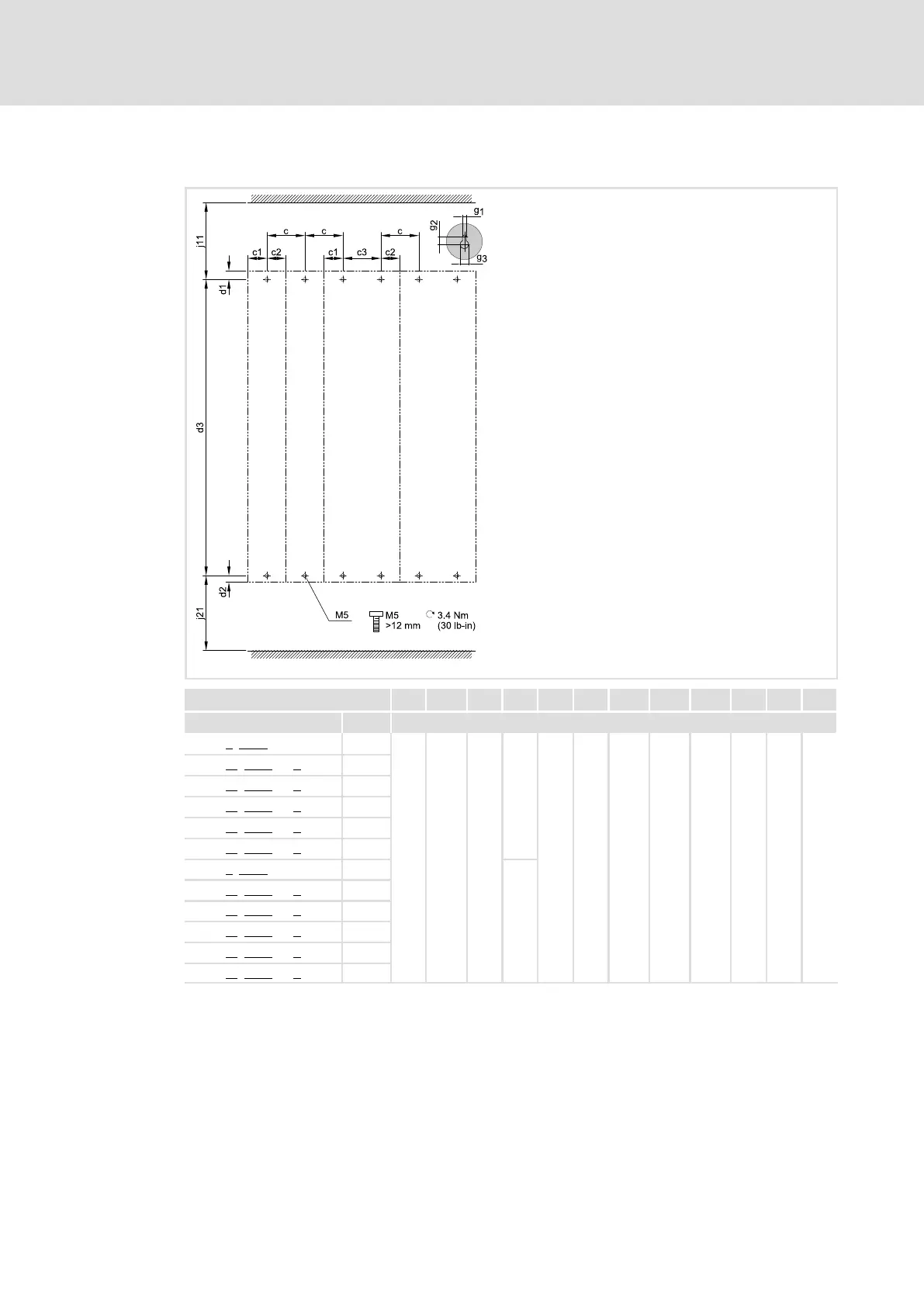

5.3.2 Assembly in standard built−in technique
i700S00x
c c1 c2 c3 d1 d2 d3 j11 j21 g1 g2 g3
[A] [mm]
E70ACPSE0304x 30
50 25 25
−
10 10 390 70 90 6 10 15
E70ACMxE0054xx1xxx 5
E70ACMxE0104xx1xxx 10
E70ACMxE0204xx1xxx 20
E70ACMxE0054xx2xxx 2*5
E70ACMxE0104xx2xxx 2*10
E70ACPSE0604x 60
50
E70ACMxE0324xx1xxx 32
E70ACMxE0484xx1xxx 48
E70ACMxE0644xx1xxx 64
E70ACMxE0204xx2xxx 2*20
E70ACMxE0324xx2xxx 2*32
