Mechanical installation
Dimensions
Devices with standard built−in design
5
l
68
EDS700ACBA EN 5.1
5.3 Dimensions
5.3.1 Devices with standard built−in design

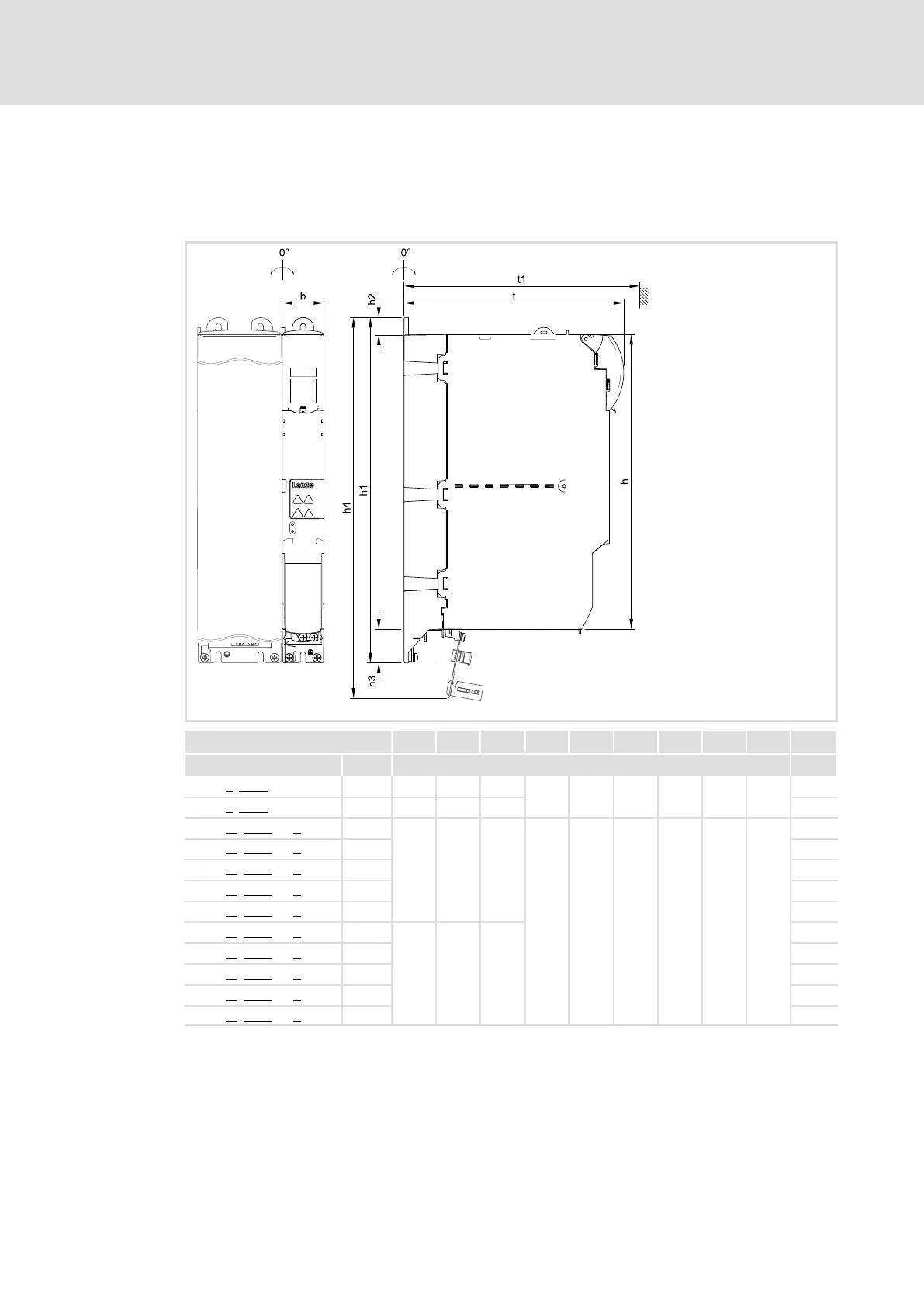

i700P011 a
h b t h1 h2 h3 h4 t1 t2
[A] [mm] [kg]
E70ACPSE0304x 30 350 50 261
410 20 40 452 275 −
2.5
E70ACPSE0604x 60 350 100 261 5.3
E70ACMxE0054xx1xxx 5
350 50 261
410 20 40 452 275 −
2.7
E70ACMxE0104xx1xxx 10 2.7
E70ACMxE0204xx1xxx 20 2.7
E70ACMxE0054xx2xxx 2 * 5 2.9
E70ACMxE0104xx2xxx 2 * 10 2.9
E70ACMxE0324xx1xxx 32
350 100 261
5.2
E70ACMxE0484xx1xxx 48 5.2
E70ACMxE0644xx1xxx 64 5.2
E70ACMxE0204xx2xxx 2 * 20 5.2
E70ACMxE0324xx2xxx 2 * 32 5.2
