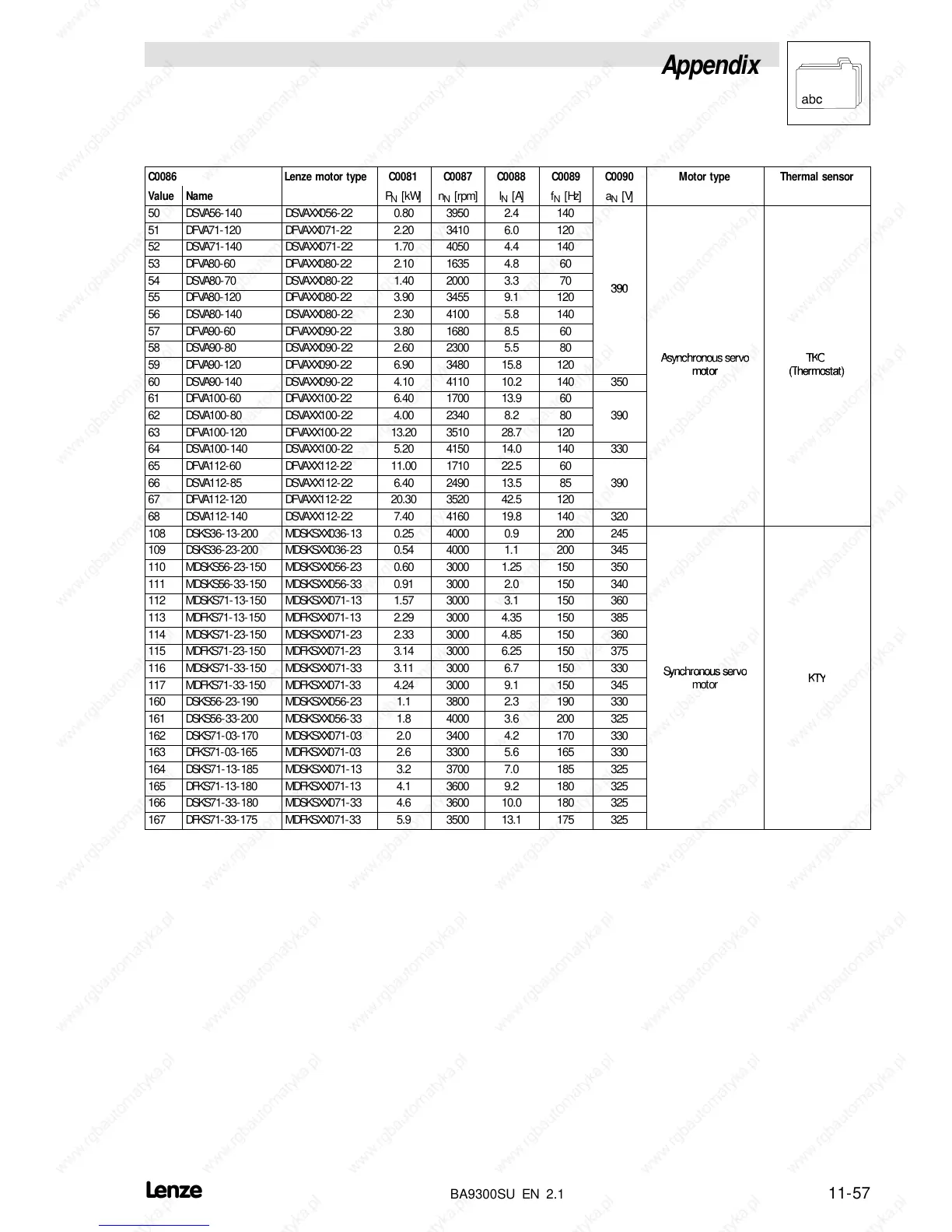

C0086 Thermal sensorMotor typeC0090C0089C0088C0087C0081Lenze motor type
Value a
N
[V]f
N
[Hz]I
N
[A]n
N
[rpm]P
N
[kW]Name
50 DSVA56-140 DSVAXX056-22 0.80 3950 2.4 140
51 DFVA71-120 DFVAXX071-22 2.20 3410 6.0 120
52 DSVA71-140 DSVAXX071-22 1.70 4050 4.4 140
53 DFVA80-60 DFVAXX080-22 2.10 1635 4.8 60
54 DSVA80-70 DSVAXX080-22 1.40 2000 3.3 70
3
9
0
55 DFVA80-120 DFVAXX080-22 3.90 3455 9.1 120
3
9
0
56 DSVA80-140 DSVAXX080-22 2.30 4100 5.8 140
57 DFVA90-60 DFVAXX090-22 3.80 1680 8.5 60
58 DSVA90-80 DSVAXX090-22 2.60 2300 5.5 80
A
s
y
n
c
h
r
o
n
o
s
s
e
r
v
o
T
K
O
59 DFVA90-120 DFVAXX090-22 6.90 3480 15.8 120
A
s
y
nch
r
o
n
o
us se
r
v
o
m
o
t
o
r
T
K
O
(
T
h
e
r
m
o
s
t
a
t
)
60 DSVA90-140 DSVAXX090-22 4.10 4110 10.2 140 350
m
o
t
o
r
(
T
h
e
r
m
o
s
t
a
t
)
61 DFVA100-60 DFVAXX100-22 6.40 1700 13.9 60
62 DSVA100-80 DSVAXX100-22 4.00 2340 8.2 80 390
63 DFVA100-120 DFVAXX100-22 13.20 3510 28.7 120
3
9
0
64 DSVA100-140 DSVAXX100-22 5.20 4150 14.0 140 330
65 DFVA112-60 DFVAXX112-22 11.00 1710 22.5 60
66 DSVA112-85 DSVAXX112-22 6.40 2490 13.5 85 390
67 DFVA112-120 DFVAXX112-22 20.30 3520 42.5 120
3
9
0
68 DSVA112-140 DSVAXX112-22 7.40 4160 19.8 140 320
108 DSKS36-13-200 MDSKSXX036-13 0.25 4000 0.9 200 245
109 DSKS36-23-200 MDSKSXX036-23 0.54 4000 1.1 200 345
110 MDSKS56-23-150 MDSKSXX056-23 0.60 3000 1.25 150 350
111 MDSKS56-33-150 MDSKSXX056-33 0.91 3000 2.0 150 340
112 MDSKS71-13-150 MDSKSXX071-13 1.57 3000 3.1 150 360
113 MDFKS71-13-150 MDFKSXX071-13 2.29 3000 4.35 150 385
114 MDSKS71-23-150 MDSKSXX071-23 2.33 3000 4.85 150 360
115 MDFKS71-23-150 MDFKSXX071-23 3.14 3000 6.25 150 375
116 MDSKS71-33-150 MDSKSXX071-33 3.11 3000 6.7 150 330
S
y
nch
r
o
n
o
us se
r
v
o
K
T
Y
117 MDFKS71-33-150 MDFKSXX071-33 4.24 3000 9.1 150 345
S
y
n
c
h
r
o
n
o
u
s
s
e
r
v
o
motor
K
T
Y
160 DSKS56-23-190 MDSKSXX056-23 1.1 3800 2.3 190 330
161 DSKS56-33-200 MDSKSXX056-33 1.8 4000 3.6 200 325
162 DSKS71-03-170 MDSKSXX071-03 2.0 3400 4.2 170 330
163 DFKS71-03-165 MDFKSXX071-03 2.6 3300 5.6 165 330
164 DSKS71-13-185 MDSKSXX071-13 3.2 3700 7.0 185 325
165 DFKS71-13-180 MDFKSXX071-13 4.1 3600 9.2 180 325
166 DSKS71-33-180 MDSKSXX071-33 4.6 3600 10.0 180 325
167 DFKS71-33-175 MDFKSXX071-33 5.9 3500 13.1 175 325
